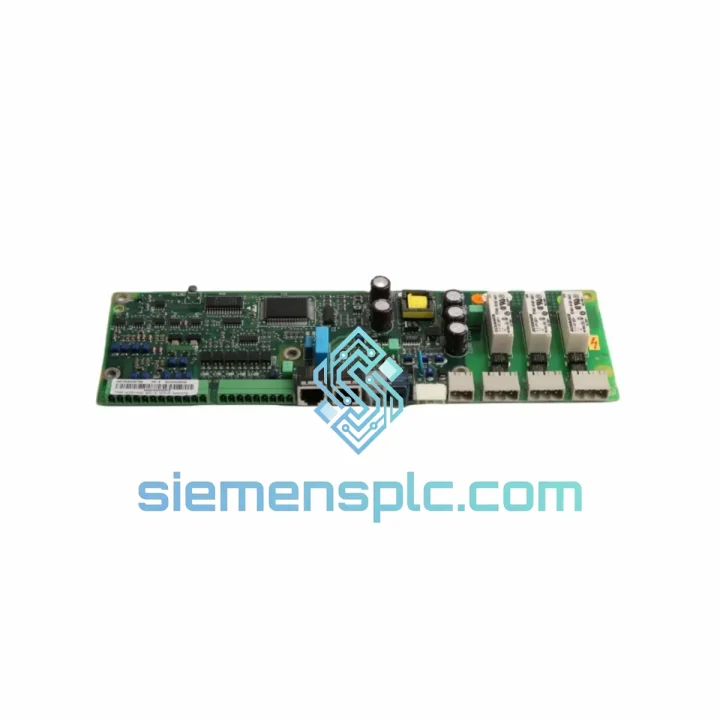

ABB NIOC-01C 3BSE009858R1 Drive I/O Module – ACS800 Series

ABB NIOC-01C 3BSE009858R1 — Signal Routing and Control Logic Interface for ACS800 AC Drive Systems

The NIOC-01C, catalogued under ABB part number 3BSE009858R1, is the dedicated I/O control interface board for the ACS800 series of industrial AC drives. Its function within the drive architecture is not peripheral — it occupies the critical junction between field-level signal conditioning and the drive’s core DSP processing chain. Every digital input from a proximity sensor, every analog speed reference from a DCS, and every relay output to a motor protection circuit passes through this board before the drive’s control firmware acts on it. Failure of this board does not degrade drive performance gradually; it typically results in a complete loss of control authority, making rapid, like-for-like replacement the only viable path to restoring production continuity.

Procurement engineers and maintenance planners managing ACS800 fleets in process-critical environments — pulp and paper, oil and gas, marine propulsion, steel rolling, water treatment — recognize the NIOC-01C as a board-level repair strategy that avoids the capital expenditure and extended lead times associated with full drive replacement. A verified OEM board swap reduces mean time to repair by a measurable margin compared to sourcing a complete drive unit.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NIOC-01C is positioned on the ACS800 control section backplane, where it interfaces with two primary internal nodes: the RMIO (Redundant Main I/O board) and the AINT (inverter control board). Communication between these nodes traverses the DDCS (Distributed Drives Communication System) fiber-optic ring, a topology ABB adopted specifically to eliminate ground-loop interference and galvanic coupling between the high-voltage power section and the low-voltage control logic. The fiber medium provides inherent galvanic isolation with a common-mode rejection ratio that no copper-based bus can match in a high-dV/dt inverter environment.

The analog input front-end on the NIOC-01C employs differential signal acquisition with on-board instrumentation amplifiers. This architecture rejects common-mode noise injected by long cable runs in industrial conduit — a practical necessity in installations where signal cables share trays with motor power cables generating transient fields in excess of 10 kV/μs. The ±0.1% linearity specification is maintained across the full 0 °C to 55 °C operating band through temperature-compensated reference circuits, not through software correction, which means the accuracy is preserved even during firmware updates or parameter resets.

The digital I/O section uses opto-coupler isolation on all input channels. Each opto-coupler stage provides a minimum isolation voltage of 500 V RMS between the field wiring and the board’s logic ground, protecting the control DSP from transients generated by inductive loads — contactors, solenoid valves, and relay coils — switching on the same 24 VDC field supply. The relay output channels are rated for resistive and inductive loads, with arc suppression networks integrated at the board level to extend contact life in high-cycle applications.

The board also hosts the drive’s parameter memory interface. In the ACS800 architecture, drive configuration data — motor nameplate parameters, control macro settings, PID tuning values — is stored in non-volatile memory accessible through the NIOC-01C. This makes the board’s integrity critical not only to signal routing but to drive identity. A board failure that corrupts this memory requires a full parameter re-commissioning cycle, underscoring the value of sourcing a verified OEM replacement rather than an unvetted aftermarket substitute.

EMC compliance is achieved through a combination of board-level filtering and chassis grounding discipline. Ferrite beads on I/O signal lines suppress high-frequency conducted emissions, while the board’s ground plane layout follows a star-topology return path to minimize circulating currents that would otherwise manifest as measurement offsets on the analog channels. The conformal coating (acrylic, IPC-CC-830) provides a secondary barrier against humidity and particulate contamination, extending board service life in environments where the drive enclosure IP rating is periodically compromised during maintenance access.

System Integration Benefits

• Drop-in OEM Replacement: The NIOC-01C 3BSE009858R1 is a direct board-level substitute for failed units in ACS800 single-drive configurations. No firmware re-flashing is required in standard installations; the drive’s RMIO retains all parameter data independently.
• Deterministic Control Loop Timing: The DDCS fiber-optic backplane delivers fixed-latency communication between the NIOC-01C and the inverter control board, ensuring that speed reference updates and torque commands are executed within the drive’s defined control cycle period — typically 250 μs for the ACS800 DTC (Direct Torque Control) algorithm.
• Diagnostic Transparency: The board supports ABB’s fault word architecture, exposing granular fault codes (e.g., AI under-range, DO overload, communication timeout) that are readable via the drive’s control panel or DriveWindow PC tool, enabling root-cause isolation without oscilloscope-level investigation.
• Reduced Capital Expenditure: Board-level replacement costs a fraction of a complete ACS800 drive unit. For fleet operators managing 20+ drives, maintaining a NIOC-01C spare reduces the capital tied up in drive-level spares inventory.
• Minimized Unplanned Downtime: With a verified board in stock, the physical swap procedure on an ACS800 is achievable within a single maintenance shift. Full drive replacement, by contrast, involves mechanical de-installation, cable re-termination, and recommissioning — a multi-day process in most plant environments.
• Analog Signal Fidelity: The ±0.1% linearity across the full temperature range ensures that speed and torque references from the DCS or PLC are reproduced at the drive with the accuracy required for closed-loop process control — critical in applications such as paper machine section drives or extruder speed synchronization.
• Field Wiring Compatibility: The board’s terminal block layout and connector pinout are identical to the original, eliminating the need to re-label or re-route field wiring during replacement. This reduces the risk of wiring errors that could cause motor damage or process upsets during recommissioning.
• Long-term Platform Support: The ACS800 platform has an extended service life in many installed bases. Sourcing OEM-specification NIOC-01C boards from a verified supplier extends the operational life of existing drive assets without requiring a platform migration project.

Quality Assurance & Global Logistics

Every NIOC-01C 3BSE009858R1 unit dispatched from our Xiamen facility undergoes a structured pre-shipment inspection protocol. Visual examination covers component integrity, solder joint condition under magnification, connector pin alignment, and conformal coating continuity. Units sourced from decommissioned OEM installations are accompanied by traceability documentation — batch records and inspection reports — available upon request for quality-system compliance purposes.

Packaging follows ESD-safe handling standards: each board is sealed in a static-shielding bag with a humidity indicator card, placed in foam-lined rigid packaging rated for international air freight handling. This packaging specification is not cosmetic — it is the minimum standard required to prevent latent ESD damage that would not manifest until the board is under thermal and electrical stress in service.

Shipment from Xiamen, China is executed via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. EXW Xiamen and CIF destination terms are both available for B2B orders. Export documentation — commercial invoice, packing list, certificate of origin — is prepared to customs clearance standards for all major import jurisdictions. HS code 8537.10 is pre-declared on all shipments. The 12-month warranty covers manufacturing defects and verified functional failures; warranty claims are processed with a replacement-first policy to minimize customer downtime.
