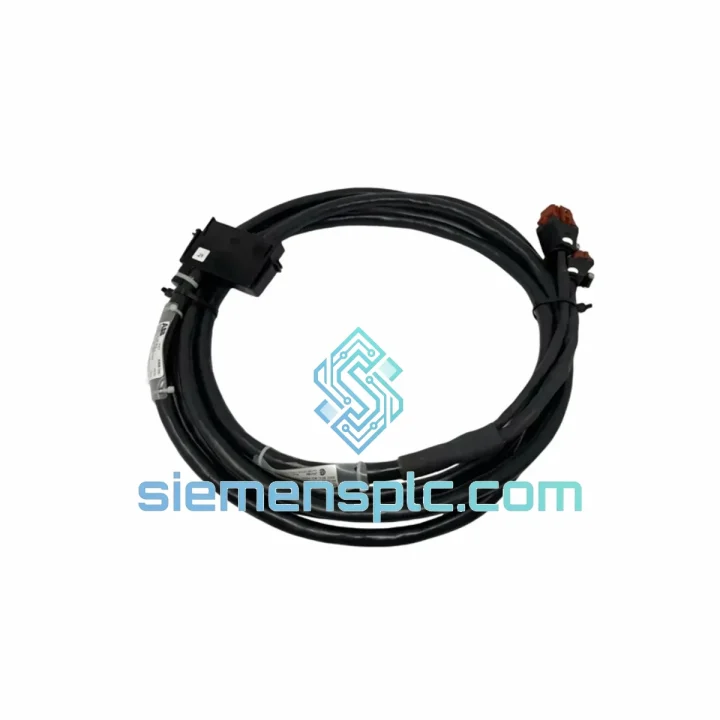

ABB NKHS03-15 Servo Termination Cable – NKHS Series

ABB NKHS03-15 – Hydraulic Servo Termination Cable Assembly for Closed-Loop Drive Architectures

The ABB NKHS03-15 is a factory-assembled servo termination cable engineered for signal-critical interconnection between ABB servo drive controllers and hydraulic actuator feedback transducers. Within a closed-loop hydraulic servo system, the integrity of the feedback path directly governs position accuracy, velocity stability, and loop bandwidth. A degraded or improperly terminated cable introduces phase lag, ground noise, and impedance discontinuities that manifest as oscillation, position drift, or drive fault conditions. The NKHS03-15 eliminates these failure modes through OEM-specified construction: matched impedance conductors, multi-layer shielding, and pre-terminated connectors factory-verified against ABB drive interface pinouts.

Unlike field-fabricated cable assemblies, the NKHS03-15 is manufactured under ABB’s production quality system, with conductor cross-sections, insulation dielectric constants, and shield termination geometry controlled to tolerances that preserve signal fidelity across the full operating bandwidth of the servo loop. This is particularly relevant in hydraulic servo applications where valve spool positioning demands sub-millisecond command-to-response latency and resolver or encoder feedback signals must be transmitted without amplitude attenuation or phase distortion.

The cable is rated for dynamic flexing applications, making it suitable for installation in cable carriers and drag chains where repeated bending cycles would fatigue standard instrumentation cable. The outer jacket material provides resistance to hydraulic fluid contamination, a common environmental stressor in press, injection molding, and steel processing installations. Connector housings are mechanically keyed to prevent mis-mating during maintenance, reducing the risk of polarity reversal or pin damage during field replacement.

For procurement engineers sourcing MRO replacements or project-phase BOM components, the NKHS03-15 is the direct OEM part number for ABB NKHS-series hydraulic servo platforms. Substituting with non-OEM assemblies risks voiding drive warranty coverage and introduces unquantified impedance variables into the feedback loop. siemensplc.com supplies this component as genuine ABB stock, with full part number traceability and pre-shipment inspection from our Xiamen, China warehouse. Global DHL/FedEx express dispatch is available for urgent MRO requirements.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NKHS03-15 operates at the physical layer of the servo control loop, where its electrical characteristics directly influence closed-loop stability margins. Three hardware design aspects are particularly relevant to system engineers:

EMC Shield Architecture: The cable employs a dual-layer shielding scheme — an inner foil shield covering the signal pair and an outer braided shield providing mechanical protection and low-impedance ground return. The braid coverage density (typically ≥85% in ABB servo cable specifications) ensures that high-frequency noise components from adjacent power conductors, VFD switching transients, and solenoid valve coil switching are attenuated before reaching the drive’s differential input stage. Shield termination at both ends via 360° clamp connectors eliminates the pigtail inductance that degrades HF shielding effectiveness above 1 MHz — a critical consideration in servo systems where encoder signal frequencies can reach several hundred kHz.

Impedance Matching and Signal Integrity: Resolver and incremental encoder signals are sensitive to characteristic impedance discontinuities along the cable run. The NKHS03-15’s conductor geometry and dielectric are controlled to maintain consistent characteristic impedance, preventing reflections that would corrupt zero-crossing detection in resolver-to-digital converter (RDC) circuits. In hydraulic servo applications with long cable runs between the drive cabinet and the valve manifold, this impedance control is the primary mechanism preventing position feedback errors at high traverse velocities.

Dynamic Flex Fatigue Resistance: Hydraulic servo installations frequently require cable routing through articulated cable carriers. The NKHS03-15’s stranded conductor construction (fine-wire stranding per ABB specification) distributes bending stress across individual wire strands, extending fatigue life compared to solid or coarse-stranded conductors. The jacket compound is selected for low-temperature flexibility, maintaining bend radius compliance in cold ambient conditions without conductor work-hardening.

System Integration Benefits

• Zero-Configuration Installation: Pre-terminated OEM connectors mate directly to ABB NKHS-series drive and actuator interfaces without field crimping, eliminating wiring errors that cause drive fault codes at commissioning.
• Preserved Loop Bandwidth: Controlled impedance and low-capacitance construction maintain the phase margin of the velocity and position loops, supporting servo bandwidths up to the drive’s rated closed-loop frequency without cable-induced phase lag.
• Deterministic Feedback Latency: Signal propagation delay through the cable is fixed and quantifiable, allowing control engineers to account for transport delay in loop tuning without empirical cable characterization.
• Reduced EMI-Induced Faults: Multi-layer shielding suppresses common-mode noise injection into the feedback path, reducing nuisance drive trips caused by encoder signal corruption in high-EMI environments (adjacent VFDs, contactors, solenoid valves).
• Diagnostic Transparency: Consistent electrical characteristics mean that any change in feedback signal quality (detectable via drive oscilloscope or diagnostic tools) is attributable to a genuine system fault rather than cable variability, improving fault isolation speed.
• MRO Interchangeability: Direct OEM part number replacement ensures that maintenance-phase cable swaps restore the system to its original validated electrical state, avoiding re-commissioning and loop re-tuning after replacement.
• Fluid Contamination Resistance: Oil-resistant jacket material prevents jacket swelling and conductor insulation degradation in hydraulic press and injection molding environments where hydraulic fluid mist or splash is unavoidable.
• Mechanical Keying for Maintenance Safety: Connector keying prevents reverse-polarity connection during field replacement under time pressure, protecting drive input circuits from damage caused by mis-mating during emergency maintenance.

Quality Assurance & Global Logistics

Every NKHS03-15 unit supplied by siemensplc.com is sourced as genuine ABB OEM stock through verified industrial supply channels. Pre-shipment inspection includes part number label verification, connector integrity check, and packaging condition assessment. Units are dispatched from our Xiamen, China warehouse, with access to DHL Express, FedEx International Priority, and UCP freight services for time-critical MRO requirements. Standard in-stock orders are processed within 1–2 business days. For project procurement requiring documentation packages — including packing lists, CE declarations, and country-of-origin certificates — these are prepared upon request at no additional charge. The 12-month warranty covers manufacturing defects and is supported by our technical team for application troubleshooting and compatibility verification.
