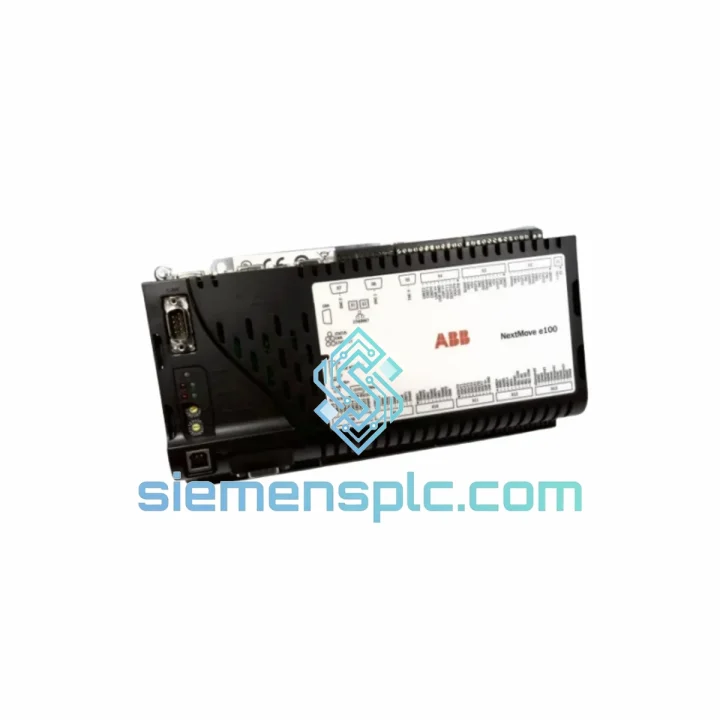

ABB NXE100-1608DBW Motion Controller – ACS880 Series

ABB NXE100-1608DBW: 16-Axis Motion Controller for ACS880 Industrial Drive Architecture

The ABB NXE100-1608DBW (reference part 3AXD50000032678) is a plug-in motion controller module engineered specifically for the ACS880 multi-drive platform. Within a coordinated drive system, this module occupies the role of a centralized motion sequencer — it arbitrates position, velocity, and torque references across up to 16 axes simultaneously, offloading real-time trajectory computation from the host PLC and reducing deterministic latency at the fieldbus layer. Its architecture is built around a dedicated motion DSP core that executes interpolation cycles independently of the drive’s main inverter control loop, ensuring that axis synchronization jitter remains below the threshold that would otherwise introduce mechanical resonance in precision machinery.

In multi-axis applications such as winding lines, gantry systems, and coordinated conveyor drives, the NXE100-1608DBW acts as the timing master. It generates synchronized reference frames distributed to each ACS880 drive unit via the DDCS (Distributed Drives Communication System) fiber-optic ring, achieving cycle times that are deterministic at the microsecond level. This is not a software-polled architecture — the hardware interrupt structure of the module guarantees that axis reference updates are not subject to OS scheduling delays, which is a critical distinction for applications where position error accumulation over time would cause product defects or mechanical damage.

The module’s physical interface is a direct plug-in slot on the ACS880 drive’s option board bay, requiring no external power supply or separate mounting rail. This integration approach eliminates the wiring harness between a standalone motion controller and individual drive units, reducing both panel footprint and potential failure points in the signal path. The fiber-optic DDCS ring topology further isolates the motion control network from conducted EMI generated by the inverter switching stages, a design decision that directly addresses one of the most persistent reliability challenges in high-power drive installations.

From a system architecture perspective, the NXE100-1608DBW supports both master-follower and electronic gearing configurations. In master-follower mode, one axis provides the reference encoder signal and the remaining axes track it with programmable gear ratios and phase offsets. In electronic gearing mode, the module computes cam profiles and executes them in hardware, enabling complex motion sequences — such as flying shear cuts or register mark synchronization in printing lines — without requiring the host PLC to manage individual axis timing. This separation of motion execution from PLC scan cycles is the primary reason the module is specified in applications where the PLC’s cycle time variability would otherwise be unacceptable.

The NXE100-1608DBW is compatible with the full ACS880 product family, including the ACS880-01 single drive, ACS880-04 cabinet drive, and ACS880-07 multi-drive modules. Firmware compatibility should be verified against the drive’s installed software version prior to commissioning, as ABB periodically releases motion library updates that extend axis count support and add new interpolation modes. Units supplied from our Xiamen warehouse are sourced from verified ABB distribution channels and carry the original ABB part label with traceable serial numbers.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NXE100-1608DBW’s internal architecture separates motion execution into two distinct processing domains. The first is the trajectory generation layer, handled by a dedicated floating-point DSP that computes position and velocity setpoints for each axis at the configured interpolation cycle rate. The second is the reference distribution layer, which packages these setpoints into DDCS frames and transmits them over the fiber-optic ring with hardware-timestamped synchronization. This two-layer separation means that a computational spike in trajectory generation — for example, during a complex cam profile transition — does not introduce jitter into the reference distribution timing, because the distribution layer operates from a hardware timer interrupt that is not preemptable by the DSP task scheduler.

The DDCS fiber-optic ring topology provides galvanic isolation between the motion controller and each drive unit. Plastic optical fiber (POF) at 660 nm wavelength is immune to conducted EMI from the inverter switching stages, which in high-power ACS880 installations can reach dV/dt values exceeding 5 kV/µs on the DC bus. This isolation is not merely a compliance measure — it directly prevents the common-mode noise injection that causes spurious encoder count errors in systems where motion control signals share a copper backplane with power electronics.

The module’s electronic gearing engine implements a hardware phase-locked loop (PLL) that tracks the master encoder signal and generates follower references with sub-microsecond phase resolution. Unlike software-based gearing implementations that are subject to PLC scan jitter, the hardware PLL maintains phase lock even during brief communication interruptions, using a velocity observer to extrapolate the master position during the gap. This prevents the position error spike that would otherwise occur when communication is restored, which is a known failure mode in systems using software-only gearing over standard fieldbus protocols.

EMC design on the NXE100-1608DBW follows ABB’s standard for option modules: the PCB ground plane is connected to the drive chassis through a low-impedance path at the option slot connector, providing a defined return path for high-frequency currents that would otherwise circulate through the signal ground. Decoupling capacitors are placed at the power supply pins of each IC, and the fiber-optic transceivers are shielded from the digital logic section by a ground pour that prevents radiated coupling between the high-speed serial data lines and the motion reference computation circuitry.

System Integration Benefits

• Deterministic axis synchronization: Hardware-timestamped DDCS frames ensure that all 16 axes receive their reference updates within the same 2 ms window, eliminating the accumulated phase error that occurs when axes are updated sequentially over a polled fieldbus.
• Reduced PLC scan load: By executing trajectory interpolation and electronic gearing in hardware, the module removes the most computationally intensive motion tasks from the PLC scan cycle, freeing PLC capacity for process logic and HMI communication.
• Fiber-optic EMI immunity: The DDCS ring’s optical medium eliminates conducted and radiated coupling between the motion control network and the inverter power stage, reducing the incidence of spurious axis faults in electrically noisy environments.
• Integrated diagnostic transparency: The module reports per-axis following error, communication cycle time, and DDCS ring status to the ACS880 drive’s diagnostic registers, making fault root-cause analysis accessible through the standard ABB Drive Composer tool without additional instrumentation.
• Seamless firmware ecosystem: As a native ACS880 option module, the NXE100-1608DBW participates in ABB’s unified firmware update process — motion library updates are applied through the same Drive Composer workflow used for drive parameter management, with no separate motion controller programming environment required.
• Electronic gearing without PLC dependency: Cam profiles and gear ratios are stored in the module’s non-volatile memory and executed autonomously. A PLC communication failure does not interrupt active motion sequences, improving system availability in applications where PLC restart time would otherwise cause production loss.
• Scalable axis count: The 16-axis capacity of the NXE100-1608DBW covers the majority of coordinated drive applications without requiring a second controller, reducing system cost and eliminating the inter-controller synchronization complexity that arises when axis counts exceed a single controller’s capacity.
• Direct compatibility with ABB safety functions: When used with ACS880 drives equipped with FSO-12 or FSO-21 safety option modules, the NXE100-1608DBW’s motion references are automatically suspended during safe torque off (STO) activation, ensuring that the motion controller does not generate references that conflict with the drive’s safety state machine.

Quality Assurance & Global Logistics

Every ABB NXE100-1608DBW unit dispatched from our Xiamen, China facility is sourced through verified ABB distribution channels. Original ABB part labels, holographic authenticity seals, and traceable serial numbers are present on all units. We retain sourcing documentation — including distributor invoices and certificates of conformity — for audit purposes, and provide these on request for customers with incoming inspection requirements.

Prior to shipment, each module undergoes a physical inspection covering label integrity, connector pin condition, housing authenticity against ABB OEM dimensional specifications, and seal verification. Units that do not pass inspection are quarantined and not offered for sale. A 12-month warranty from the date of shipment covers manufacturing defects and covers replacement or refund at our discretion.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. Full export documentation — commercial invoice, packing list, certificate of origin, and material safety data sheet where applicable — is prepared for each shipment to facilitate customs clearance. For project orders requiring consolidated freight or sea shipment, contact us directly for a logistics plan.
