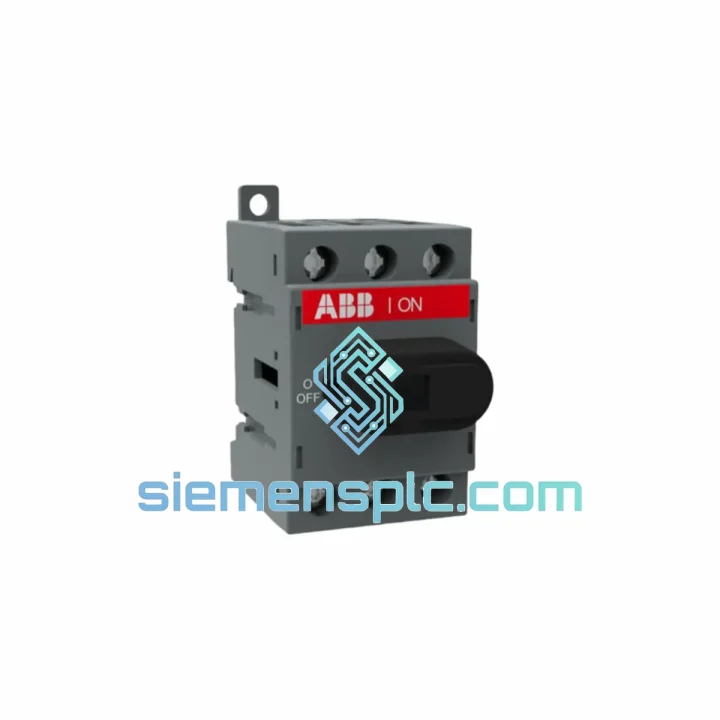

ABB OT125F3 Fuse Switch Disconnector – OT Series

ABB OT125F3 – 125A 3-Pole Fuse Switch Disconnector in Industrial Power Distribution Architecture

The ABB OT125F3 is a 125A, 3-pole fuse switch disconnector engineered for safe, reliable isolation of electrical circuits in motor control centers (MCC), industrial control panels, and main distribution boards. Operating within ABB’s OT Series platform, this unit integrates mechanical isolation and fuse-based overcurrent protection into a single compact assembly, reducing panel footprint while maintaining full IEC 60947-3 compliance. Its rotary cam mechanism provides a positive, visible OFF position — a mandatory requirement in maintenance isolation procedures under EN ISO 13849 and OSHA LOTO standards.

Unlike a standard load break switch, the OT125F3 is classified under utilization category AC-23A, meaning it is rated for switching inductive motor loads — not merely resistive circuits. This distinction is critical in MCC design: the switch must interrupt the transient inrush current of motors at startup without contact welding or arc erosion beyond design limits. ABB achieves this through a double-break contact geometry per pole, which splits the arc across two contact gaps, reducing arc energy per gap and extending contact service life under repetitive switching duty.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The OT125F3 employs a snap-action rotary cam mechanism that decouples handle rotation speed from contact separation velocity. This design ensures that contact opening speed remains constant regardless of operator actuation rate — a fundamental requirement to prevent sustained arcing at partial separation. The cam profile is machined to deliver a minimum contact gap of 12mm per pole in the OFF position, satisfying the visible isolation gap requirement of IEC 60947-3 Section 7.1.5.

EMC and Arc Management: Each pole chamber is constructed with arc-quenching splitter plates fabricated from de-ionizing fiber composite. When the contacts open under load, the arc is driven upward by electromagnetic force (Lorentz effect) into the splitter stack, where it is divided into multiple series arcs. Each sub-arc operates below the minimum arc sustaining voltage (~20V for copper contacts), causing rapid arc extinction within 8–12ms at rated current. This arc management architecture eliminates the need for external arc chutes in standard panel installations.

Fuse Holder Integration: The NH00 fuse carrier is spring-loaded and tool-free removable only in the OFF position — a mechanical interlock enforced by a cam-driven blocker that physically prevents fuse extraction when the switch is in the ON state. This interlock eliminates the risk of live fuse removal, a common cause of arc flash incidents in distribution panels. The fuse carrier contacts are silver-plated copper with a contact force of approximately 80N, ensuring stable contact resistance below 0.5mΩ across the service life.

Dielectric Integrity: The OT125F3 housing is molded from glass-fiber reinforced polyamide (PA66-GF30), providing a comparative tracking index (CTI) of ≥600V and a glow-wire ignition temperature (GWIT) of 775°C per IEC 60695-2-13. These material properties ensure the enclosure maintains structural and dielectric integrity under sustained fault arc conditions, preventing propagation to adjacent panel components.

System Integration Benefits

• Deterministic Isolation Confirmation: The rotary handle provides a mechanically locked, visually unambiguous OFF position. Panel operators can confirm isolation state without instrumentation, reducing human error in LOTO procedures.
• Upstream Fault Current Limitation: When paired with NH00 gG fuses rated to 125A, the assembly provides a conditional short-circuit rating of 100kA — allowing installation on busbars fed directly from medium-voltage transformers without additional current-limiting devices.
• Modular Accessory Ecosystem: Compatible with ABB OT-series door-coupling handles, padlocking attachments (up to 3 simultaneous padlocks), auxiliary contact blocks (1NO+1NC), and undervoltage release modules — all field-installable without panel rewiring.
• Reduced Panel Depth: The OT125F3 has a mounting depth of 108mm, compatible with standard 200mm deep enclosures. Its DIN rail mounting eliminates the need for custom back-plate drilling, reducing panel assembly time by approximately 15 minutes per unit.
• Dual-Function Protection: The integrated fuse holder eliminates a separate fuse base, reducing the component count in the protection chain by one device, one set of terminals, and associated wiring — directly improving MTBF of the protection assembly.
• PLC/DCS Upstream Compatibility: Suitable as the main isolation device upstream of Siemens S7-300/400/1500, ABB AC500, Rockwell ControlLogix, and Schneider Modicon M340/M580 control panels. The 690V AC rating accommodates European 400V TN-S and 690V IT industrial networks without derating.
• Diagnostic Transparency via Auxiliary Contacts: Optional auxiliary contact block (OT-AUX) provides real-time switch position feedback (ON/OFF) to PLC digital inputs, enabling supervisory systems to log isolation events, enforce interlock sequences, and generate maintenance alerts based on accumulated operating cycles.
• Thermal Derating Characteristics: The OT125F3 is rated at 125A continuous at 40°C ambient. At 55°C, the derating factor is 0.9, yielding a 112.5A continuous rating — a derating curve that is linear and well-documented in ABB Technical Catalog 1SCC303001C0201, enabling accurate thermal design without empirical testing.

Quality Assurance & Global Logistics

Every ABB OT125F3 unit supplied through siemensplc.com is sourced from ABB’s authorized distribution network and verified surplus channels with full traceability documentation. Pre-shipment inspection covers physical label authenticity (ABB holographic security label), date code verification against ABB’s production batch database, and contact resistance measurement (target: <0.5mΩ per pole at 100A test current). Certificate of Conformity (CoC) and factory test reports are available upon request for each batch.

Logistics are managed from our warehouse in Xiamen, China, with same-day dispatch for in-stock orders placed before 15:00 CST. Standard export packaging uses anti-static foam inserts within double-wall corrugated cartons, rated for 200kg/m² stacking load — suitable for air freight and sea freight consolidation. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, 4–6 days to North America, and 2–3 days to Southeast Asia. Full customs documentation including commercial invoice, packing list, and HS Code 8536.50 classification is provided for all international shipments.
