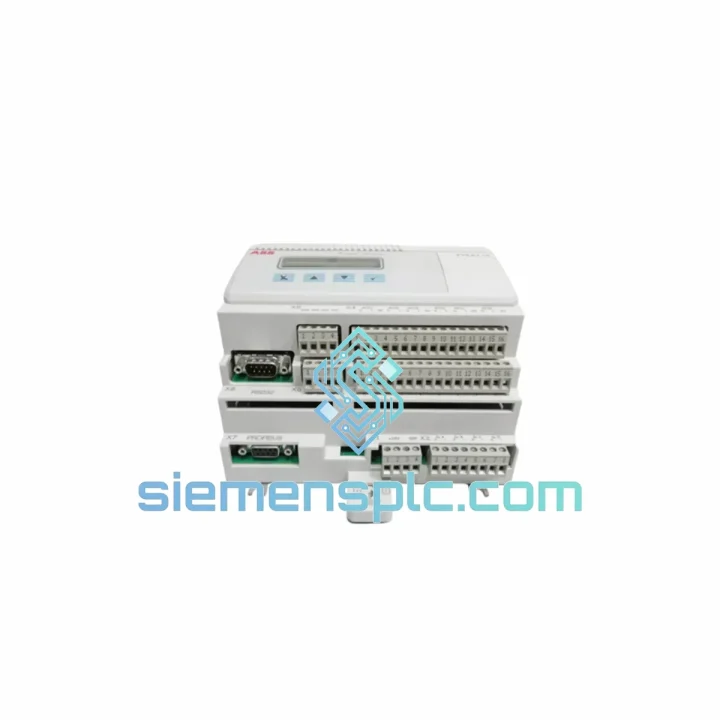

ABB PFEA113-20 Web Tension Controller — Stop the Line Loss. Ship Today.

Every hour your web line sits idle costs real money. A failed tension controller cascades fast — misregistration, substrate breaks, scrap piles, missed delivery windows. The ABB PFEA113-20 is a precision closed-loop tension controller purpose-built for continuous web, film, foil, and strip processing. We stock it in Xiamen. We ship it today. That’s the difference between a 4-hour fix and a 4-day nightmare.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a PFEA113-20 in the field is not plug-and-play if you skip these steps. Here’s what actually matters on the bench and at the cabinet door:

1. Load Cell Zero Before You Power Up
Before energizing the replacement unit, mechanically unload the measuring roll. Run the auto-zero routine immediately after power-on — do not skip this even if the old unit’s calibration data is available. Residual mechanical preload from the old installation will throw your tension baseline off by 5–15% and you won’t catch it until the first roll breaks.

2. mV/V Signal Polarity Check
Verify load cell wiring polarity against the PFEA113-20 terminal diagram before closing the cabinet. Reversed excitation or signal wires produce a controller that appears to function but drives tension in the wrong direction under load — a fault that only shows up at line speed.

3. Taper Tension Parameter Restore
The PFEA113-20 stores taper tension curves and PID parameters in non-volatile memory. If you are replacing a failed unit, retrieve the parameter backup from your HMI or PLC historian before commissioning. If no backup exists, start with taper ratio at 0% and tune incrementally — aggressive taper settings on a cold start will cause winding defects on the first few rolls.

4. PROFIBUS Node Address
If your installation uses PROFIBUS, the node address on the replacement unit must match the failed unit exactly. Check the rotary address switches on the PFEA113-20 housing — they are not software-configurable. Mismatch here causes the PLC to report a bus fault and the tension loop drops to manual fallback.

5. Common Fault Codes in the Field

• F01 / Sensor Break: Load cell signal below minimum threshold. Check cable continuity and connector seating at both the load cell junction box and the PFEA113-20 input terminals.
• F02 / Overrange: Load cell signal exceeds full-scale input. Verify load cell range matches the PFEA113-20 input configuration — a 500 N cell on a 2000 N input range will saturate under normal web tension.
• F05 / Supply Voltage Low: 24 V DC rail sagging under load. Measure at the PFEA113-20 terminals under full system load — not at the PSU output. Voltage drop across long cable runs is a common culprit in large panels.
• Oscillating Tension / Hunting: PID integral gain too high for the current web speed. Reduce I-gain by 20% increments and observe at operating speed. This is the most common commissioning issue after a cold replacement.

Reliability in Harsh Conditions

Web processing environments are not kind to electronics. Printing presses run hot. Converting lines generate solvent vapor. Paper mills are humid year-round. The PFEA113-20 is designed to operate continuously in these conditions — not just survive them on a datasheet.

The unit’s analog front-end uses differential signal processing that rejects common-mode electrical noise from variable-frequency drives sharing the same cabinet. In installations where VFDs and tension electronics share a panel, this matters more than any IP rating. Shielded cable is still required, but the PFEA113-20’s input stage tolerates the kind of ground loop interference that kills generic signal conditioners within months.

Thermal design is conservative. The PFEA113-20 is rated for continuous operation at ambient temperatures up to 55°C — relevant in summer production environments in Southeast Asia and the Middle East where cabinet cooling is marginal. The DIN rail mounting ensures adequate convective airflow around the unit without forced cooling requirements.

Vibration tolerance meets IEC 60068-2-6 test profiles applicable to machinery-mounted control panels. In slitter-rewinder installations where the control cabinet is bolted directly to the machine frame, this is not a theoretical specification — it is the reason units last 8–12 years in service rather than 2–3.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how a typical urgent order moves:

• Order Confirmed Before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority, depending on destination country and declared value requirements.
• Transit to Southeast Asia: 1–2 business days. Malaysia, Thailand, Vietnam, Indonesia — all reachable next-day from Xiamen on DHL Express.
• Transit to Europe: 3–5 business days. Germany, Netherlands, Poland, Italy — standard DHL Express International routing via Frankfurt or Amsterdam hub.
• Transit to North America: 3–4 business days. FedEx International Priority direct to US and Canadian destinations.
• Transit to Middle East & India: 2–4 business days. UAE, Saudi Arabia, India — DHL Express with direct routing from Xiamen.
• Export Documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS code 8537.10 declared. We handle all export customs clearance from the China side.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent to your email.

For orders requiring import duty pre-payment (DDP terms) or specific carrier account billing, contact us before placing the order. We accommodate both.
