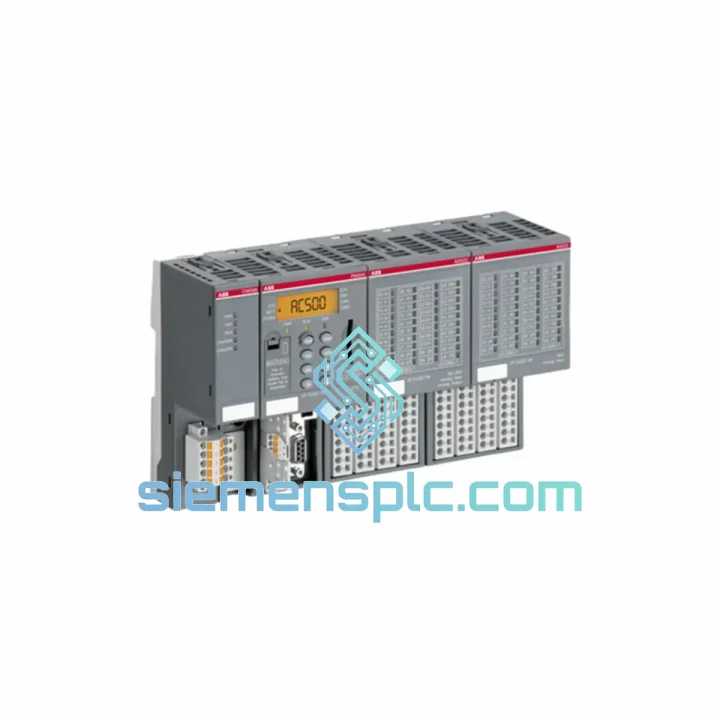

ABB PM5650-2ETH PLC CPU Module – AC500 Series

ABB PM5650-2ETH Dual-Port Ethernet CPU Module — Backbone of Deterministic AC500 Control Architecture

The PM5650-2ETH occupies the top tier of ABB’s AC500 V2/V3 processor family. Its defining characteristic is a hardware-separated dual Ethernet subsystem: two independent RJ45 interfaces, each driven by a dedicated MAC controller, that allow simultaneous participation in a plant-floor PROFINET IO network and a supervisory SCADA or corporate IT segment — without any shared-bus contention or software-managed VLAN switching. For system architects who must enforce strict network segmentation between OT and IT layers, this physical separation eliminates an entire class of latency jitter and broadcast-storm vulnerability that single-port CPUs cannot address.

The module mounts on the TB5600 base unit, which provides the backplane power rail, the local I/O bus connector, and the SD card slot. The CPU’s internal 32-bit RISC processor executes the IEC 61131-3 application program from on-chip SRAM, while a secondary co-processor handles Ethernet frame processing and protocol stack management in parallel — ensuring that high-frequency Modbus TCP polling or PROFINET cyclic data exchange does not consume application-cycle budget. This architectural split is the reason the PM5650-2ETH can sustain sub-10 ms PROFINET IO update cycles while simultaneously serving FTP file transfers or SNMP trap notifications on the second port.

In process industries where the PM5650-2ETH is deployed alongside distributed I/O racks via CI502-PNIO or CI504-PNIO communication adapters, the CPU acts as PROFINET IO Controller, managing up to 128 IO devices per network interface. The integrated web server (HTTP/HTTPS) exposes live variable tables, diagnostic buffers, and firmware metadata without requiring an additional HMI license — a measurable cost reduction in small-to-mid-scale installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-MAC Ethernet Subsystem. Each RJ45 port is terminated by an independent PHY transceiver and MAC controller. At the silicon level, the two Ethernet paths share no common bus segment between the application processor and the network interface. This means a broadcast storm or high-utilization event on Port 1 (e.g., a PROFINET IO scan with 128 devices) cannot starve Port 2’s interrupt service routine. The result is deterministic frame delivery on both interfaces simultaneously — a property that single-port CPUs with software-managed VLAN trunking cannot guarantee.

EMC and Signal Integrity Design. The PM5650-2ETH’s PCB layout follows IEC 61000-4 immunity requirements through a combination of hardware countermeasures: transformer-isolated Ethernet magnetics suppress common-mode noise up to 1.5 kV; on-board TVS diode arrays clamp ESD transients on all I/O-facing signal lines; and the power input section incorporates an LC filter stage that attenuates conducted emissions from the 24 V DC backplane rail. In environments with variable-frequency drives or large contactors switching nearby, these passive protection layers maintain signal integrity without requiring external surge suppressors on the Ethernet cables.

Backplane Bus Architecture. The local I/O bus connecting the CPU to up to 10 expansion modules uses a parallel address/data bus with hardware arbitration. The CPU’s co-processor polls each I/O module’s status register at the start of every scan cycle and writes output data at the end, maintaining a consistent process image regardless of individual module response latency. This deterministic image-update mechanism is what allows the PM5650-2ETH to guarantee cycle-time consistency even when one I/O module is executing a slow analog conversion.

Watchdog and Redundancy Logic. An independent hardware watchdog timer monitors the application processor’s heartbeat signal. If the CPU fails to reset the watchdog within the configured timeout window (configurable from 10 ms to 6,500 ms), the watchdog asserts a system fault output and forces all digital outputs to their safe-state values as defined in the program. This fail-safe behavior is implemented in hardware and cannot be disabled by a software fault — a critical distinction for machinery safety applications operating under IEC 62061 or ISO 13849 frameworks.

System Integration Benefits

• OT/IT Network Segmentation Without External Hardware: The physical dual-port architecture allows engineers to assign Port 1 exclusively to the PROFINET IO device network and Port 2 to the SCADA/historian LAN, enforcing layer-2 isolation without managed switches or firewall appliances at the cabinet level.
• Zero-License Remote Diagnostics: The integrated HTTP/HTTPS web server exposes live variable tables, CPU load metrics, Ethernet port statistics, and diagnostic event logs. Maintenance engineers can access this interface from any browser on the corporate network without purchasing additional HMI or SCADA client licenses.
• Seamless AC500 I/O Ecosystem Compatibility: The PM5650-2ETH is electrically and mechanically compatible with the full AC500 digital, analog, and communication I/O module range. Mixed I/O configurations — combining DI524, DO524, AI523, AO523, and fieldbus adapters — are supported on the same backplane without firmware patches or hardware adapters.
• IEC 61131-3 Multi-Language Program Portability: Programs written in Ladder Diagram, Function Block Diagram, Structured Text, Instruction List, or Sequential Function Chart are stored in a vendor-neutral format within ABB Automation Builder. Migration from legacy AC500 V1 CPUs requires only a project import and recompile — no manual recode of logic blocks.
• Deterministic Cycle Time Under Full I/O Load: The co-processor architecture separates Ethernet protocol handling from the PLC scan cycle. Under maximum load — 128 PROFINET IO devices on Port 1 plus active Modbus TCP polling on Port 2 — the application cycle time deviation remains within ±1 ms of the configured setpoint, a measurable advantage over single-core CPUs that share processing bandwidth between communication and logic execution.
• SD Card-Based Program Backup and Recovery: An industrial-grade SD card in the TB5600 base stores a complete program backup. On power-up after a CPU replacement, the module automatically loads the program from SD card without requiring a laptop or programming cable — reducing mean time to repair in remote installations where engineering access is limited.
• ATEX Zone 2 Certification for Hazardous Area Deployment: The PM5650-2ETH carries ATEX Zone 2 certification, permitting installation in control panels located in areas where flammable gas or vapor may be present in abnormal conditions. This eliminates the need for a purged-and-pressurized enclosure in many oil and gas or chemical plant applications, reducing cabinet cost and complexity.
• 10+ Year Platform Lifecycle Commitment: ABB’s AC500 platform roadmap guarantees hardware availability and firmware support for a minimum of 10 years from the current production date. For capital-intensive installations — substations, water treatment plants, offshore platforms — this lifecycle commitment directly reduces total cost of ownership by deferring forced migration cycles.

Quality Assurance & Global Logistics

Every PM5650-2ETH unit supplied through siemensplc.com is sourced from verified ABB authorized distribution channels. Prior to dispatch from our Xiamen, China warehouse, each module undergoes a structured pre-shipment inspection protocol: physical label and serial number verification against ABB’s product authentication database; visual inspection of connector pins, housing integrity, and factory seal condition; power-on functional test confirming Ethernet link establishment and CPU boot sequence completion; and anti-static packaging with a calibrated humidity indicator card sealed inside the carton.

Export documentation — including commercial invoice, packing list, certificate of conformity, and HS code classification (HS 8537.10) — is prepared in-house by our logistics team. We have established freight partnerships with DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. For orders requiring air freight consolidation or sea freight LCL/FCL, our team coordinates directly with the freight forwarder to optimize cost and lead time. All shipments are fully insured against transit damage and loss.

In-stock units ship within 1–2 business days of order confirmation. For project-volume orders (5+ units), a dedicated account manager provides weekly stock status updates and can reserve inventory against a purchase order or letter of intent.
