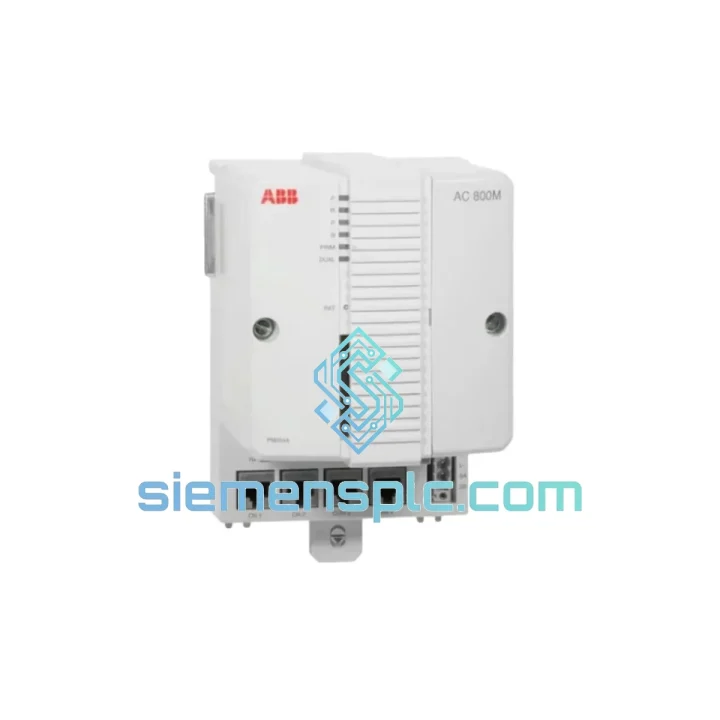

ABB PM864AK01 3BSE018161R1 DCS CPU Module

ABB PM864AK01 3BSE018161R1 — Stop the Bleed: Get Your AC 800M Back Online Before the Next Shift

Every minute your AC 800M controller sits dark, you’re bleeding production revenue. A failed PM864AK01 CPU doesn’t just halt one loop — it takes down the entire controller node, cascading faults across your S800 I/O clusters and triggering plant-wide alarms. We stock PM864AK01 (3BSE018161R1) in Xiamen and ship same-day via DHL Express. Your replacement module can be on-site in 48–72 hours, anywhere in the world.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls on AC 800M systems teach you the same hard lessons. Here’s what actually matters when you’re swapping a PM864AK01 under pressure:

Common failure signatures before full CPU death:

• Intermittent CPU FAIL LED flicker during peak I/O scan cycles — often misdiagnosed as a backplane issue. Swap the CPU first.
• Spontaneous warm restarts with event log entries referencing Task Watchdog Timeout — the internal watchdog is catching execution overruns caused by degraded SDRAM.
• Ethernet port dropping link after thermal cycling — the RJ45 magnetics on aging units delaminate. A new module resolves this permanently.
• Control Builder M reporting Application Mismatch after a power cycle — corrupted flash on the CPU, not a software bug.

Replacement procedure — field-tested sequence:

1. Force a manual switchover to the standby CPU (if redundant) via Control Builder M before touching hardware. Never hot-pull the active CPU without confirming standby is in SYNCHRONIZED state.
2. Download and save the full application backup from the active CPU to the engineering station. Verify the .zip archive opens cleanly before proceeding.
3. Power down the controller node at the PSU — do not rely on the CPU’s own power-off command when the module is suspect.
4. Seat the replacement PM864AK01 firmly. The module latch must click — a partially seated CPU will boot but generate spurious I/O errors that waste hours of debugging.
5. On first power-up, the new CPU will show BOOT status. Do not interrupt. Allow the self-test sequence to complete (typically 45–90 seconds).
6. Download the application from Control Builder M. Verify firmware version matches the rest of the system — a version mismatch between redundant CPUs will block synchronization.
7. If the system uses a Compact Flash memory module (SM811/SM812), transfer it from the failed unit only after confirming the new CPU boots cleanly without it. A corrupted CF card can prevent boot on the replacement module.
8. Confirm all I/O clusters report CONNECTED on the ModuleBus before releasing the node to operations.

Configuration items to verify post-swap:

• IP address assignment — the PM864AK01 stores its IP in non-volatile memory. A factory-fresh module ships with default 192.168.0.1. Reconfigure before connecting to the plant network.
• Redundancy license key (3BSE040662R1) — this is stored in the CPU, not the application. A replacement module requires the license to be re-entered via Control Builder M if hot-standby is required.
• OPC server subscriptions — after a CPU swap, OPC clients may need to re-establish subscriptions. Coordinate with the SCADA team before returning to automatic mode.
• Fieldbus interface modules (CI854AK01, CI858K01) — verify Profibus/FF segment status after CPU restart. Segment faults during startup are normal and self-clear within 30 seconds.

Reliability in Harsh Conditions

The PM864AK01 was engineered for continuous operation in environments that destroy consumer-grade electronics. ABB’s qualification testing for the AC 800M platform covers sinusoidal vibration per IEC 60068-2-6 (5–150 Hz, 1 g), shock per IEC 60068-2-27 (15 g, 11 ms half-sine), and thermal cycling across the full −25 °C to +70 °C storage range. The conformal-coated PCB resists condensation ingress in coastal and tropical installations where humidity swings are extreme.

In oil and gas applications, PM864AK01 units routinely operate for 8–12 years without intervention in pressurized control room enclosures where ambient temperatures hold at 45–50 °C. The module’s fanless design eliminates the single most common mechanical failure point in industrial electronics. Electrolytic capacitors — the component most sensitive to heat — are rated for 100,000 hours at 40 °C, giving the module a credible 10+ year service life under normal operating conditions.

For ATEX Zone 2 installations, the PM864AK01 can be deployed inside certified Ex e or Ex p enclosures. Verify the enclosure’s T-class rating against the process area classification before installation — the module itself generates approximately 15 W of heat dissipation that must be accounted for in enclosure thermal calculations.

Global Express Logistics

Our Xiamen warehouse operates Monday through Saturday with a 14:00 CST same-day shipping cutoff. Here’s exactly what happens after you confirm your order:

• Hour 0–2: Order confirmed, module pulled from bonded stock, serial number photographed and logged against your order.
• Hour 2–4: Anti-static packaging, humidity indicator card inserted, outer carton sealed and labeled. Commercial invoice, packing list, and certificate of origin prepared for customs.
• Hour 4–6: DHL Express or FedEx International Priority pickup. Tracking number sent to your email within 30 minutes of handover.
• Day 1–3: Clears Xiamen customs and transits through Hong Kong or Shanghai hub. Real-time tracking available via DHL/FedEx portal.
• Day 2–4 (Europe/Middle East): Delivery to your facility. DDP (Delivered Duty Paid) available — we handle import duties and customs clearance so your receiving team has zero paperwork.
• Day 3–5 (Americas/Australia): Delivery to your facility. Same DDP option available for US, Canada, Brazil, and Australia.

For projects requiring multiple units or a full controller BOM, contact us for consolidated shipment options that reduce per-unit freight cost without sacrificing speed. We support EXW, DAP, and DDP Incoterms with full documentation for LC and TT payment methods.
