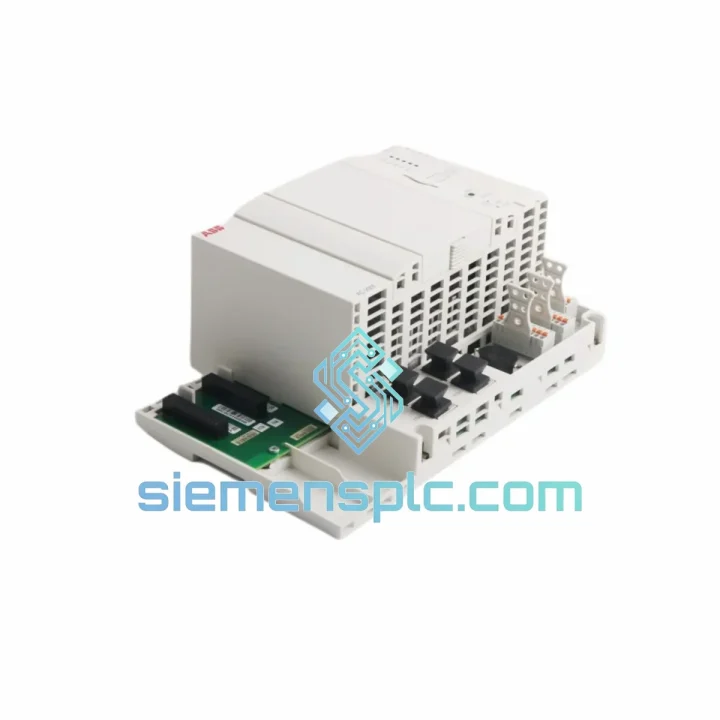

ABB PM902F 3BDH001000R0001 PLC CPU Module – AC500 Series

ABB PM902F 3BDH001000R0001 — AC500 Series Central Processing Unit for High-Complexity Industrial Control Architectures

The PM902F (catalog reference 3BDH001000R0001) occupies the upper tier of ABB’s AC500 scalable PLC platform. Within a control loop, this CPU functions as the deterministic orchestration node: it executes the cyclic scan, maintains the I/O image table, arbitrates fieldbus master/slave relationships, and services multiple independent communication stacks — all within a bounded, repeatable cycle time. Its 32-bit RISC processor architecture delivers the instruction throughput required for floating-point-intensive PID cascades, multi-axis motion sequencing, and concurrent protocol handling without scan-time jitter that would compromise closed-loop stability.

In distributed topologies, the PM902F acts as the PROFINET IO controller or PROFIBUS DP master, polling remote I/O stations and drives while simultaneously maintaining Modbus TCP server sessions for SCADA data acquisition. The dual independent Ethernet ports allow physical network segmentation at the CPU level — plant-floor PROFINET traffic and enterprise Modbus TCP traffic traverse separate physical paths, eliminating the need for managed switches to enforce VLAN isolation at the field level.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PM902F’s internal architecture is structured around three primary subsystems that operate concurrently: the application execution engine, the I/O bus controller, and the communication stack manager.

Application Execution Engine: The 32-bit RISC core processes IEC 61131-3 compiled bytecode with fixed-point and IEEE 754 floating-point instruction sets. The deterministic scan cycle is enforced by a hardware watchdog timer — if the application task overruns its configured cycle time, the watchdog triggers a controlled CPU stop and logs a diagnostic event to the system buffer, preventing silent runaway execution. This is a critical distinction from software-only watchdog implementations, which can be defeated by stack corruption.

S500 I/O Bus Controller: The local backplane bus uses a proprietary high-speed serial protocol between the PM902F and up to 10 S500 expansion modules. The bus controller performs cyclic polling of all connected modules within each PLC scan cycle, updating the I/O image table atomically before the application task reads it. This atomic update mechanism eliminates mid-scan I/O inconsistency — a common source of intermittent faults in systems where I/O is read asynchronously.

EMC Design: The PM902F’s PCB layout employs ground plane partitioning to isolate the digital processing domain from the communication interface domain. Ethernet magnetics are integrated on-board with common-mode chokes rated to suppress conducted interference per EN 61000-4-6 (10 V/m). The housing uses conductive gaskets at all seams to maintain Faraday shielding continuity, achieving radiated immunity per EN 61000-4-3 at 10 V/m across 80 MHz–1 GHz. In high-EMI environments — variable frequency drives, arc welders, high-current bus bars — this shielding architecture maintains data integrity on both Ethernet ports without requiring additional external filtering.

Redundancy Arbitration: While the PM902F itself is a single-CPU module, the AC500 platform supports hot-standby CPU redundancy configurations using paired PM902F units with a dedicated synchronization link. The active CPU continuously mirrors its memory image to the standby unit. On primary failure detection (watchdog timeout or power loss), the standby assumes control within one scan cycle — a switchover time typically under 10 ms — without requiring a cold restart of the I/O subsystem. This architecture meets the availability requirements of continuous process applications where unplanned downtime carries direct production cost.

System Integration Benefits

• Deterministic Scan Cycle Enforcement: Hardware watchdog with configurable cycle-time monitoring ensures application execution remains within defined bounds; overrun events are logged with timestamp and task identifier for post-mortem analysis.
• Dual-Port Network Segmentation: Two independently addressed Ethernet interfaces allow simultaneous PROFINET IO controller operation and Modbus TCP SCADA connectivity on physically separate network segments — no managed switch required for basic segmentation.
• Atomic I/O Image Update: The S500 bus controller refreshes the complete I/O image table in a single atomic operation per scan cycle, eliminating mid-scan data inconsistency and simplifying application logic for time-critical interlocks.
• Non-Intrusive USB Diagnostics: The USB programming port remains active during live operation; engineers can connect Automation Builder for online monitoring, force values, and program upload without interrupting the running application or fieldbus communications.
• SD Card Program Backup and Recovery: Onboard SD slot enables automated program backup on every download and one-button program restore on replacement hardware — reducing mean time to repair (MTTR) in field replacement scenarios to under 15 minutes without a laptop.
• Multi-Protocol Concurrent Operation: The communication stack manager handles PROFINET IO controller, Modbus TCP server, and EtherNet/IP adapter roles simultaneously on the dual Ethernet ports, enabling integration into heterogeneous plant networks without protocol gateways.
• Wide Ambient Temperature Tolerance: Rated operation from −25 °C to +60 °C covers outdoor enclosure installations in temperate and sub-arctic climates and high-ambient machine rooms without supplemental HVAC or enclosure heating elements.
• IEC 61131-3 Code Portability: Application programs written in Structured Text, Ladder Diagram, or Function Block Diagram are portable across the AC500 CPU family; scaling from PM571 to PM902F requires no language-level rewrite, only hardware configuration updates in Automation Builder.
• ATEX Zone 2 Certification: Certified for installation in Zone 2 hazardous areas (gas group IIC, temperature class T4) when mounted in an appropriate Ex e enclosure — eliminating the need for purge-and-pressurization systems in many oil and gas applications.
• Diagnostic Transparency: The PM902F exposes module-level diagnostics (I/O bus errors, communication timeouts, memory utilization, CPU load percentage) via standard PROFINET alarm channels and Modbus holding registers, making system health visible to both PLC-level HMI and enterprise SCADA without custom diagnostic blocks.

Quality Assurance & Global Logistics

Every PM902F 3BDH001000R0001 unit dispatched from our Xiamen, China facility is sourced through documented supply channels with full provenance traceability. Genuine ABB units carry laser-etched part numbers, ABB-standard holographic authentication labels, and factory-sealed packaging with intact tamper-evident seals. Upon request prior to order confirmation, we provide photographic documentation of actual stock, including label close-ups and packaging condition.

Pre-shipment inspection covers visual integrity (housing, connectors, label legibility), seal condition verification, and functional power-on confirmation. A pre-shipment inspection report is issued with every order. Units that do not pass inspection are quarantined and not dispatched.

Logistics from Xiamen port to major global destinations: DHL Express (2–4 business days to Europe, North America, Southeast Asia), FedEx International Priority (2–3 business days to the US), SF Express International (3–5 business days to East Asia). Full export documentation is provided as standard: commercial invoice, packing list, and certificate of origin. Form E (ASEAN–China FTA) and EUR.1 movement certificates are available for applicable trade lanes upon request. All shipments carry full cargo insurance and real-time tracking from dispatch to delivery confirmation.

Warranty terms: 12 months from invoice date. Defective units are replaced on a like-for-like basis after return and inspection. No restocking fees apply to warranty claims. Technical support for integration and commissioning queries is available via email throughout the warranty period.
