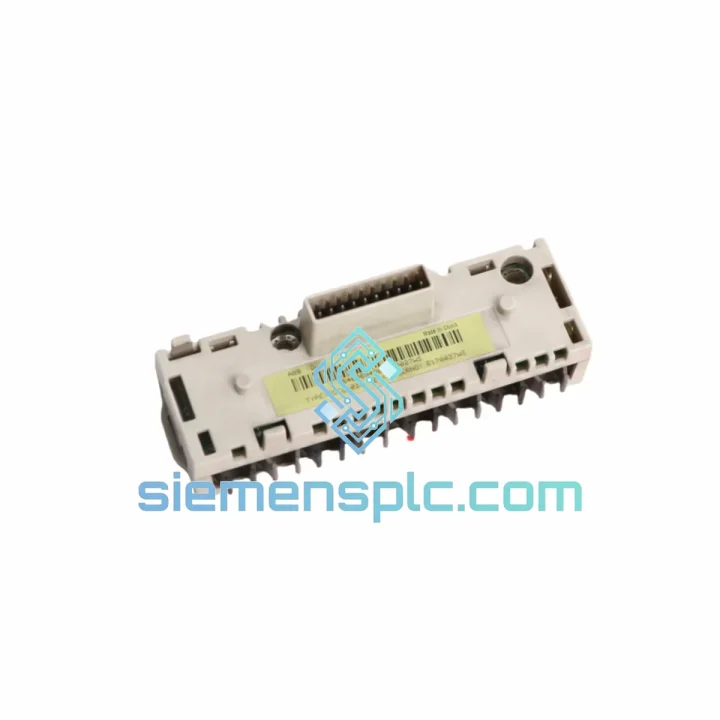

ABB RDCO-01C Communication Module – ACS800 DDCS Series

ABB RDCO-01C DDCS Fiber-Optic Communication Module — Deterministic Drive Synchronization for ACS800 Systems

The RDCO-01C occupies the option slot on the ACS800 RMIO control board and establishes a dedicated DDCS (Distributed Drive Control System) fiber-optic link between drives or between a drive and an external controller. Unlike fieldbus adapters that route reference data through a shared network medium, the RDCO-01C creates a point-to-point or ring-topology optical channel whose cycle time is fixed and independent of network load. This architectural choice is the reason ABB specifies the RDCO-01C wherever torque-reference latency must remain below 2 ms regardless of the number of nodes in the system.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RDCO-01C is built around a dedicated DDCS ASIC that handles framing, CRC generation, and optical transceiver control entirely in hardware, offloading the ACS800 RMIO processor from communication overhead. The 650 nm plastic optical fiber medium provides galvanic isolation exceeding 2 kV between nodes, which eliminates the ground-loop currents that routinely corrupt RS-485 or CAN signals in drive cabinets where motor cable shields are bonded to a common PE rail.

The two-channel architecture (CH1 and CH2) allows simultaneous ring closure and DriveWindow monitoring without time-multiplexing. CH1 carries the real-time torque/speed dataset at a fixed 2 ms frame rate; CH2 is reserved for non-time-critical parameter access and fault event streaming. Because both channels operate on separate optical transceivers, a DriveWindow session on CH2 does not introduce jitter on the CH1 reference path — a property that matters in winder applications where ±0.1 % speed deviation causes web breaks.

The ring topology implementation uses a store-and-forward relay inside each RDCO-01C node. Incoming frames on CH1-IN are decoded, the node’s own dataset is inserted at the designated slot, and the frame is re-transmitted on CH1-OUT within a fixed 125 µs relay latency. This deterministic relay budget means that a 12-node ring accumulates no more than 1.5 ms of propagation delay on top of the 2 ms base cycle — a total worst-case latency of 3.5 ms, which remains within the torque-bandwidth requirements of most tension-control and master/follower applications.

EMC design on the RDCO-01C PCB follows ABB’s standard for drive option boards: all logic signals crossing the optical isolation boundary are routed through the DDCS ASIC’s internal level shifters; no copper conductor bridges the isolation gap. The board uses a four-layer stackup with dedicated ground planes on layers 2 and 3, reducing radiated emissions from the 4 Mbit/s data lines. Ferrite beads on the 3.3 V supply rail suppress conducted noise injected from the RMIO backplane during drive PWM switching events.

System Integration Benefits

• Fixed-latency reference distribution: The 2 ms DDCS cycle time is hardware-clocked and does not degrade under high node counts or heavy DriveWindow traffic, giving control engineers a deterministic timing budget for cascade PID tuning.
• Zero-wiring EMI immunity: Plastic optical fiber carries no electrical potential between nodes, eliminating the need for common-mode chokes or shielded twisted-pair runs between drive cabinets separated by tens of meters.
• Transparent fault propagation: Each RDCO-01C node inserts its drive’s fault word into the DDCS frame. A master controller or DriveWindow session can read the fault status of all 12 nodes in a single ring scan without polling each drive individually over a separate fieldbus.
• Non-intrusive commissioning: CH2 supports live DriveWindow parameter access while CH1 continues closed-loop torque control. Engineers can adjust ramp times, current limits, and PID gains on follower drives without interrupting production.
• Scalable topology without additional hardware: Adding a drive to an existing DDCS ring requires only one additional RDCO-01C and two POF patch cables. No hub, switch, or repeater is needed for rings up to 12 nodes.
• Master/follower torque sharing: ACS800 parameter group 70 enables the master drive to broadcast a torque reference that all followers track simultaneously. The RDCO-01C delivers this reference with sub-cycle jitter below 50 µs, supporting load-sharing accuracy within ±0.5 % of rated torque.
• Diagnostic transparency: DriveWindow 2 can log up to 8 analog and 16 digital signals per drive at 2 ms resolution via the DDCS link. This data density is sufficient to reconstruct transient fault events — motor overcurrent, DC bus overvoltage, encoder loss — without installing external data loggers.
• Backward compatibility across ACS800 firmware generations: The RDCO-01C hardware interface is unchanged across ACS800 firmware versions 5.x through 7.x. Upgrading drive firmware does not require replacing the option module, protecting the capital investment in installed RDCO-01C units.
