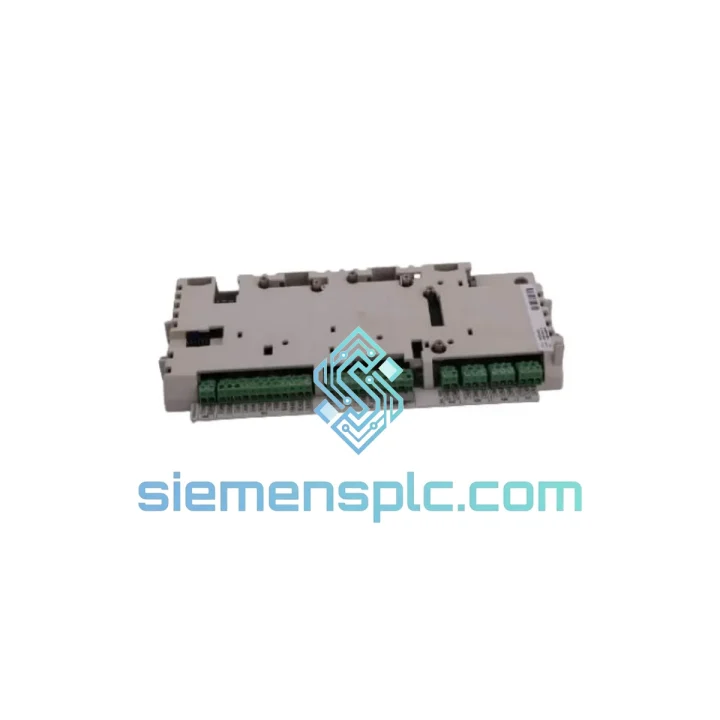

ABB RDCU-02C Drive Control Unit ACS800

ABB RDCU-02C — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute an ACS800 drive sits offline, your production line is bleeding money. A failed RDCU-02C control board is one of the most common — and most recoverable — causes of unplanned drive shutdown. We stock the ABB RDCU-02C specifically because we know what it costs when procurement takes a week and your line takes the hit. Our Xiamen warehouse holds verified units ready to clear customs and land on your bench in 48–72 hours, anywhere in the world.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on ACS800 platforms, these are the failure patterns that point directly to the RDCU-02C — and the steps that get you back online without a second trip to the cabinet.

Fault codes that implicate the RDCU-02C:

• FF52 / FF53 (DDCS Communication Loss): The fiber-optic link between RDCU-02C and the AINT inverter board has dropped. Before condemning the board, swap the fiber cables and check the AINT board’s DDCS port. If the fault persists with known-good fiber, the RDCU-02C transmitter is the likely culprit.
• FF61 (Control Board Fault): Internal self-test failure on the RDCU-02C. This is a hard board fault — no parameter change will clear it. Replace the unit.
• FF01 / FF02 (Overcurrent / Overvoltage) recurring after IGBT replacement: If power-stage hardware has been verified clean but these faults return, the DTC motor model in the RDCU-02C may have corrupted calibration data. Re-run motor ID run (parameter 99.15) before assuming a second power-stage failure.
• Intermittent FF7x (Thermistor / Temperature) with no thermal cause: Analog input channel degradation on the RDCU-02C. Check AI1/AI2 signal integrity first; if hardware checks out, the ADC on the control board is drifting.

Step-by-step replacement procedure:

1. Parameter backup first. Connect DriveWindow or use the CDP312R panel (parameter 16.05 = SAVE) before touching anything. If the board is already dead and you cannot read parameters, locate the commissioning record — you will need it.
2. Isolate and lock out. Full LOTO on the drive. Verify DC bus discharge with a calibrated meter — ACS800 DC buses hold lethal charge for several minutes after power-off. Do not skip this.
3. Fiber-optic handling. Label and photograph the DDCS fiber connections before removal. Bend radius on these cables is critical; a kinked fiber will give you the same FF52 fault on the new board.
4. Firmware version check. Read the firmware label on the outgoing RDCU-02C. The replacement unit must run the same firmware version or higher. Downgrading firmware on an ACS800 is not supported and will cause parameter incompatibility faults on startup.
5. DIP switch / jumper settings. The RDCU-02C has hardware configuration jumpers for AI signal range (0–10 V vs. 4–20 mA) and DDCS node address in multi-drive configurations. Photograph the outgoing board’s jumper positions before removal and replicate exactly on the replacement unit.
6. Parameter restore. Upload the saved parameter file via DriveWindow. Verify parameter group 99 (Start-Up Data) and group 10 (Command Inputs) before running the motor ID run.
7. Motor ID run. Always execute a stationary or rotating ID run (parameter 99.15) after a control board swap. The DTC algorithm builds a real-time motor model — without a fresh ID run, torque accuracy and fault thresholds will be off.
8. Fieldbus re-commissioning. If an RDCO adapter is installed, verify the node address and baud rate settings on the adapter match the PLC/DCS configuration. The RDCU-02C does not retain RDCO adapter settings in its own memory.

Reliability in Harsh Conditions

The RDCU-02C was designed for industrial environments where control electronics are an afterthought in the mechanical design — meaning the board has to survive what the cabinet throws at it.

The PCB uses conformal coating on signal-layer traces, providing resistance to condensation and airborne contaminants common in paper mills, wastewater plants, and coastal installations. The fiber-optic DDCS interface eliminates ground-loop noise that would corrupt copper-based communication in high-EMI environments like rolling mills and large motor drives. Operating temperature ceiling of +55 °C covers the majority of industrial cabinet environments without forced cooling on the control board itself.

Units in our stock are stored in ESD-safe anti-static packaging with humidity indicator cards. Long-haul shipments are packed in foam-lined cartons with desiccant. Every unit undergoes a visual PCB inspection and power-on functional check before dispatch — we verify the board boots, communicates on the DDCS port, and passes its internal self-test. A test record is available on request.

For installations in high-vibration environments (compressors, marine thrusters, mining conveyors), inspect the RDCU-02C connector seating and fiber terminations at the first scheduled maintenance interval after replacement. Vibration-induced connector fretting is the leading cause of intermittent DDCS faults in these applications — not board failure.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with daily DHL Express and FedEx International Priority departures. Here is what the timeline looks like from the moment you confirm your order:

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders after 14:00 ship the following morning.
• DHL Express / FedEx IP transit times: Southeast Asia 1–2 days | Europe 2–3 days | North America 3–4 days | Middle East / Africa 3–5 days.
• Customs documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared for every shipment. For destinations requiring a Certificate of Origin, allow one additional business day.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.
• Urgent freight: For critical shutdowns, contact us directly on WhatsApp before placing the order. We can arrange priority pick-up slots and pre-clear customs documentation to shave hours off the process.

We have shipped RDCU-02C units to paper mills in Scandinavia, petrochemical plants in the Middle East, automotive lines in Mexico, and water treatment facilities across Southeast Asia. The logistics process is the same every time — fast, documented, and traceable.
