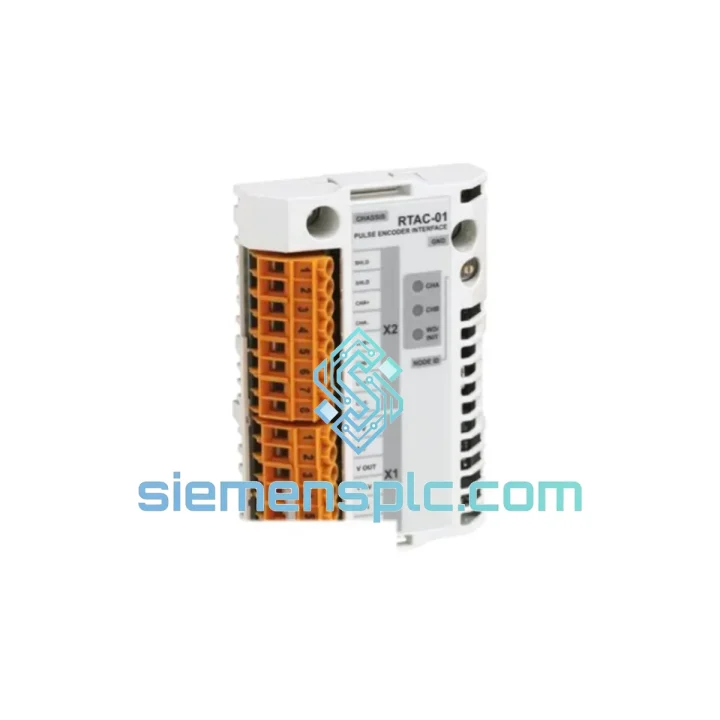

ABB RTAC-01 64610805 Encoder Interface Module – ACS800 Series

ABB RTAC-01 64610805 — Incremental Encoder Interface Module for ACS800 Closed-Loop Vector Control

In closed-loop AC drive applications, the fidelity of speed feedback is the single most consequential variable in control-loop stability. The ABB RTAC-01 (factory part number 64610805) is the factory-engineered incremental encoder interface option module for the ACS800 industrial drive platform. It provides a direct, low-latency signal path between an external incremental encoder and the ACS800’s RMIO or RDCO control board, enabling true closed-loop direct torque control (DTC) and closed-loop vector operation without external signal conditioning hardware.

The module occupies a dedicated option slot on the ACS800 control board, communicating via ABB’s internal option module bus — a synchronous parallel interface that transfers encoder count data to the drive’s DSP within a single control cycle (typically 125 µs or 250 µs depending on drive configuration). This architecture eliminates the latency and jitter inherent in serial fieldbus-based feedback paths, making the RTAC-01 the correct choice for applications where speed regulation accuracy must be held within ±0.01% of setpoint under dynamic load transients.

The RTAC-01 is deployed across paper machine winder/unwinder drives, metal rolling mill main drives, crane and hoist positioning systems, and precision machine tool spindle drives — wherever the ACS800 platform is required to maintain deterministic speed or torque output under variable mechanical load.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RTAC-01’s signal input stage employs differential line receiver ICs (RS-422 compatible) on both the A/B channel pair and the Z (zero-pulse) channel. Differential reception provides common-mode noise rejection of up to 7 V, which is the primary defense against ground-loop interference in long encoder cable runs — a common failure mode in large-frame drive installations where encoder cables may run 50–100 m alongside power cables carrying 400–690 V AC.

The HTL/TTL selection jumper reconfigures the input termination network: in TTL mode, 120 Ω line termination resistors are switched in to prevent signal reflections at frequencies approaching 200 kHz; in HTL mode, the input stage switches to a higher-threshold comparator to correctly interpret the 10–30 V logic swing from HTL encoders without false triggering from noise spikes.

Encoder supply output is regulated on-board from the drive’s internal 24 V bus, with short-circuit protection and current limiting at 200 mA. This eliminates the need for an external encoder power supply in most installations, reducing panel wiring complexity and eliminating a potential single point of failure.

The quadrature decoder logic on the RTAC-01 performs hardware-level A/B edge counting and direction discrimination, delivering a 32-bit position accumulator value and a calculated speed value to the drive’s DSP via the option module bus. The Z-pulse input is used for position homing and zero-crossing detection in positioning applications. All signal processing occurs in hardware (FPGA/ASIC logic), not in firmware, ensuring deterministic latency independent of module software load.

The PCB layout follows ABB’s internal EMC design rules: signal traces are length-matched and routed away from power supply planes; the encoder input connector is located at the module edge with a dedicated chassis ground connection point to provide a low-impedance shield termination path. This design approach is consistent with IEC 61800-3 conducted and radiated emission requirements for Category C2 and C3 drive installations.

System Integration Benefits

• Zero-latency feedback path: The option module bus delivers encoder data to the ACS800 DSP within the same 125 µs control cycle, enabling speed regulation bandwidths that are not achievable with fieldbus-based feedback architectures.
• Native DTC compatibility: ABB’s Direct Torque Control algorithm in the ACS800 is designed to consume encoder feedback directly from the RTAC-01 data structure — no parameter remapping or scaling is required beyond PPR entry.
• Plug-in installation without drive power-down modification: The RTAC-01 installs into the option slot with the drive de-energized; no PCB-level modification, soldering, or firmware flashing is required. The drive auto-detects the module on next power-up.
• Automatic encoder fault diagnostics: The ACS800 firmware generates specific fault codes (e.g., Fault 34: ENCODER ERROR) when the RTAC-01 detects signal loss, cable break, or encoder supply overcurrent — providing actionable diagnostic information rather than a generic drive trip.
• Speed regulation accuracy ±0.01%: With a 1024 PPR encoder and the RTAC-01 in closed-loop DTC mode, the ACS800 achieves speed holding accuracy of ±0.01% of rated speed across the full load range — equivalent to DC drive performance from an AC drive platform.
• Torque response improvement: Closed-loop DTC with encoder feedback reduces torque rise time to under 2 ms at rated flux, compared to approximately 5–10 ms in open-loop DTC mode — critical for crane and hoist applications where load shock must be minimized.
• Position control enablement: The Z-pulse input enables the ACS800 to perform single-turn position homing and multi-turn position tracking when used with ABB’s positioning application macro, extending the drive’s capability into simple servo-equivalent positioning tasks.
• Reduced mechanical wear: Tighter speed regulation under load transients reduces mechanical stress on couplings, gearboxes, and driven machinery by eliminating the speed hunting that occurs in open-loop operation under variable load.
• Compatibility with ABB DriveStudio and Drive Composer: All RTAC-01 parameters (PPR, encoder type, fault response) are accessible via ABB’s standard commissioning tools without additional software licenses or hardware adapters.
• Supports multi-drive synchronization: In master-follower drive configurations, the RTAC-01 on the master drive provides the speed reference signal that follower drives track via the DDCS fiber-optic link, enabling line-speed synchronization across multiple ACS800 units.
