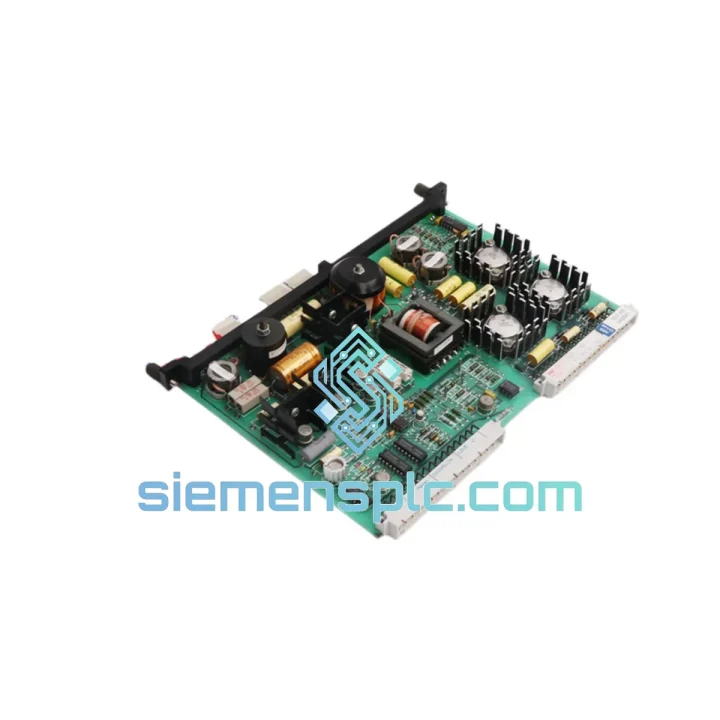

ABB SAMC11POW DCS Power Supply Board

ABB SAMC11POW – Stop the Clock on Your DCS Downtime

A failed power supply board in an ABB Advant/Master DCS cabinet does not give you a warning. One moment the system is running; the next, output rails collapse, I/O modules drop off the backplane, and your process goes dark. If you are reading this page, you are likely already in that situation — or you are smart enough to stock a spare before it happens. Either way, the SAMC11POW is the exact module you need, and we have it ready to ship from Xiamen today.

The SAMC11POW is the dedicated power conditioning board within the ABB SAMC series modular DCS architecture. It accepts the incoming cabinet supply and converts it to the regulated DC rails that feed SAMC processor cards, I/O modules, and communication interfaces. Without a functioning SAMC11POW, none of the downstream cards operate — it is the single point of power authority for the entire SAMC rack. This is not a peripheral component. It is the heartbeat of the cabinet.

ABB’s Advant/Master platform has been running continuous processes in oil refineries, power stations, pulp mills, and chemical plants for decades. These systems are reliable precisely because they were over-engineered — but that longevity also means spare parts are no longer on distributor shelves. Konmask specializes in exactly this gap: sourcing, testing, and shipping hard-to-find ABB DCS modules to maintenance teams worldwide, with the speed that emergency situations demand.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm SAMC11POW failure before ordering:

• LED status check: On a healthy SAMC rack, the power module’s green RUN LED should be steady. A flashing or extinguished LED with no other fault condition points directly to the power board. If all downstream I/O modules show no LED activity simultaneously, the power supply is the first suspect — not the CPU.
• Voltage rail measurement: With a calibrated multimeter, probe the backplane connector pins against the SAMC hardware manual pinout. A collapsed or out-of-tolerance rail (typically more than ±5% deviation) confirms the SAMC11POW has failed its regulation function. Do not attempt to operate the rack with a degraded rail — you risk cascading damage to processor and I/O cards.
• Fault code cross-reference: On Advant/Master systems, power supply faults typically surface as hardware fault alarms at the operator station. Look for fault codes referencing the rack address and power module slot. In AC400/AC450 environments, the engineering tool (MasterView 800 or Control Builder) will flag the specific rack as “hardware fault” with the power module slot highlighted.

Replacement procedure — key steps:

1. De-energize the rack: Isolate the 24 V DC cabinet supply feeding the SAMC rack. Do not hot-swap the power module unless your system documentation explicitly permits it — most SAMC configurations do not support live power board replacement.
2. Record the rack address: Before removal, note the rack address DIP switch settings on the existing SAMC11POW. The replacement board must be configured identically. Mismatched rack addressing will cause the CPU to fail to recognize the rack after power-up.
3. Inspect the backplane connector: Before inserting the new board, visually inspect the backplane power connector for bent pins or carbon deposits. A damaged backplane connector will destroy a new power board within minutes of energization.
4. Seat and secure: Insert the SAMC11POW firmly into the power slot until the front panel latch engages. A partially seated board will cause intermittent rail collapse under load — a fault that is extremely difficult to diagnose remotely.
5. Power-up sequence: Re-energize the cabinet supply and observe the power module LED. Allow 10–15 seconds for the rails to stabilize before the CPU begins polling I/O modules. If the fault persists after replacement, the backplane itself or the cabinet supply may be the root cause.

Configuration note: The SAMC11POW itself carries no firmware and requires no software configuration. However, if your system uses redundant power supply arrangements (dual SAMC11POW in parallel racks), ensure both units are from the same hardware revision to avoid load-sharing imbalance.

Reliability in Harsh Conditions

The SAMC11POW was designed for continuous operation in environments that would degrade consumer-grade electronics within weeks. ABB’s industrial power supply design philosophy for the Advant/Master platform incorporates several layers of environmental hardening:

• Thermal margin: The board is rated for operation across a wide ambient temperature range (typically 0°C to +55°C) with derating curves published for elevated temperatures. Internal components are selected with thermal headroom well above the rated operating point, which is why many SAMC11POW units remain functional after 20+ years of continuous service.
• Vibration resistance: PCB layout and component mounting comply with IEC 60068-2-6 vibration test standards applicable to industrial control equipment. Conformal coating on production boards provides additional mechanical protection for components under sustained vibration from adjacent rotating machinery.
• EMC shielding: The power supply board incorporates input filtering to suppress conducted emissions from the 24 V DC cabinet bus — a critical design feature in environments with large motor drives, welding equipment, or high-frequency switching loads sharing the same electrical infrastructure.
• Humidity tolerance: Designed to IEC 60068-2-78 damp heat test conditions, the board withstands the condensation cycles common in coastal industrial facilities, offshore platforms, and tropical process plants.
• Overvoltage and short-circuit protection: Output rails include protection circuitry that shuts down the supply under fault conditions rather than allowing uncontrolled voltage to damage downstream modules — a design choice that often means the SAMC11POW itself survives a downstream short circuit intact.

Every unit shipped by Konmask undergoes a powered functional test verifying output rail voltages, ripple levels, and protection circuit response before dispatch. Refurbished units are additionally inspected for electrolytic capacitor condition — the most common age-related failure mode in power supply boards of this generation.

Global Express Logistics

When your DCS is down, the part needs to arrive in hours — not weeks. Konmask operates from Xiamen, China, one of the country’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Here is how the dispatch process works:

• Same-day dispatch: Orders confirmed and paid before 14:00 CST are packed and handed to the courier the same business day. Export documentation — commercial invoice, packing list, and HS code declaration — is prepared in parallel with packing to eliminate customs clearance delays.
• Transit times: DHL Express from Xiamen reaches most destinations in Southeast Asia within 1–2 business days, Europe and the Middle East within 3–4 business days, and North America within 3–5 business days. FedEx International Priority offers comparable transit windows with alternative routing for remote destinations.
• ESD-safe packaging: The SAMC11POW is packed in a static-dissipative bag, surrounded by anti-static foam, and placed in a rigid outer carton rated for international air freight handling. The packaging is designed to survive the mechanical stress of express courier sorting systems without compromising the board inside.
• Full tracking: A tracking number is provided within 2 hours of dispatch. For critical shipments, we can arrange courier-specific priority handling and proactive tracking updates.
• Export compliance: All shipments are accompanied by accurate HS code classification (8537.10 for industrial control modules) and correct declared values to prevent customs holds. We have shipped to over 60 countries and are familiar with import requirements for industrial automation equipment in major markets.
