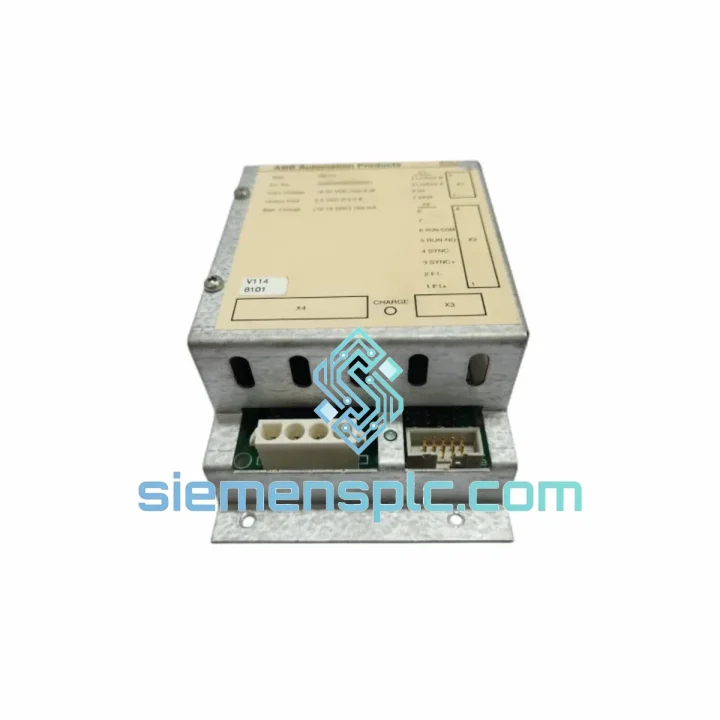

ABB SB510 3BSE000860R1 PLC Battery Backup Module

ABB SB510 3BSE000860R1 — Stop the Clock on Your Downtime

Every minute your AC500 PLC sits offline, the losses compound. A failed backup power supply is one of the most overlooked causes of unplanned shutdowns — and one of the fastest to fix when you have the right part on hand. The ABB SB510 (3BSE000860R1) is a plug-in battery backup module engineered specifically for the AC500 CPU platform. It bridges the gap between mains failure and controlled shutdown, preserving retentive data, active program states, and process variables that would otherwise vanish the moment power drops.

We stock this module in Xiamen and ship globally via DHL Express and FedEx International Priority. If your line is down right now, do not wait for a standard procurement cycle. Contact us directly.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom: AC500 CPU generates battery fault diagnostic (System Variable: SysLibSysInfo.xBatteryLow = TRUE)
This is the most common trigger for an SB510 replacement. The CPU monitors battery charge state continuously. When capacity drops below the internal threshold, the diagnostic bit trips. Do not ignore it — the next unplanned power cut will confirm the warning was real.

Step-by-step replacement procedure:

1. Confirm CPU state. If possible, perform a controlled shutdown via the programming tool (Automation Builder / PS501) rather than cutting power cold. This protects the process and gives you a clean starting point.
2. De-energize the panel. Isolate 24 V DC supply to the CPU rack. Verify with a multimeter before touching the module.
3. Locate the SB510 slot. On PM5xx CPUs, the backup module plugs into the dedicated slot on the left side of the CPU housing. It is keyed — it only fits one way.
4. Extract the old module. Press the release tab and pull straight out. Note the date code on the label for your maintenance log.
5. Insert the new SB510 (3BSE000860R1). Push firmly until the latch clicks. No DIP switches, no address configuration — the module is auto-detected by the CPU firmware.
6. Re-energize and verify. Power up the CPU. Within 60 seconds, check the battery diagnostic variable in your PLC program or via the Automation Builder online monitor. The fault bit should clear once the module is recognized and begins charging.
7. Allow full charge cycle. Initial charge to full capacity takes approximately 24 hours of continuous CPU operation. Do not perform a power-interruption test until the charge cycle is complete.

Common fault codes associated with SB510 failure:

• 0x8200 — Battery module not detected (module missing or failed to seat)
• 0x8201 — Battery capacity below minimum threshold (replace immediately)
• 0x8202 — Battery charge fault (check 24 V DC supply integrity to CPU rack)

Firmware note: The SB510 is compatible with all AC500 V1 CPU firmware revisions. If you are running a V2 CPU (PM5xx-2 suffix), verify hardware revision on the CPU label. V2 hardware requires the SB521 (1SAP120600R0001). Fitting an SB510 to a V2 CPU will not cause damage but may result in reduced backup duration and persistent diagnostic warnings.

DIP switch / addressing: None required. The SB510 is fully plug-and-play. The CPU auto-detects the module at power-up with no configuration steps in the user program.

Reliability in Harsh Conditions

Industrial control panels are not laboratory environments. The SB510 is built to operate where conditions are hostile by design.

Vibration: The module’s plug-in connector is rated for continuous vibration exposure consistent with IEC 60068-2-6 test profiles. The latch mechanism prevents the module from backing out under shock loads — a failure mode that plagues generic aftermarket alternatives with loose connector tolerances.

Thermal cycling: Panels in outdoor enclosures, foundries, and cement plants routinely see 40 °C+ ambient temperatures. The SB510’s NiMH chemistry is selected for its tolerance to elevated operating temperatures compared to older NiCd designs. ABB’s thermal derating data shows acceptable capacity retention up to the rated +60 °C ceiling. At sustained high temperatures, plan for a 3-year replacement interval rather than 5.

Humidity and condensation: The module’s conformal-coated PCB provides protection against humidity ingress consistent with the AC500 platform’s IEC 60068-2-78 damp heat rating. In environments with severe condensation risk, ensure the panel enclosure itself meets IP54 or better — the module cannot compensate for an inadequately sealed cabinet.

EMI/RFI: Installed inside the CPU housing, the SB510 benefits from the CPU’s own shielding. No additional EMC measures are required for the module itself.

Counterfeit risk: The industrial spare parts market has a documented counterfeit problem. Every SB510 we ship is inspected against ABB reference standards — holographic label verification, date code cross-check, and packaging integrity review. We do not source from unverified grey-market channels.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship operation. Stock is physically on our shelves.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, Poland): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Australia / New Zealand: 3–4 business days via DHL Express

Export documentation included with every shipment: Commercial invoice, packing list, certificate of origin, and — on request — a certificate of conformity. HS Code 8538.90 applies to this module for customs classification purposes. We handle all export paperwork; you handle installation.

Urgent same-day dispatch: Orders confirmed before 14:00 CST (UTC+8) on business days ship the same day. Contact us via WhatsApp for real-time stock confirmation before placing your order if your timeline is critical.

Packaging: Anti-static ESD bag, moisture barrier with desiccant, foam-lined carton. The module arrives in the same condition it left our warehouse regardless of how many hands it passes through in transit.
