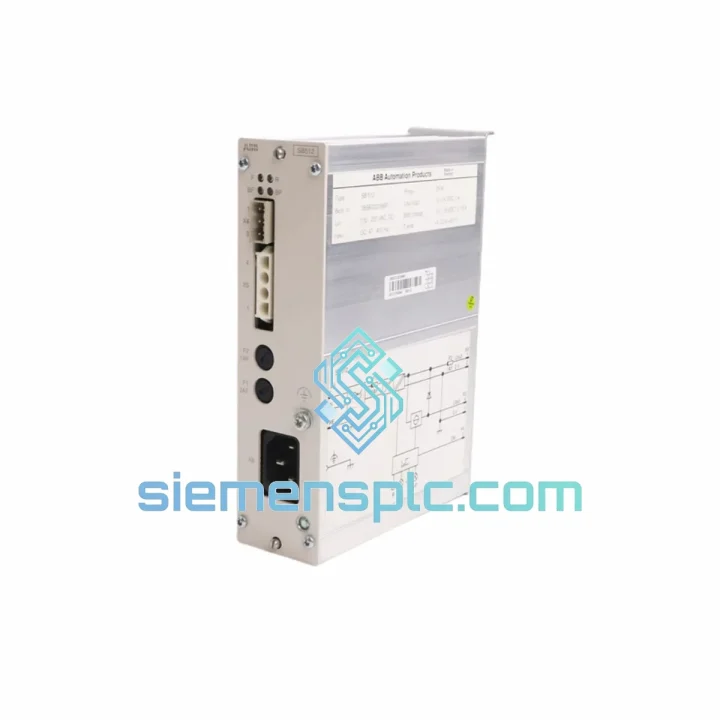

ABB SB512 3BSE002098R1 DCS Power Supply Module – Advant OCS MOD 300

ABB SB512 3BSE002098R1 — Regulated Backplane Power Supply for Advant OCS and MOD 300 Distributed Control Systems

The ABB SB512 (catalog reference 3BSE002098R1) is a rack-mount DC power supply module purpose-built for ABB’s Advant OCS and MOD 300 DCS platforms. Its primary function within the control loop is to deliver a stable, low-ripple DC rail to the controller backplane, I/O sub-racks, and inter-module communication buses. In continuous-process industries — where a single unplanned power interruption can trigger a full plant shutdown — the SB512 acts as the electrical foundation on which deterministic control depends. Without a correctly specified and fully functional power supply at this layer, even a correctly programmed CPU or a properly calibrated I/O module will fail to maintain scan-cycle integrity.

The module interfaces directly with the ABB Advant OCS S100 and S800 I/O families as well as the MOD 300 controller rack architecture. Its backplane connector pinout is factory-matched to ABB’s internal bus specification, eliminating the mechanical and electrical compatibility risks associated with third-party or cross-series substitutions. The 840 g form factor reflects the use of a transformer-based or high-density switching topology with adequate thermal mass for sustained full-load operation in cabinet environments where forced-air cooling may be limited.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Full electrical datasheet (input voltage range, output voltage/current ratings, ripple & noise figures, derating curves) available upon request. Contact [email protected] with your system configuration.

Hardware Logical Analysis

The SB512’s hardware design addresses three engineering constraints that are specific to DCS backplane power distribution: output impedance stability under dynamic load steps, electromagnetic compatibility within a densely populated control cabinet, and physical robustness over a multi-decade service life.

Output Impedance and Load Transient Response. DCS backplane loads are not static. CPU modules execute scan cycles that generate periodic current spikes as internal SRAM and flash operations complete. I/O modules switch output drivers in bursts. A power supply with inadequate output capacitance or a slow feedback loop will allow these transients to propagate as voltage droop onto the shared DC rail, potentially causing logic-level errors in adjacent modules. The SB512’s regulated topology maintains output voltage within the tight tolerance band required by ABB’s backplane specification, suppressing transient droop to levels that do not affect module logic thresholds.

EMC Design and Conducted Emissions. Switching power supplies inherently generate high-frequency conducted noise on both input and output lines. In a DCS cabinet that also houses analog signal conditioning modules — where millivolt-level signals are processed — this noise must be attenuated before it reaches the backplane bus. The SB512 incorporates input and output filtering stages designed to meet IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels, ensuring that externally induced transients on the AC supply do not corrupt the DC rail serving the controller logic.

Thermal Management and Component Derating. Industrial power supplies operating at continuous full load in enclosed cabinets are subject to junction temperature stress that accelerates electrolytic capacitor aging — the primary failure mode for this class of equipment. The SB512’s thermal design applies conservative component derating, keeping internal temperatures within bounds that support the extended MTBF figures required for process-critical applications. The 840 g mass is consistent with the use of a toroidal or EI-core transformer and substantial heatsinking on the output rectifier stage, both of which contribute to thermal stability.

Backplane Connector and Mechanical Keying. The module uses ABB’s proprietary backplane connector geometry, which provides both electrical contact and mechanical retention. This design prevents partial insertion — a failure mode that can cause intermittent contact resistance on the DC rail, producing voltage fluctuations that are difficult to diagnose without oscilloscope measurement at the backplane pins. The keying also prevents incorrect slot insertion, protecting both the module and the rack from damage during maintenance.

System Integration Benefits

• Deterministic scan-cycle power delivery: Maintains DC rail stability within ABB’s specified tolerance band throughout the CPU scan cycle, preventing voltage-induced scan-time jitter that would degrade control loop timing accuracy.
• Redundant power architecture support: Operates in parallel with a second SB512 unit in N+1 redundant configurations, enabling bumpless switchover on primary supply failure without interrupting the controller scan.
• Zero-modification backplane fit: Factory-matched connector pinout and slot dimensions eliminate the need for adapter hardware or firmware reconfiguration when replacing a failed unit, reducing mean time to repair (MTTR) to the time required for physical module swap.
• Diagnostic transparency via system bus: Power supply status signals are routed to the ABB system bus, allowing the Advant OCS / MOD 300 supervisory layer to log supply health events and generate maintenance alarms before a hard failure occurs.
• Galvanic isolation for signal integrity: The isolated DC output prevents ground-loop currents from propagating between the AC supply network and the DC logic domain, protecting analog I/O modules from common-mode interference that would otherwise appear as measurement offset.
• IEC 61000 immunity compliance: Validated immunity to electrical fast transients, surges, and conducted RF disturbances ensures the power supply does not become a noise injection point in plants with variable-frequency drives, large motor starters, or arc furnaces operating in proximity to the control room.
• Long-term spare parts availability: The 3BSE002098R1 reference number provides unambiguous BOM traceability for maintenance planning, spare parts audits, and insurance documentation, avoiding the procurement errors that arise from cross-referencing by description alone.
• Validated for SIL auxiliary power applications: While the SB512 itself is not a SIL-rated safety device, its stable output characteristics and documented failure modes make it suitable for use as auxiliary power in SIL-assessed control loops, subject to functional safety engineer review per IEC 61511.
• Compact single-slot footprint: Occupies a single rack slot in the ABB Advant OCS / MOD 300 cabinet layout, preserving slot capacity for I/O expansion without requiring a dedicated power sub-rack.
• Thermal derating margin for high-ambient installations: Conservative component derating supports operation in cabinets where ambient temperatures approach the upper end of the rated range, common in tropical climates or poorly ventilated plant rooms.

Quality Assurance & Global Logistics

Every ABB SB512 3BSE002098R1 unit dispatched from our Xiamen, China facility passes through a structured pre-shipment verification process. Units are sourced from authorised ABB distribution channels, certified industrial surplus inventories with full chain-of-custody records, and ABB-approved repair centres. Each unit undergoes visual board-level inspection for physical damage, corrosion, and component integrity; functional power-on testing with output voltage and ripple measured against OEM specification; and ESD-safe packaging in anti-static bags within foam-lined cartons rated for international air and sea freight.

Xiamen’s geographic position — a major port city with direct air freight connections to Europe, North America, Southeast Asia, and the Middle East — enables competitive transit times regardless of destination. Standard international shipments depart within 1–3 business days of order confirmation. Emergency and same-day dispatch options are available for critical plant breakdown situations. All shipments include a commercial invoice, packing list, and HS code documentation to support customs clearance in the destination country. Export compliance screening is applied to every order in accordance with applicable regulations.

A 12-month warranty covers functional failure under rated operating conditions from the date of dispatch. Extended warranty terms are available for project-scale procurement contracts. Technical documentation — including ABB datasheets, wiring diagrams, and installation guides — is provided upon order confirmation or in advance for qualified engineering enquiries.
