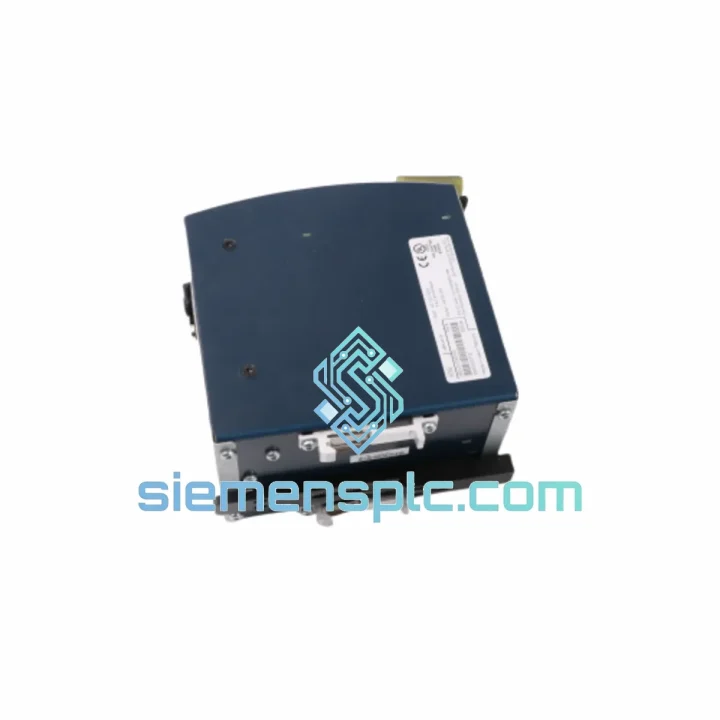

ABB SD834 3BSC610067R1 DCS Power Supply Module

ABB SD834 3BSC610067R1 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute your SD800 rack sits dark, your process line is bleeding money. The ABB SD834 (3BSC610067R1) is the dedicated 24 VDC power supply backbone for the entire SD800 backplane ecosystem — and when it fails, nothing else in that rack works. We stock it. We ship it. DHL Express from Xiamen, door-to-door, typically 3–5 business days to Europe, Southeast Asia, and the Middle East.

No waiting on ABB lead times. No chasing distributors. One call, one shipment, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The SD834 fails in predictable ways. Here is what you will see on the floor and how to handle the swap without making things worse:

Fault Symptom 1 — All I/O modules in the rack go offline simultaneously. This is almost always the SD834, not the modules themselves. The SD800 backplane loses its 24 VDC bus and every card on it drops. Before you start pulling I/O cards, check the SD834 status LED first. A solid red or no LED at all points directly at the power supply.

Fault Symptom 2 — Intermittent communication loss on ModuleBus. A degraded SD834 with marginal output voltage (dropping below ~22.5 VDC under load) will cause sporadic ModuleBus timeouts that look like a TB820 or TB840 communication fault. Measure the backplane bus voltage at the terminal block before condemning the communication module.

Fault Symptom 3 — SD834 trips on overload in a fully populated rack. If you are running a dense I/O configuration (16+ modules), verify that the total current draw does not exceed the SD834 rated output. In high-density racks, ABB recommends N+1 redundancy with two SD834 units sharing the load. A single unit running at 100% capacity will trip on thermal overload in high-ambient-temperature cabinets.

Replacement Procedure — Key Steps:

• De-energize the backplane before removal. The SD834 does not support hot-swap in standard configurations. Confirm with your site safety procedure.
• Note the DIP switch settings on the failed unit before extraction. The SD834 address switches must match the original configuration — typically set to the default position unless your system integrator customized the backplane addressing.
• After seating the replacement, power up and verify the 24 VDC output LED goes green within 3 seconds. If it does not, check input supply voltage at the terminal block (nominal 120/230 VAC depending on your variant).
• In 800xA, navigate to the Hardware Editor and perform a hardware rescan if the rack does not auto-recover. The SD834 itself carries no firmware — no firmware update is required on replacement.
• If running N+1 redundancy, test the failover by temporarily disconnecting the primary SD834 after the replacement is confirmed healthy. Confirm the secondary takes load without a process alarm.

Reliability in Harsh Conditions

The SD834 was not designed for a climate-controlled server room. It was built for the floor — and the floor is brutal. ABB qualifies the SD800 power supply series to IEC 61131-2 environmental standards, which means it has been tested against the conditions that actually kill electronics in industrial plants:

Vibration: Continuous sinusoidal vibration per IEC 60068-2-6, covering the frequency bands that correspond to rotating machinery, pump cavitation, and compressor harmonics. The SD834’s internal components are conformal-coated and mechanically secured to prevent solder joint fatigue over a 10+ year service life.

Temperature: Rated for operation from 0°C to +55°C ambient, with short-term excursions handled by the thermal protection circuit. In practice, we have seen SD834 units pulled from cabinets in Middle Eastern petrochemical plants where ambient temperatures regularly hit 50°C — and they run without derating when the cabinet ventilation is maintained.

Humidity and Condensation: Tested to IEC 60068-2-30 damp heat cycling. The conformal coating on the PCB provides a barrier against condensation in environments where temperature swings cause moisture ingress — common in coastal facilities and paper mills. This is not a consumer-grade coating; it is a full industrial-spec process applied at the factory.

EMC: CE-marked and compliant with IEC 61000 series immunity standards. The SD834 will not misoperate due to conducted or radiated interference from variable frequency drives, welding equipment, or high-voltage switchgear in the same cabinet or adjacent panels.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export hubs on the mainland, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways.

How your order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. Your tracking number is in your inbox before end of business.
• Packaging: Anti-static bag, foam-lined carton, humidity indicator card, and tamper-evident seal. The SD834 arrives in the same condition it left our shelf.
• DHL Express: Southeast Asia 2–3 days. Europe 3–5 days. Middle East 3–4 days. Australia 4–5 days. North America 4–6 days.
• FedEx International Priority: Available as an alternative carrier on request — useful for destinations where FedEx has stronger last-mile coverage than DHL.
• Customs documentation: We prepare a full commercial invoice with HS code 8537.10 (or as required by destination customs), country of origin certificate, and packing list. For customers in the EU, we can provide EUR.1 movement certificates where applicable.
• Urgent freight: For genuine production emergencies, contact us directly on WhatsApp. We have arranged next-flight-out courier shipments for customers facing extended unplanned outages — we know what a stopped line costs.

We do not use consolidation freight or economy postal services for industrial components. Every SD834 ships on a tracked, insured express service with a guaranteed delivery window.
