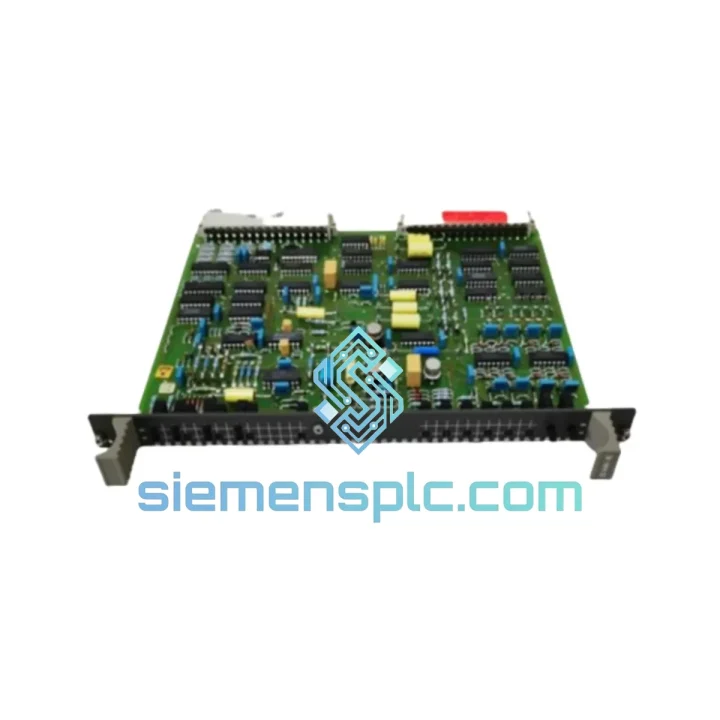

ABB SDCS-CON-4 3ADT313900R1501 DC Drive Control Board

SDCS-CON-4 — Every Hour of Downtime Costs You. We Ship Today.

Your DCS500 or DCS600 DC drive just tripped. The SDCS-CON-4 control board is dead — no comms, no speed reference, no torque output. The line is cold. Every minute the conveyor, rolling mill, or hoist sits idle, you’re bleeding money. We’ve been in that control cabinet with you. That’s exactly why we keep ABB SDCS-CON-4 (3ADT313900R1501) on the shelf in Xiamen, packed and ready to clear customs today.

This is not a compatible substitute. Not a clone. Not a refurbished board with a fresh coat of conformal coating. This is a 100% original ABB SDCS-CON-4, sourced from verified industrial surplus and authorized distribution channels, with full traceability on date codes and serial numbers. If you need it fast, you’ve found the right page.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of emergency callouts, here’s what actually goes wrong with the SDCS-CON-4 and what you need to know before you swap it out:

Common Failure Signatures:

• Fault F507 / F508 (Speed Feedback Loss): Often misdiagnosed as encoder failure. Before condemning the encoder, check the SDCS-CON-4’s pulse input circuit — the opto-isolators on the speed feedback channel are a known weak point after years of vibration and thermal cycling. If the encoder checks out on a scope but the drive still faults, the board is the culprit.
• Fault F516 (Current Measurement Fault): The current measurement ASIC on the CON-4 board can develop offset drift after extended operation at high ambient temperatures. A replacement board will clear this immediately. Do not waste time recalibrating a board that has drifted beyond its correction range.
• No DDCS Communication / Fieldbus Dropout: If the drive disappears from the DDCS ring (fiber-optic network), the DDCS transceiver on the CON-4 is the first suspect. Check the fiber connectors for contamination first, but if the transceiver LED is dark on power-up, the board needs replacement.
• Drive Powers Up but No Parameter Access: The onboard flash memory holding drive parameters can corrupt after a power surge or improper shutdown. The drive will power up but the panel shows garbled parameters or refuses to communicate. Board swap is the only fix.

Pre-Replacement Checklist — Do This Before You Touch Anything:

• ✔ Parameter Backup: If the drive still communicates at all, back up all parameters via DriveWindow or the CDP panel before pulling the board. The new board ships with factory defaults — you will need to reload your application parameters.
• ✔ Firmware Version Match: Check the firmware version on your existing CON-4 (visible in parameter 33.01 or on the board label). The replacement board must run the same firmware version to maintain compatibility with your SDCS-IOB and SDCS-FEX boards. Contact us with your firmware version — we can confirm compatibility before shipment.
• ✔ Node Address / DDCS Address: The DDCS node address is set via DIP switches on the CON-4 board (SW1). Before removing the old board, photograph the switch positions. The new board ships in default position — you must replicate the original switch settings or the drive will not appear on the DDCS ring.
• ✔ Power Down Sequence: Always de-energize the main DC bus and wait for the bus capacitors to discharge (minimum 5 minutes, verify with a meter) before handling the board. The CON-4 operates at logic voltages but the surrounding power section is lethal.
• ✔ ESD Precautions: The SDCS-CON-4 contains sensitive CMOS logic. Use a grounded wrist strap and anti-static mat. Do not place the board on painted metal surfaces.
• ✔ Connector Seating: The board uses multiple board-to-board and ribbon connectors. After installation, press each connector firmly and verify the locking tabs are engaged. A partially seated connector will cause intermittent faults that are extremely difficult to diagnose.

Reliability in Harsh Conditions

The SDCS-CON-4 was designed for the environments where DC drives actually live — not a clean server room, but a steel mill’s drive room with 45°C ambient, constant vibration from rolling stands, and humidity that condenses on cold mornings. ABB engineered this board to handle it.

The PCB uses a multi-layer design with selective conformal coating on the signal processing sections, protecting against moisture ingress and conductive contamination. The power supply section on the board is rated for wide input voltage tolerance, meaning it continues to operate cleanly even when the auxiliary supply fluctuates during motor starting events. The DDCS fiber-optic interface eliminates ground loop issues that plague copper-based communication in electrically noisy drive environments.

Vibration resistance is achieved through a combination of through-hole mounting for heavy components and strategic use of adhesive support on tall capacitors — the same capacitors that fail first on cheaper compatible boards that skip this step. Thermal management is handled by the drive cabinet’s forced-air cooling, but the board’s component selection accounts for junction temperatures well above the rated ambient, providing a real-world derating margin that extends service life in hot climates.

Every unit we ship has been stored in climate-controlled conditions in anti-static, moisture-barrier packaging. Boards that have been sitting in a damp warehouse for years develop subtle failures that only appear under load. We don’t sell those.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how your order moves:

• Order Confirmed → Same-Day Dispatch: Orders confirmed with payment before 15:00 CST are packed and handed to the carrier the same day. No exceptions, no delays for processing.
• DHL Express / FedEx International Priority: Transit time to most of Europe, Southeast Asia, and the Middle East is 3–5 business days. North America typically 4–6 business days. We select the fastest available service for your destination automatically.
• Export Documentation: Commercial invoice, packing list, country of origin certificate, and HS code declaration (HS 8537.10) are prepared for every shipment. We have extensive experience with customs clearance for industrial electronic components — we know how to declare correctly to avoid delays.
• Real-Time Tracking: Tracking number provided within 2 hours of dispatch. You can monitor the shipment from our door to yours.
• Bulk Orders: For multiple units or mixed orders, we can consolidate into a single shipment to reduce freight cost. Contact us for a freight quote before ordering.
