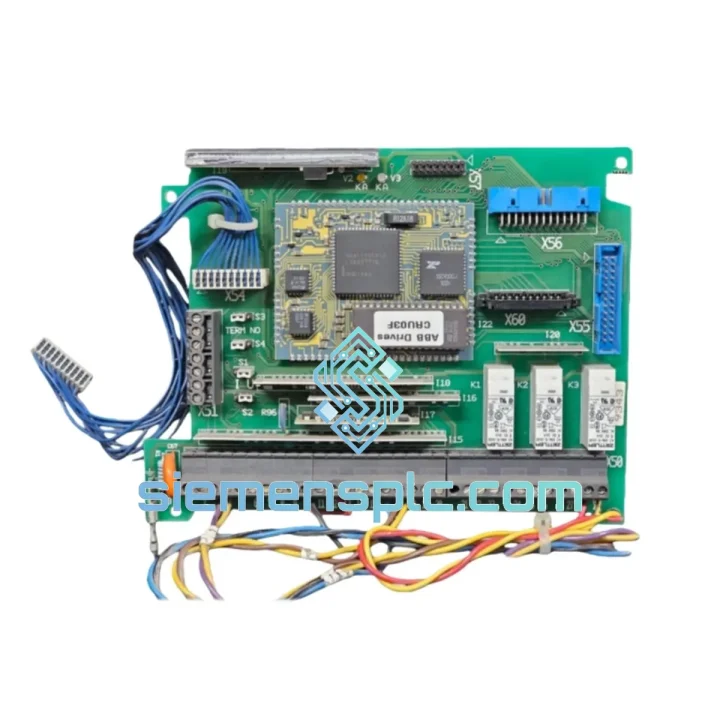

ABB SNAT7600 Drive Control Board – ACS Series

ABB SNAT7600 Drive Control Board – Signal Processing Core of the ACS Variable Frequency Drive Platform

The ABB SNAT7600 is the main control board assembly used within ABB’s ACS-series variable frequency drives, functioning as the central processing and signal coordination layer between the drive’s power electronics and its external control interfaces. Unlike peripheral I/O expansion cards, the SNAT7600 occupies the primary control slot and is responsible for executing the drive’s closed-loop vector control algorithm, managing the PWM modulation reference signals dispatched to the IGBT gate driver stage, and maintaining real-time communication with the drive’s operator panel and fieldbus adapter modules.

In a standard ACS drive architecture, the control board interfaces with the power unit via an internal ribbon or backplane connector carrying both low-voltage DC supply rails (typically +5 V, +15 V, ±15 V) and differential signal lines for current feedback from the DC bus shunt or Hall-effect sensors. The SNAT7600 samples these analog feedback signals through its onboard ADC channels at a rate synchronized to the PWM carrier frequency, enabling torque and flux estimation loops to execute within a single PWM period — a requirement for stable sensorless vector control at low output frequencies.

The board also hosts the drive’s non-volatile parameter memory, retaining all user-configured parameter sets across power cycles without battery backup, using EEPROM or flash storage with wear-leveling logic. Fault history registers are maintained in a separate memory partition, allowing maintenance engineers to retrieve timestamped fault logs even after a board replacement event — provided the parameter backup procedure is followed prior to removal.

From a signal integrity standpoint, the SNAT7600 employs optocoupler isolation barriers on all digital I/O lines that interface with external field devices. This galvanic isolation prevents ground loop currents from corrupting the ADC reference plane on the control board, a common failure mode in installations where the drive shares a ground bus with high-current switching equipment. The isolation barrier voltage rating on ABB ACS-series control boards is specified to withstand transient common-mode voltages consistent with IEC 61800-3 Category C3 EMC environments.

The SNAT7600 supports ABB’s DDCS (Distributed Drives Communication System) fiber-optic link, which allows the drive to be integrated into multi-drive systems or connected to an ACS 600 / ACS 800 master controller without introducing electrical noise coupling between nodes. The fiber interface on the control board uses ST-type connectors and operates at 5 Mbit/s, providing deterministic cycle times suitable for coordinated multi-axis applications in paper machines, winders, and crane systems.

Units supplied through siemensplc.com are sourced from verified industrial channels, inspected for PCB surface integrity, connector pin condition, and component marking authenticity before dispatch. Each unit ships with ESD-protective packaging and is accompanied by a 12-month quality warranty covering defects in materials and workmanship under normal operating conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Closed-Loop Vector Control Execution Architecture: The SNAT7600’s onboard DSP executes the flux and torque estimation model at a cycle time locked to the PWM switching frequency (typically 3–12 kHz depending on drive configuration). This synchronization eliminates phase jitter between the current sampling window and the PWM dead-time interval, which is the primary source of current ripple distortion in asynchronous sampling architectures. The result is accurate torque linearity down to near-zero speed without an encoder — a measurable advantage in applications such as centrifuge deceleration control or crane load holding.

EMC Design and Ground Plane Partitioning: The PCB layout of the SNAT7600 follows a split-ground plane strategy: the analog signal ground (AGND) and digital logic ground (DGND) are joined at a single star point near the ADC reference pin, preventing high-frequency switching transients from the digital logic from modulating the ADC reference voltage. Ferrite bead filters are placed on all power supply entry points to the analog section, attenuating conducted noise above 10 MHz. This design approach is consistent with ABB’s internal EMC design guidelines for drive control electronics operating in IEC 61800-3 Category C3 industrial environments.

Optocoupler Isolation Barrier: All external digital I/O signals — including run/stop commands, fault reset, and relay outputs — pass through high-speed optocouplers with a minimum isolation voltage of 2.5 kV (peak). The optocoupler propagation delay is specified at under 1 µs, ensuring that time-critical interlock signals are not delayed beyond the drive’s fault response window. This isolation architecture prevents ground potential differences between the PLC output card and the drive’s control board from inducing latch-up conditions in the CMOS logic on the SNAT7600.

DDCS Fiber-Optic Communication Integrity: The fiber-optic DDCS interface eliminates the common-mode noise coupling that affects RS-485 or CAN bus links in high-EMI drive rooms. Because the optical medium is immune to electromagnetic induction, the SNAT7600 can maintain deterministic 5 Mbit/s communication with a master controller even when installed adjacent to large transformer banks or thyristor rectifier cabinets. The ST-type fiber connectors on the board are rated for a minimum of 500 mating cycles, supporting routine maintenance without connector degradation.

Non-Volatile Parameter Retention: The SNAT7600 uses a wear-leveled flash memory architecture for parameter storage, with a write endurance specification exceeding 100,000 erase cycles. This is significant in applications where parameter sets are frequently updated via fieldbus or operator panel, as it prevents premature memory cell exhaustion. The parameter memory is organized in a dual-bank structure: one bank holds the active parameter set while the other is used for write operations, ensuring that a power interruption during a parameter save operation does not corrupt the active configuration.

System Integration Benefits

• Deterministic PWM-Synchronized Current Sampling: Eliminates aliasing errors in the current feedback loop, improving torque accuracy across the full speed range without requiring encoder feedback hardware.
• Galvanic Isolation on All External I/O: Prevents ground loop interference from corrupting control signals, reducing nuisance trips in installations with shared ground buses or long cable runs to field devices.
• Fiber-Optic DDCS Link for Multi-Drive Coordination: Enables deterministic master-follower torque sharing in multi-motor applications such as winders, extruders, and coordinated conveyor systems without electrical noise coupling between drive nodes.
• Battery-Free Parameter Memory: Eliminates the maintenance overhead and failure risk associated with battery-backed RAM, ensuring parameter integrity over the full service life of the drive without periodic battery replacement.
• Timestamped Fault History Logging: Provides maintenance engineers with a chronological fault record that survives board replacement, enabling root-cause analysis without reliance on external data loggers or SCADA historian records.
• Split-Ground PCB Architecture: Reduces ADC measurement error caused by digital switching noise, improving the accuracy of process variable feedback signals used in PID control loops integrated within the drive firmware.
• IEC 61800-3 C3 EMC Compliance: Confirms suitability for installation in second-environment industrial locations without additional external EMC filtering, reducing panel design complexity and BOM cost.
• RS-485 and Fieldbus Adapter Compatibility: The SNAT7600 supports ABB’s RMIO-based fieldbus adapter slot, allowing integration with PROFIBUS-DP, Modbus RTU, DeviceNet, or CANopen networks without hardware modification to the control board.
• Wear-Leveled Flash with Dual-Bank Write Architecture: Guarantees parameter integrity during power interruptions mid-write, eliminating the risk of drive startup failure due to corrupted parameter memory after an unplanned power loss event.
• Direct Drop-In Replacement Compatibility: The SNAT7600 is a form-factor and connector-compatible replacement for the original ABB ACS series control board, requiring no mechanical modification to the drive chassis or rewiring of the control terminal block.

Quality Assurance & Global Logistics

Every ABB SNAT7600 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. PCB surface condition is examined under magnification for solder joint integrity, component seating, and label authenticity against ABB OEM reference markings. Connector pins are checked for deformation, oxidation, and correct retention force. Units that do not meet inspection criteria are quarantined and not offered for sale.

ABB’s ACS-series drive control boards are manufactured under ABB’s ISO 9001-certified quality management system at ABB Drives’ production facilities. The SNAT7600 carries CE marking applicable to its end-use drive platform and is manufactured in compliance with RoHS Directive 2011/65/EU, restricting hazardous substances in electrical and electronic equipment.

Shipping is handled via DHL Express, FedEx International Priority, UPS Worldwide, and sea freight consolidation for volume orders. Standard in-stock units are dispatched within 1–3 business days of order confirmation. All export shipments are accompanied by a commercial invoice, packing list, and certificate of origin. Anti-static ESD bags and foam-lined cartons are used for all PCB shipments to prevent electrostatic discharge damage and mechanical shock during transit. Customs HS code classification and export documentation are prepared in compliance with Chinese customs regulations and the import requirements of the destination country.

A 12-month warranty covers all units against defects in materials and workmanship under normal operating and storage conditions. Warranty claims are processed through direct communication with our technical team, with replacement or refund resolution targeted within 5 business days of claim verification.
