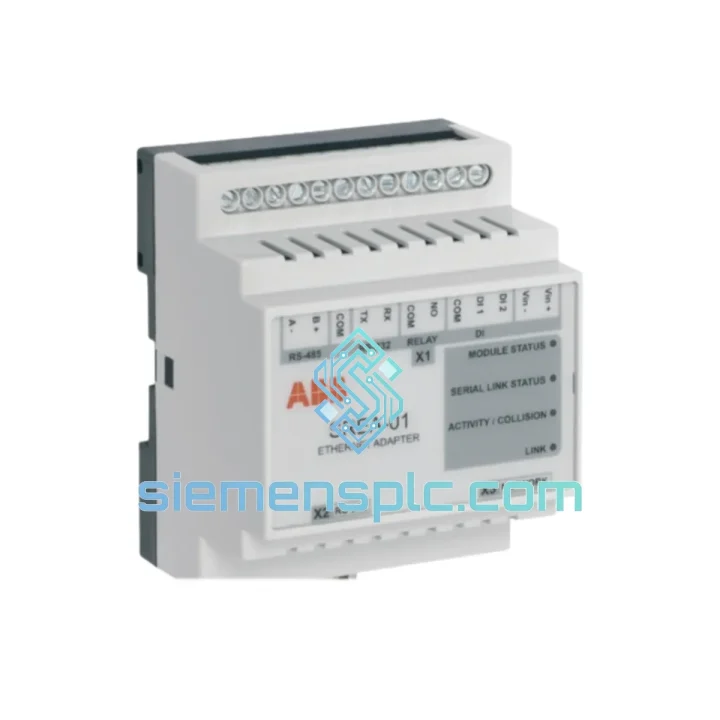

ABB SREA-01 Ethernet Adapter Module

ABB SREA-01 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your drive just dropped off the network. The SCADA screen is red. The production line is silent. You’ve already traced the fault to the Ethernet adapter slot — the SREA-01 is gone. You don’t need a datasheet lecture right now. You need a replacement module on a plane to your facility before the next shift starts.

At siemensplc.com, we stock the ABB SREA-01 in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 15:00 CST go out the same day. We’ve done this hundreds of times for plant engineers in automotive, petrochemical, water treatment, and food processing — engineers who couldn’t afford to wait two weeks for a factory order.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here’s what actually goes wrong with the SREA-01 and what to watch for when you’re swapping it out under pressure.

Common Fault Symptoms:

• Drive shows fault F-0026 or communication timeout alarm — The adapter has lost its Ethernet link. Check the RJ45 connector for bent pins or corrosion before condemning the module. If the link LED is dead with a known-good cable, the adapter’s PHY chip has likely failed.
• Intermittent packet loss / drive drops off SCADA cyclically — Often caused by vibration-induced micro-fractures on the adapter PCB or a failing managed switch port. Swap the switch port first; if the issue persists, the SREA-01 is the culprit.
• Drive powers up but adapter is not recognized (no LED activity) — The option slot connector on the drive control board may have oxidized contacts. Clean with isopropyl alcohol before installing the replacement. If the new module still shows no LED, the drive’s option slot power rail may be damaged — check the drive’s internal 5V supply.
• Protocol mismatch after replacement — The SREA-01 stores its active protocol in non-volatile memory on the module itself, not in the drive. A replacement unit ships in factory default (Modbus TCP). You must reconfigure the protocol via drive parameter group 51 (fieldbus adapter settings) or using ABB Drive Composer.

Step-by-Step Replacement Procedure:

1. Isolate the drive from mains supply and wait the full capacitor discharge time (minimum 5 minutes for ACS800 class drives — check the drive’s safety label).
2. Discharge yourself with an ESD wrist strap. The SREA-01 PCB is sensitive to static — don’t skip this.
3. Open the drive’s option slot cover. The SREA-01 slides into the D2D slot on the control board. Note the orientation tab — it only seats one way.
4. Remove the faulty module by pressing the retention clip and pulling straight out. Inspect the slot connector for bent pins.
5. Seat the replacement SREA-01 firmly until the retention clip clicks. Do not force it.
6. Power up the drive. Navigate to parameter group 51 and set 51.01 (Fieldbus Protocol) to your required protocol: 1 = Modbus TCP, 2 = EtherNet/IP, 3 = PROFINET.
7. Set the IP address parameters (51.02–51.05) to match your network configuration. If using DHCP, set 51.02 = 0.
8. Save parameters to drive memory (parameter 96.07 = Save). Cycle drive power.
9. Verify the SREA-01 LINK LED is solid green and the ACT LED is blinking — this confirms active communication with the PLC/SCADA.
10. Restore the drive to service and monitor for one full production cycle before signing off.

Firmware Note: PROFINET support requires SREA-01 firmware version 1.10 or later. If your replacement unit ships with an older firmware, contact ABB support for the firmware update file. The update is applied via the drive’s SD card slot on ACS880 variants.

Reliability in Harsh Conditions

Industrial Ethernet adapters fail for three reasons: heat, vibration, and moisture. The SREA-01 was engineered with all three in mind, and our stock units are verified against each before dispatch.

Thermal Performance: The SREA-01 operates continuously at 55 °C ambient — the kind of temperature you find inside a drive cabinet in a steel mill or a compressor room in summer. The PCB uses conformal coating on critical traces to prevent thermal cycling cracks. In our experience, modules that fail prematurely in hot environments almost always have a root cause in inadequate cabinet ventilation, not the module itself. Before installing a replacement, verify your cabinet’s cooling is functioning and the drive’s internal fan is operational.

Vibration Resistance: The option slot mounting system uses a positive-retention clip that keeps the module seated under IEC 60068-2-6 vibration profiles. We’ve seen SREA-01 units outlast the drives they were installed in on paper machine frames and compressor skids — environments where the vibration spectrum would shake loose lesser connectors. If you’re in a high-vibration application, apply a small bead of non-conductive thread-lock compound to the slot cover screws after installation.

Humidity and Contamination: The conformal coating on the SREA-01 PCB provides protection against condensation and airborne contaminants — a real concern in food processing plants and coastal installations. For environments with aggressive chemical vapors (ammonia, chlorine), inspect the module’s RJ45 port contacts annually. Gold-plated contacts resist corrosion, but nothing is immune to prolonged chemical exposure.

Our Pre-Shipment Verification: Every SREA-01 leaving our Xiamen warehouse is powered up, inserted into a compatible drive test rig, and verified for Ethernet link establishment and parameter communication before packing. We don’t ship modules that haven’t been confirmed functional. You get a unit that works on the first installation attempt — because you don’t have time for a second.

Global Express Logistics

Xiamen is one of China’s primary export hubs, with direct DHL and FedEx gateway facilities. This is not a coincidence for our operation — it means your replacement module moves from our shelf to an international flight in hours, not days.

Our Standard Dispatch Process:

• Order confirmed before 15:00 CST: Module is picked, ESD-packed, and handed to DHL/FedEx courier the same business day.
• Export documentation: We handle commercial invoice, packing list, and HS code declaration (HS 8537.10) in-house. No delays waiting for paperwork.
• Typical transit times: Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 3–4 days | Australia 3–4 days.
• Tracking: AWB number sent to your email within 2 hours of dispatch. Real-time tracking link included.
• Customs clearance: We declare accurate commercial values and provide all documentation required for smooth customs clearance. For customers in the EU, we can ship DAP or DDP — specify at order time.
• Emergency freight: For genuine production-critical situations, we can arrange FedEx First Overnight to select destinations. Contact us on WhatsApp for availability and pricing.

We’ve shipped SREA-01 units to automotive plants in Germany, petrochemical facilities in Saudi Arabia, water treatment stations in Australia, and food processing lines in the United States. The logistics process is the same every time — fast, documented, and tracked end to end.
