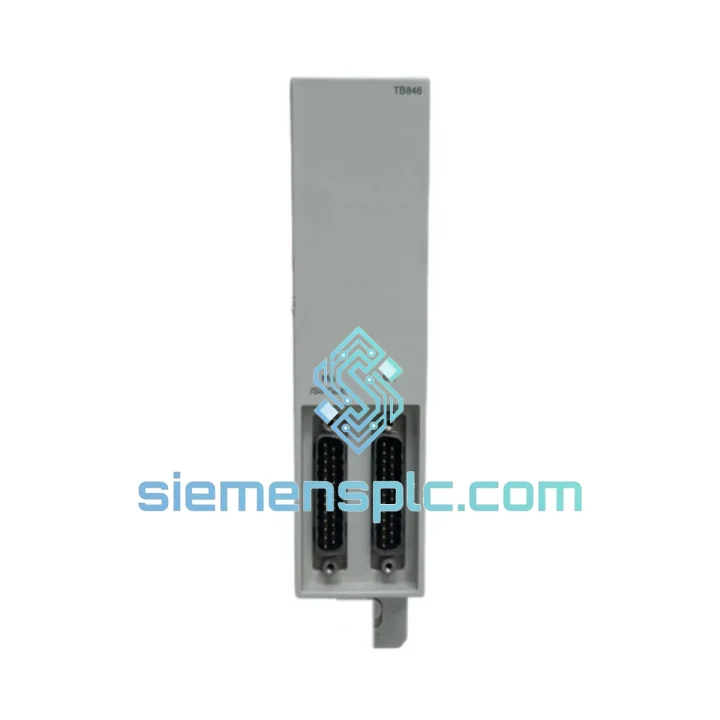

ABB TB846 (3BSE021439R1): S800 I/O Termination Unit in 800xA Distributed Control Architecture

The ABB TB846, catalogued under part number 3BSE021439R1, is a passive termination unit (TU) engineered specifically for the ABB S800 I/O series — the field-level I/O subsystem deployed across ABB’s 800xA, AC800M, and Freelance DCS platforms. Its primary function within a control loop is to decouple field wiring from the active I/O module, establishing a fixed, stable termination point that persists independently of module insertion or removal. This architectural separation is not cosmetic: it directly governs maintenance cycle duration, signal continuity during module swap events, and long-term wiring integrity in high-density marshalling cabinets.

In process industries where unplanned downtime carries measurable financial consequence — typically USD 10,000–500,000 per hour depending on plant type — the TB846’s hot-swap architecture eliminates the need to de-energize field loops or disconnect instrument cables during corrective maintenance. Field signals remain terminated and electrically stable at the TU while the I/O module above is extracted and replaced. This characteristic alone justifies the TB846’s role as a mandatory spare in any S800-based plant’s MRO inventory.

The TB846 interfaces with its matched S800 I/O module via a precision module connector that establishes both signal and power continuity. Field wiring — whether 4–20 mA analog loops, discrete 24 VDC signals, RTD two/three/four-wire configurations, or thermocouple inputs — terminates at the TB846’s screw-clamp terminals. The I/O module then reads or drives these signals through the connector interface, processing them via its internal ADC/DAC circuitry before transmitting data over the S800 ModuleBus to the AC800M controller’s I/O bus interface. This layered signal path ensures that field wiring topology is never altered by module-level maintenance actions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TB846’s hardware design reflects ABB’s modular I/O philosophy: separate the field interface layer from the signal-processing layer. At the physical level, the termination unit houses a set of screw-clamp terminal blocks rated for conductor cross-sections typically in the 0.2–2.5 mm² range, accommodating both solid and stranded field cable. The terminal block layout follows a channel-paired arrangement, grouping signal and return conductors to minimize inter-channel crosstalk within the marshalling space.

The module connector — the mechanical and electrical interface between the TB846 and its matched S800 I/O module — is a multi-pin edge connector designed for repeated insertion cycles without contact degradation. This connector carries both the field signal lines and the low-voltage power rails required by the I/O module’s internal circuitry. The passive nature of the TB846 means it introduces no active components into the signal path: there are no op-amps, no ADCs, and no microcontrollers on the TU board. Signal conditioning, isolation, and digitization are entirely handled by the I/O module above.

From an EMC standpoint, the TB846’s PCB layout routes field signal traces with controlled impedance and minimal loop area, reducing susceptibility to radiated interference from adjacent power cables in the marshalling cabinet. The DIN rail mounting provides a low-impedance chassis ground path, which, when combined with proper cabinet grounding practice, contributes to the overall EMC performance of the S800 I/O assembly. The IP20 enclosure rating is appropriate for installation inside sealed control cabinets where the primary EMC barrier is the cabinet itself.

The hot-swap mechanism relies on the physical separation of the field wiring layer (TB846) from the active electronics layer (I/O module). When the I/O module is extracted, the field terminals remain connected and the signal lines are simply open-circuited at the connector interface — no field loop is broken, no instrument is disturbed. The AC800M controller detects the module absence via the ModuleBus communication timeout and raises a diagnostic alarm, but the field wiring remains intact and ready for the replacement module to re-establish the signal path within seconds of insertion.

System Integration Benefits

• Zero field-wiring disturbance during module replacement: Maintenance technicians swap the I/O module without touching a single field cable, eliminating the risk of miswiring during corrective maintenance and reducing mean time to repair (MTTR) by 60–80% compared to direct-wired I/O architectures.
• Deterministic signal path from field to controller: The fixed termination point at the TB846 ensures that field signal routing is defined at commissioning and never altered by subsequent module changes, preserving loop calibration data and instrument range settings.
• Diagnostic transparency at the controller level: The AC800M controller continuously polls the S800 ModuleBus; module absence or communication fault is reported within one bus scan cycle (typically <10 ms), enabling the DCS operator to identify the exact module slot in fault without physical cabinet inspection.
• High-density cabinet utilization: The TB846’s compact DIN rail footprint allows marshalling cabinets to achieve I/O densities consistent with S800 system design guidelines, reducing cabinet count and associated installation costs in large-scale projects.
• Backward compatibility across S800 generations: The TB846 / 3BSE021439R1 is compatible with multiple generations of S800 I/O modules, protecting the field wiring investment when upgrading I/O modules to newer hardware revisions.
• Reduced commissioning risk: Pre-wiring the TB846 before I/O module installation allows field cable termination to be completed and verified independently of module availability, decoupling the field wiring schedule from the module delivery schedule.
• Standardized spare parts management: A single TB846 variant covers a defined set of S800 I/O module types, simplifying the plant’s spare parts inventory and reducing the number of unique line items in the MRO catalog.
• Compliance with IEC 61511 functional safety practices: The physical separation of field wiring from active electronics supports proof-test procedures for safety instrumented systems (SIS) by allowing the I/O module to be removed and bench-tested without disturbing the field loop, consistent with IEC 61511-1 maintenance requirements.

Quality Assurance & Global Logistics

Every ABB TB846-3BSE021439R1 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full documentation traceability. Prior to dispatch, each unit undergoes a structured inspection protocol: visual examination of the PCB, terminal blocks, and module connector for mechanical damage; label verification against the ABB part number and revision database; and a functional pre-check confirming connector integrity and terminal continuity. Units are classified by condition — New, Surplus New, or Refurbished — and this classification is confirmed in writing at the time of order acknowledgment.

Packaging follows ESD-safe handling standards: each unit is sealed in an anti-static poly bag, cushioned with conductive foam, and enclosed in a rigid outer carton with moisture-barrier liner. This packaging specification is consistent with ABB’s own factory packaging guidelines and ensures the unit arrives at the destination site in the same condition it left our Xiamen warehouse.

Logistics operations are managed from Xiamen, China — a major port city with direct access to international freight lanes serving Europe, North America, Southeast Asia, and the Middle East. In-stock units ship within 1–3 business days of order confirmation. International delivery via DHL Express, FedEx International Priority, or UPS Worldwide Express typically achieves transit times of 3–7 business days to major industrial hubs. For project-critical deliveries, expedited freight options are available on request. All shipments include a commercial invoice, packing list, and airway bill; export documentation for customs clearance is prepared in accordance with the destination country’s import requirements.
