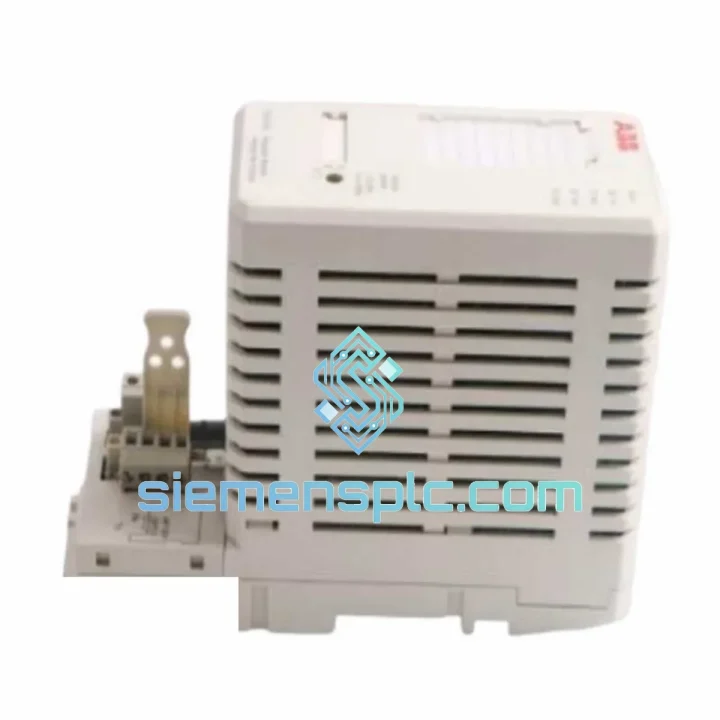

ABB TC514V2 3BSE013281R1 PROFIBUS Repeater – AC500

ABB TC514V2 3BSE013281R1 PROFIBUS Twisted Pair Opto Repeater Module — Signal Architecture & Control Loop Role

The ABB TC514V2, catalog reference 3BSE013281R1, is a dedicated RS-485 to optical fiber repeater engineered for PROFIBUS DP segment extension and galvanic isolation in industrial fieldbus networks. Its primary function within a control loop is to regenerate and re-time PROFIBUS DP signals between copper twisted-pair segments and fiber-optic trunks, eliminating cumulative signal degradation that occurs across long cable runs or in high-EMI environments. In distributed control architectures — particularly those built around the ABB AC500 PLC family — the TC514V2 serves as the physical-layer bridge that maintains deterministic bus timing across geographically separated cabinet clusters.

Unlike passive couplers, the TC514V2 performs active signal regeneration: it receives the RS-485 differential signal, reconstructs the bit stream at full amplitude, and retransmits it via optical output with sub-microsecond latency contribution. This characteristic is critical in PROFIBUS DP Class 1 master configurations where bus cycle time budgets are tight and any jitter accumulation risks triggering watchdog faults on slave devices.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: The TC514V2 implements full galvanic isolation between its RS-485 copper interface and the optical fiber port. The isolation barrier is achieved through an LED-photodiode coupling stage rated for continuous operation, which breaks any ground potential difference between connected network segments. In industrial plants where cabinet ground references can differ by tens of volts due to long cable runs or shared power infrastructure, this isolation prevents ground loop currents from corrupting PROFIBUS telegram integrity — a failure mode that manifests as intermittent CRC errors and is notoriously difficult to diagnose without proper isolation hardware in place.

Baud Rate Auto-Detection: Rather than requiring manual DIP-switch configuration for each supported baud rate, the TC514V2 employs an adaptive timing circuit that measures the incoming bit period and adjusts its retransmission timing accordingly. This eliminates a common commissioning error where repeaters are misconfigured for the wrong baud rate, causing asymmetric propagation delays that violate PROFIBUS slot time constraints at higher speeds (3 Mbps and above).

EMC Design: The module’s PCB layout incorporates a ground plane separation strategy between the RS-485 input stage and the optical transmitter/receiver circuitry. Ferrite bead filtering on the 24 V DC supply input attenuates conducted emissions from the control cabinet power rail. The housing, while IP20 rated, uses a conductive coating on internal surfaces to provide shielding against radiated interference — relevant in environments with variable-frequency drives or high-current switching equipment operating in adjacent cabinet bays.

Signal Regeneration vs. Passive Coupling: Passive PROFIBUS taps and terminators do not regenerate signal amplitude; they simply split or terminate the bus. The TC514V2 performs full signal reconstruction: the incoming RS-485 differential pair is sampled, the bit stream is decoded, and a fresh, full-amplitude signal is transmitted on the output side. This means that noise accumulated over a long copper segment does not propagate into the fiber trunk or the downstream copper segment — each segment starts with a clean signal budget.

Fiber Topology Flexibility: The module supports both point-to-point and ring topology configurations when used in pairs or multiples. In ring mode, a broken fiber link can be detected and the network can be reconfigured to maintain communication on the surviving path — a capability relevant in process industries where network availability directly impacts production continuity.

System Integration Benefits

• Extended Physical Reach: Copper PROFIBUS segments are limited to 1,200 m at 9.6 kbps and as little as 100 m at 12 Mbps. The TC514V2 extends effective network reach to 3,000 m per fiber span, enabling single-master architectures across large plant footprints without introducing additional PLC hardware.
• Deterministic Bus Timing Preservation: Active signal regeneration ensures that the PROFIBUS DP slot time budget is not eroded by passive signal attenuation. The sub-microsecond propagation delay contribution of the TC514V2 is predictable and constant, allowing accurate bus cycle time calculation in Proficy or ABB Automation Builder configurations.
• Ground Loop Elimination: Galvanic isolation removes the most common source of intermittent PROFIBUS faults in multi-cabinet installations. Maintenance teams no longer need to investigate ground potential differences as a diagnostic variable when CRC error rates increase.
• Diagnostic Transparency: The module provides LED status indicators for power, RS-485 activity, and fiber link status. These indicators allow field technicians to isolate faults to a specific segment without requiring a PROFIBUS analyzer — reducing mean time to repair (MTTR) in fault scenarios.
• Segment Fault Containment: A fault on one copper segment (short circuit, cable break) does not propagate across the optical isolation barrier to adjacent segments. This limits the blast radius of a physical cable fault to a single segment rather than taking down the entire PROFIBUS network.
• High-EMI Environment Suitability: Fiber optic transmission is inherently immune to electromagnetic interference. In environments with large motor drives, welding equipment, or high-voltage switchgear, the fiber trunk between TC514V2 units carries no electrical signal and therefore cannot pick up induced noise — a fundamental advantage over all-copper network designs.
• Scalable Network Architecture: Multiple TC514V2 units can be cascaded to extend the network across multiple fiber spans. Each repeater regenerates the signal independently, so the signal quality on the final segment is identical to that on the first — there is no cumulative degradation with each hop.
• Reduced Commissioning Risk: Auto baud rate detection eliminates manual configuration steps during installation. Engineers can replace a failed unit in the field without consulting documentation for baud rate settings, reducing the probability of commissioning errors during emergency maintenance.

Quality Assurance & Global Logistics

Genuine ABB Hardware: Every TC514V2 3BSE013281R1 unit supplied by siemensplc.com is sourced through verified industrial supply channels. Units are inspected for label authenticity, correct part number markings, housing integrity, and connector condition prior to dispatch. We do not supply counterfeit, relabeled, or misrepresented components.

12-Month Warranty: All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through siemensplc.com with a documented RMA procedure.

Xiamen Export Hub: Our operations are based in Xiamen, Fujian Province — one of China’s primary international trade ports with direct sea and air freight connections to major global logistics hubs. DHL Express, FedEx International Priority, and UPS Worldwide Expedited services are available for time-sensitive orders. Sea freight (LCL and FCL) is available for bulk procurement. Typical air freight transit times: Southeast Asia 2–4 days, Europe 4–6 days, Americas 5–7 days.

Customs Compliance: All shipments are accompanied by a commercial invoice, packing list, and certificate of origin. HS code classification support is provided for import customs clearance. Xiamen Customs declaration is handled in full compliance with Chinese export regulations. Multi-currency payment is accepted: USD, EUR, HKD, and CNY via T/T bank transfer, PayPal, and major credit cards.

Export Documentation Package: Commercial invoice · Packing list · Certificate of origin · Inspection certificate · Datasheet (upon request) · Compliance certificates (CE, RoHS) upon request for import purposes.
