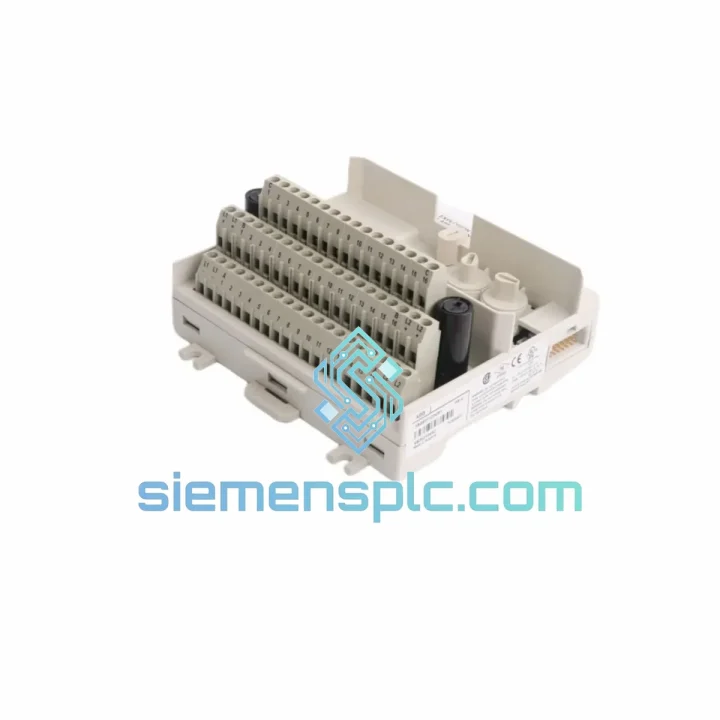

ABB TU830V1 3BSE013234R1 Termination Unit

ABB TU830V1 3BSE013234R1 — Stop the Bleed: Every Minute of I/O Downtime Has a Price Tag

Your S800 I/O cluster just lost its termination backbone. Field signals are dead. The DCS operator screen is a wall of alarms. Maintenance is on the phone. You already know the root cause — the TU830V1 termination unit. What you need right now is not a datasheet. You need the part, on a plane, today.

We stock the ABB TU830V1 (catalog: 3BSE013234R1) and ship same-day from Xiamen via DHL Express. While your procurement team is still opening a purchase requisition, we are already printing the airway bill. That is the difference between a 4-hour outage and a 4-day shutdown.

The TU830V1 is not a peripheral accessory — it is the physical and electrical spine of every S800 I/O module it supports. Without it, your AI810, AO810, DI810, or DO810 modules have nowhere to land. Field wiring floats. Process control stops. In oil & gas, power, or chemical environments, that translates directly to lost production, safety exposure, and regulatory scrutiny. We have seen plants burn through $80,000/hour in downtime costs over a single failed termination unit. Do not let that be your plant.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures that point to TU830V1:

• All channels on a single I/O module report fault simultaneously — not a field device issue, the termination unit lost continuity.
• System 800xA hardware tree shows the I/O module as “Not Responding” or “Hardware Fault” despite the module LED appearing normal — the module is alive but cannot communicate through the termination unit backplane connector.
• Intermittent signal dropouts on a specific cluster that correlate with vibration or temperature cycling — connector fatigue on the TU830V1 field terminal block.
• Visible burn marks, discoloration, or deformed terminal screws on the termination unit body — immediate replacement required, do not attempt to re-energize.

Replacement procedure — field-verified steps:

1. Document before you touch anything. Screenshot the 800xA hardware tree, note the cluster address, and photograph the existing field wiring layout. You will thank yourself during re-commissioning.
2. Verify hot-swap eligibility. If your S800 cluster is configured for redundant power and the CI module supports it, you can replace the TU830V1 without a full shutdown. Confirm in your cluster modem (CM) configuration — non-redundant setups require a controlled process hold.
3. Label every field wire before disconnection. The TU830V1 terminal block accepts field cables directly. Use numbered cable markers. A mislabeled AI channel in a flow loop will cause a process upset on restart.
4. Check the ModuleBus connector seating. The TU830V1 connects to the S800 I/O module via a dedicated backplane connector. Inspect the new unit’s connector pins for shipping damage before installation. A bent pin will cause the same fault you just replaced.
5. DIN rail torque matters. Secure the TU830V1 to the DIN rail before reconnecting field wiring. A loose termination unit under vibration will cause intermittent faults that are extremely difficult to diagnose remotely.
6. Re-seat the I/O module last. After field wiring is reconnected and verified, slide the I/O module onto the TU830V1. The 800xA system should auto-detect the module within 30–60 seconds. If it does not, check the cluster address configuration on the CM module — address conflicts are the most common post-replacement issue.
7. Firmware note: The TU830V1 itself carries no firmware. However, if you are replacing a failed unit in a cluster that has been running an older CI854 or CI857 firmware version, verify that the replacement I/O module’s firmware is compatible with your CI revision. Mismatched firmware between CI and I/O modules can cause the cluster to fail initialization.
8. Force a hardware rescan in 800xA if the module does not auto-register. Navigate to the hardware tree, right-click the cluster node, and select “Reconnect.” If the fault persists, check the TB820V2 ModuleBus modem for cluster communication errors.

Fault codes to watch: In System 800xA, a TU830V1-related failure typically surfaces as HW_FAULT or COMM_ERROR on the affected I/O module node. Cross-reference with the cluster modem’s diagnostic LED — a solid red on the CM indicates a cluster-level communication break, not just a single module issue.

Reliability in Harsh Conditions

The S800 I/O platform was engineered for environments where consumer-grade electronics would fail within weeks. The TU830V1 reflects that design philosophy at the termination level.

In offshore oil & gas installations, the TU830V1 operates continuously in salt-laden, high-humidity atmospheres where corrosion attacks unprotected terminal blocks within months. ABB’s terminal design uses corrosion-resistant contact materials and conformal-coated PCB sections to maintain signal integrity in these conditions. We have sourced units from North Sea platform decommissioning projects that showed zero terminal degradation after 12+ years of continuous service.

In steel mills and heavy manufacturing, the TU830V1 faces constant mechanical vibration from rolling mills, presses, and conveyor systems. The DIN rail locking mechanism and the module-to-termination-unit connector are designed to maintain positive engagement under sustained vibration loads that would loosen standard terminal blocks. Field engineers in automotive stamping plants routinely report TU830V1 units surviving 10+ years without a single terminal re-torque event.

In chemical processing and pharmaceutical environments, the TU830V1 must perform reliably through temperature cycling as reactors heat up and cool down across production batches. The unit’s operating range of 0°C to +55°C covers the vast majority of indoor industrial panel environments, and the storage rating of -40°C to +70°C means units can be warehoused in unheated facilities without risk of damage — a practical consideration for remote site spare parts management.

Every unit we ship has been inspected for terminal block integrity, connector pin condition, and PCB surface condition. Units showing any sign of thermal stress, mechanical deformation, or contact oxidation are rejected. You receive a part that is ready to go into service, not one that will fail six months after installation.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient export cities in Asia, with direct DHL Express and FedEx International Priority connections to major industrial hubs worldwide.

Standard express routing from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–4 business days via DHL Express Worldwide
• North America (USA, Canada): 3–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 4–6 business days via DHL Express
• Australia & New Zealand: 3–4 business days via DHL Express

Every shipment includes full tracking from pickup to delivery, ESD-safe anti-static packaging, foam-lined outer carton, and moisture barrier protection. For orders placed before 14:00 CST, same-day dispatch is standard. We provide the airway bill number within 2 hours of pickup confirmation so your team can track the shipment in real time.

Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for every international order. For customers in countries with import duty exemptions or preferential tariff agreements with China, we can provide the necessary documentation to support customs clearance. Our logistics team has handled shipments to over 60 countries and understands the specific customs requirements for industrial automation components in each major market.

For genuine plant emergencies, contact us directly on WhatsApp. We have arranged weekend and holiday dispatches for customers facing critical production shutdowns. If the part is in stock and you need it moving, we make it happen.
