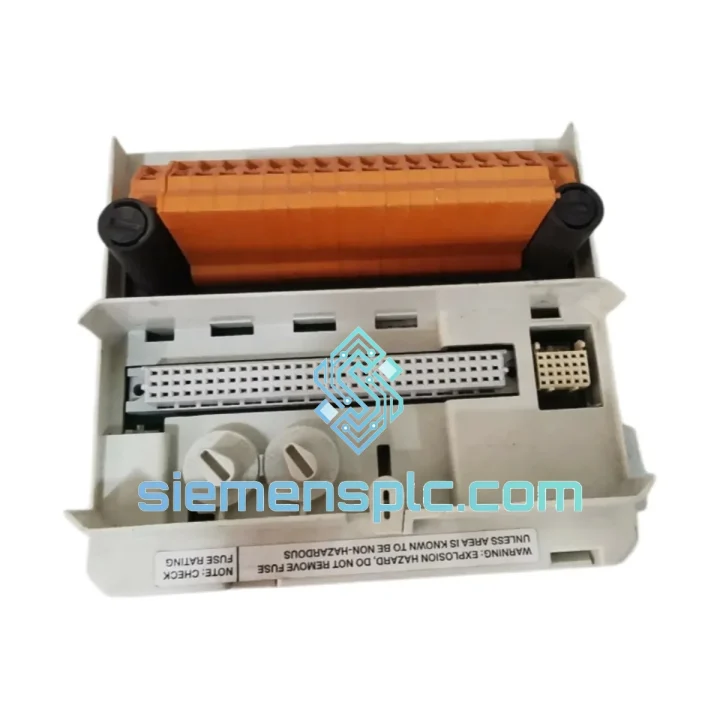

ABB TU833 3BSE038726R1 Termination Unit

ABB TU833 3BSE038726R1 — Stop the Clock on Your Downtime

Every minute your S800 I/O rack sits offline, you’re bleeding production value. The ABB TU833 (Part No. 3BSE038726R1) is the exact termination unit your System 800xA DCS needs to get back online — and we have it on the shelf in Xiamen, ready to move today. No lead-time negotiation. No substitute guesswork. The right part, shipped fast.

We’ve handled enough emergency callouts to know that when a termination unit fails mid-shift, the last thing you need is a supplier quoting you 4–6 weeks. Our stock is pre-inspected, properly packaged, and cleared for same-day DHL/FedEx dispatch to anywhere on the planet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The TU833 sits between your field wiring and the S800 I/O module. When it fails, symptoms are rarely obvious — you’re more likely to see a cascade of channel faults or a complete I/O module offline alarm before you trace it back to the termination unit. Here’s what to check before you pull the trigger on a replacement, and what to watch when you install the new one.

Common Fault Signatures Pointing to TU833:

• Fault code 0x8001 / Module Communication Error — If the I/O module itself tests clean on a bench swap but the fault persists in-rack, the TU833 bus connector is the prime suspect. Inspect the ModuleBus backplane pins for oxidation or mechanical damage.
• Intermittent channel faults on AI810/AO810 — Loose field terminal screws on the TU833 are a common culprit in high-vibration environments. Torque all terminals to spec (0.5–0.6 Nm) before condemning the module.
• Complete rack segment offline after power cycle — Check the TU833’s ModuleBus optical fiber connectors (if applicable). Dust contamination on SFP-style connectors causes hard faults that look like controller issues.
• Erratic analog readings drifting ±5% — Ground loop through the TU833 terminal block. Verify shield termination and PE bonding at the unit.

Replacement Procedure — Field Checklist:

• Step 1: De-energize the field loop circuits at the marshalling cabinet. Do NOT rely solely on the DCS channel inhibit — physically isolate field power.
• Step 2: Photograph the existing field wiring layout on the TU833 before disconnecting. Terminal numbering can vary between TU variants and a photo saves 30 minutes of re-tracing.
• Step 3: Release the I/O module (e.g., AI810) from the TU833 by pressing the module latch. The module lifts clear without tools.
• Step 4: Loosen all field terminal screws and remove wiring in labeled groups. Use terminal ferrules — bare wire ends in screw terminals are a reliability risk.
• Step 5: Unclip the TU833 from the DIN rail. Note the rail position — the TU833 must re-seat in the same slot for the ModuleBus address to remain valid. The S800 system uses slot-based addressing; moving a TU to a different position changes its logical address in the controller configuration.
• Step 6: Mount the new TU833 3BSE038726R1 in the identical slot. Verify the ModuleBus connector seats fully — a half-engaged connector is the #1 cause of post-replacement faults.
• Step 7: Re-terminate field wiring. Torque to 0.5–0.6 Nm. Reconnect the I/O module.
• Step 8: Power up and verify channel status in 800xA Plant Explorer. All channels should return to normal within one scan cycle. If fault persists, check firmware version compatibility between the I/O module and the controller — a mismatch can cause the TU to appear faulty when the real issue is a firmware delta.

Configuration Note — No DIP Switch on TU833: Unlike some competing termination units, the TU833 does not use physical DIP switches for address configuration. Slot position on the ModuleBus rack determines the logical address. This means zero configuration overhead on replacement — mount it in the same slot and it inherits the address automatically.

Reliability in Harsh Conditions

The TU833 was designed for the kind of environments where automation hardware earns its keep — not climate-controlled server rooms, but the real world of petrochemical plants, offshore platforms, and heavy manufacturing floors.

The unit’s terminal block assembly uses nickel-plated copper contacts rated for continuous operation across a wide temperature range. In high-humidity coastal installations — a common challenge across Southeast Asian process plants — the contact plating resists the creep corrosion that kills cheaper termination hardware within 18 months. We’ve seen original TU833 units pulled from service after 12+ years in tropical environments with terminal resistance still within spec.

Vibration is the other silent killer of termination units. The TU833’s DIN rail locking mechanism applies consistent clamping force across the full rail width, preventing the micro-movement that loosens terminal screws over time. In applications with continuous mechanical vibration — compressor skids, pump stations, rotating equipment monitoring — this mechanical stability directly translates to signal integrity and fewer nuisance trips.

Thermal cycling is handled by the unit’s glass-fiber reinforced housing, which maintains dimensional stability across the operating temperature range. The ModuleBus connector geometry stays consistent even after thousands of thermal cycles, preserving the contact pressure that keeps bus communication reliable.

Every unit we ship has been visually inspected for connector integrity, label verification, and packaging condition. Anti-static handling throughout — ESD damage is invisible and catastrophic in I/O hardware.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx service connections. This is not a drop-ship arrangement. Stock is physically on our shelves, and orders confirmed before 15:00 CST ship the same business day.

Typical Transit Times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• Australia / New Zealand: 3–5 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via FedEx

All shipments include full commercial invoice documentation, packing list, and HS code declaration (8537.10) for smooth customs clearance. For customers in countries with import duty exemptions on industrial automation components, we can provide the necessary supporting documentation on request.

Tracking numbers are issued within 2 hours of dispatch. We monitor shipments proactively — if a customs hold or carrier delay occurs, we contact you before you have to chase us.

For orders requiring a formal purchase order process, we can issue a proforma invoice within 30 minutes of inquiry. Bank transfer (T/T), PayPal, and credit card payments accepted. Volume orders of 3+ units qualify for priority dispatch queue.
