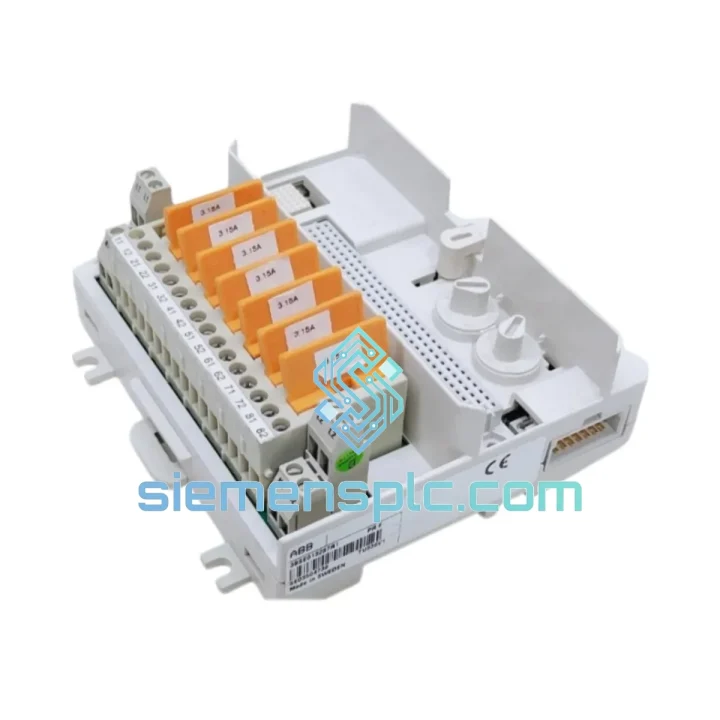

ABB TU836V1 3BSE013237R1 Termination Unit – S800 I/O

ABB TU836V1 (3BSE013237R1): Field Wiring Backbone of the S800 I/O Architecture

In a distributed control system, the termination unit is not a passive connector block — it is the structured interface layer that determines signal fidelity, wiring discipline, and module swap integrity across the entire I/O chain. The ABB TU836V1, carrying part number 3BSE013237R1, is the designated termination unit for specific S800 I/O modules operating within ABB’s AC800M controller platform. Its role in the control loop is precise: it decouples field wiring from the I/O module’s electronic assembly, enabling hot-swap module replacement without breaking field signal continuity or requiring re-termination of field cables. In plants where a single I/O channel failure can cascade into a process trip, this architectural separation is not a convenience — it is a fundamental risk mitigation strategy.

The S800 I/O system is deployed across oil & gas, power generation, chemical processing, and pulp & paper industries globally. Within this ecosystem, the TU836V1 serves as the physical anchor point for field instrumentation wiring, maintaining terminal block integrity under continuous vibration, thermal cycling, and the mechanical stress of repeated cable connections during commissioning and maintenance cycles. Understanding its hardware design is essential for any engineer responsible for system availability.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TU836V1 is engineered around a core principle: the I/O module’s signal processing electronics must never be mechanically coupled to field wiring stress. This is achieved through a two-part mechanical assembly — the termination unit remains permanently mounted in the cabinet with field cables attached, while the I/O module plugs into it via a backplane connector. The mating interface uses a guided, keyed connector system that prevents mis-insertion and ensures consistent contact resistance across the signal pins.

Terminal Block Integrity: The screw-clamp terminal blocks on the TU836V1 are rated for a defined torque specification that maintains contact force within the elastic deformation range of the conductor. This prevents cold-flow relaxation in copper conductors over time — a common failure mode in high-vibration environments such as compressor stations or turbine halls. The terminal pitch is designed to accommodate standard field cable cross-sections without requiring ferrules, though ferrule use is recommended for stranded conductors in high-vibration applications.

EMC Design Architecture: The TU836V1’s PCB layout routes field-side signals through a defined ground plane separation from the module-side bus interface. This physical separation provides a first-order barrier against common-mode noise injection from field cables — particularly relevant in environments with variable-frequency drives (VFDs) or high-current switching loads in adjacent cable trays. The chassis ground connection point on the TU836V1 provides a low-impedance path for shield drain wires, which is critical for analog input channels where shield termination directly affects signal-to-noise ratio.

Hot-Swap Architecture: The S800 I/O system’s hot-swap capability depends on the TU836V1 maintaining stable field signal termination while the I/O module is removed and reinserted. The connector design ensures that field signal pins are the last to make contact during module insertion and the first to break during removal — a sequencing that prevents transient voltage spikes from reaching the module’s input protection circuitry during live swap operations.

Redundancy Support: In redundant I/O configurations within the AC800M architecture, the TU836V1 supports dual-module mounting arrangements where two I/O modules share a single field wiring termination point. The internal bus routing on the TU836V1 arbitrates between the active and standby module paths, with switchover managed by the AC800M’s redundancy supervisor without field signal interruption.

System Integration Benefits

• Zero field re-wiring during module replacement: Field cables remain terminated on the TU836V1 throughout the module’s service life. Replacement of a failed I/O module requires only module extraction and reinsertion — no screwdriver contact with field terminals, eliminating the risk of wiring errors during maintenance under time pressure.
• Deterministic signal path from field to controller: The TU836V1’s fixed terminal-to-connector mapping ensures that channel-to-tag assignments remain constant regardless of how many times the I/O module has been replaced. This is critical for maintaining loop integrity in safety instrumented systems (SIS) where channel identity must be traceable to the physical tag.
• Reduced MTTR in fault conditions: Mean time to repair is directly reduced because maintenance personnel can swap the I/O module without consulting wiring diagrams for re-termination. In a 24/7 continuous process plant, this can reduce a channel restoration from 45–90 minutes to under 10 minutes.
• Diagnostic transparency via AC800M: When paired with the AC800M controller and System 800xA, the TU836V1’s module interface supports hardware diagnostic reporting at the channel level. Open-circuit, short-circuit, and out-of-range conditions are reported to the DCS operator station with channel-specific fault codes, enabling targeted field investigation rather than broad troubleshooting.
• Consistent grounding topology: The TU836V1 provides a defined shield termination point for each field cable, ensuring that the grounding topology designed during engineering is physically implemented at the termination unit — not improvised at the cable tray. This consistency is measurable: plants with disciplined shield termination at the TU level typically show 15–30 dB lower common-mode noise on analog channels compared to installations with ad-hoc grounding.
• Compatibility with S800 I/O cluster expansion: The TU836V1 integrates directly into S800 I/O cluster configurations driven by CI854 or CI857 cluster modems, supporting ModuleBus optical or electrical topologies. This allows the termination unit to participate in large-scale I/O expansions without requiring additional interface hardware.
• Long-term spare parts availability: ABB’s S800 I/O platform has a documented long-term support commitment. The TU836V1’s form factor and connector standard have remained stable across multiple generations of S800 I/O modules, meaning a TU836V1 purchased today is compatible with both current and legacy S800 I/O modules in the same rack.
• Reduced commissioning errors: The keyed connector interface between the TU836V1 and the I/O module physically prevents incorrect module type insertion. This hardware interlock eliminates a class of commissioning errors that would otherwise require software diagnostics to detect — errors that, in a live plant environment, could result in incorrect field signal routing.

Quality Assurance & Global Logistics

Every ABB TU836V1 (3BSE013237R1) dispatched from our Xiamen facility is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Visual inspection covers connector pin condition, label legibility, PCB surface integrity, and terminal block mechanical function. Units sourced from decommissioned installations undergo additional continuity verification across all signal paths before being classified as tested surplus.

Packaging follows ESD-safe handling standards: each unit is sealed in an anti-static poly bag, cushioned with closed-cell foam, and packed in a double-wall corrugated carton rated for international air freight handling. For multi-unit orders, individual units are separated by foam dividers to prevent contact damage during transit.

Export documentation is prepared in-house and includes commercial invoice, packing list, certificate of origin, and HS code declaration (8537.10). For customers requiring additional documentation — CE declaration, factory test reports, or material safety data — these are coordinated at the time of order confirmation.

Logistics from Xiamen operates via DHL Express, FedEx International Priority, and UPS Worldwide Express. Transit times to major industrial hubs: Southeast Asia 2–3 days, Middle East 3–4 days, Europe 4–5 days, North America 5–6 days. For urgent plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. Sea freight consolidation is available for bulk orders where air freight cost is a constraint.

All shipments are covered by a 12-month warranty from the date of dispatch. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued upon fault confirmation.
