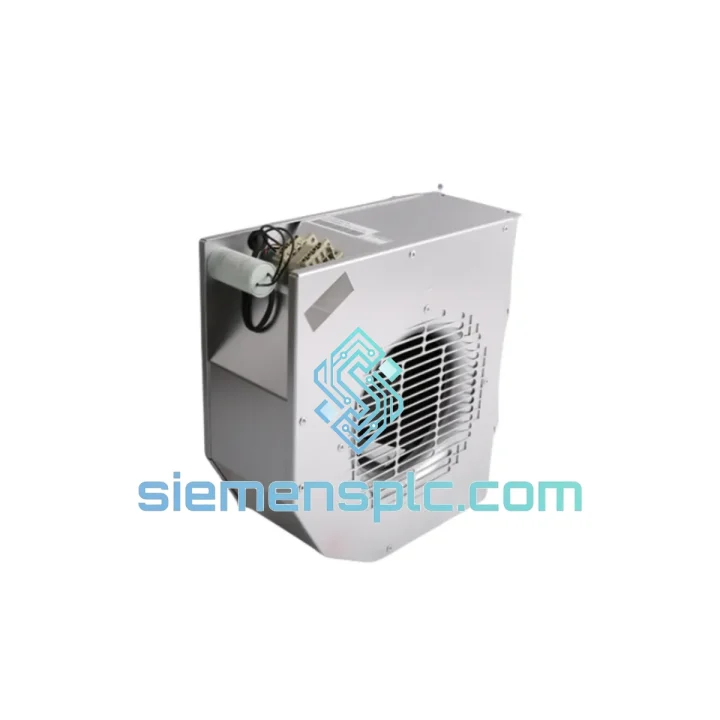

ABB WS FAN 230 68442966 Cooling Fan Kit – ACS800 Series

ABB WS FAN 230 68442966 — Forced-Air Cooling Module for ACS800 Series Variable Frequency Drives

The ABB WS FAN 230 (part number 68442966) is a factory-original forced-air cooling fan kit engineered specifically for the ABB ACS800 series of variable frequency drives. Within a drive’s thermal management architecture, the cooling fan is not a peripheral accessory — it is a load-bearing component of the power dissipation path. The ACS800 platform dissipates heat primarily through forced convection across the IGBT module heatsink. Any degradation in airflow volume or velocity directly elevates junction temperature, compresses IGBT safe operating area margins, and accelerates electrolytic capacitor aging. The WS FAN 230 is dimensioned to maintain the heatsink thermal resistance (Rth) within ABB’s specified envelope across the full rated output current range of the drive frame it serves.

This unit is stocked and dispatched from Xiamen, China, with verified part traceability and 12-month quality assurance. For volume procurement, blanket purchase orders, or urgent replacement requirements, contact our engineering sales team directly.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The WS FAN 230 operates within the ACS800’s internal auxiliary power bus, which is derived from the drive’s control power supply — typically a switched-mode supply referenced to the DC link. This architecture means the fan receives a stable 230 V AC feed independent of the main output voltage, ensuring cooling continuity even during output frequency ramp-down or regenerative braking events when the main power stage is under elevated thermal stress.

The impeller assembly uses a dynamically balanced rotor to suppress vibration-induced bearing fatigue. In industrial environments where the drive cabinet is subject to mechanical vibration from adjacent machinery — compressors, presses, or conveyor gearboxes — an unbalanced impeller would generate resonant frequencies that accelerate ball-bearing wear and produce audible noise signatures detectable during predictive maintenance rounds. The WS FAN 230’s balance specification keeps residual vibration below the threshold that triggers bearing fatigue within the rated service interval.

From an EMC standpoint, the fan motor’s inductive load is managed by the drive’s auxiliary supply filter. The fan does not introduce conducted emissions onto the drive’s control bus because it is electrically isolated from the low-voltage signal circuits. This isolation is structurally enforced by the drive’s internal wiring harness routing, which separates the 230 V AC fan feed from the 24 V DC I/O and fieldbus signal cables by a minimum clearance distance per IEC 60664-1 overvoltage category III requirements.

ABB’s thermal management firmware monitors heatsink temperature via a negative temperature coefficient (NTC) thermistor bonded to the IGBT module baseplate. When heatsink temperature exceeds the configurable threshold (default: 70°C for most ACS800 frames), the firmware logs a warning (A2011) and, if temperature continues to rise, triggers a fault trip (F2011). A degraded or failed WS FAN 230 is the primary field cause of these fault codes. Replacing the fan kit restores the thermal margin and clears the fault without requiring drive parameter reset.

System Integration Benefits

• OEM Dimensional Compliance: The WS FAN 230 is a drop-in replacement with no bracket modification, adapter plate, or wiring harness rework required. Mounting hole pattern, connector pinout, and airflow direction are identical to the factory-installed unit, reducing replacement labor to under 30 minutes for a trained technician.
• Deterministic Thermal Response: By restoring the designed airflow volume, the replacement fan returns the drive’s heatsink-to-ambient thermal resistance to its factory specification, ensuring that the drive’s thermal derating curve operates as documented in the ACS800 hardware manual.
• Fault Code Resolution: Directly addresses ACS800 fault codes F2011 (drive overtemperature) and A2011 (drive overtemperature warning) caused by insufficient cooling airflow, eliminating nuisance trips on production lines.
• Extended IGBT Service Life: Each 10°C reduction in IGBT junction temperature approximately doubles the power semiconductor’s mean time between failures per Arrhenius thermal aging models. Maintaining correct airflow is the single most cost-effective IGBT life extension measure available.
• Capacitor Aging Rate Control: DC bus electrolytic capacitors degrade at a rate proportional to internal temperature. Restoring designed airflow reduces capacitor core temperature, directly extending capacitor service life and deferring costly DC bus capacitor replacement.
• Predictive Maintenance Alignment: ABB recommends fan inspection at 20,000 operating hours and replacement at 40,000 hours. Stocking the WS FAN 230 as a critical spare enables scheduled replacement during planned maintenance windows, avoiding unplanned production stops.
• Diagnostic Transparency: A functioning OEM fan allows the drive’s thermal monitoring firmware to operate within its calibrated range. Aftermarket fans with non-standard airflow curves can cause the NTC thermistor to read within normal range while actual IGBT temperatures are elevated — a condition that OEM replacement eliminates.
• Multi-Site Standardization: For facilities operating multiple ACS800 drives across different frame sizes, the WS FAN 230 part number provides a standardized procurement reference, simplifying spare parts inventory management and reducing the risk of incorrect part substitution.

Quality Assurance & Global Logistics

Every WS FAN 230 unit dispatched from our Xiamen warehouse undergoes a pre-shipment inspection protocol: label integrity verification against ABB part number 68442966, impeller rotation check for bearing freedom and absence of mechanical drag, connector condition inspection for pin corrosion or deformation, and packaging integrity confirmation. Units sourced from ABB-authorized distribution channels carry full OEM traceability — date code, manufacturing batch reference, and country of origin documentation are available upon request for quality-critical procurement processes.

Shipment from Xiamen, China, is available under EXW, FOB Xiamen, or DDP terms depending on buyer preference. Standard in-stock orders are processed within 1–3 business days. Express courier options (DHL, FedEx, UPS) support delivery to most industrial destinations in Europe, Southeast Asia, the Middle East, and the Americas within 3–7 business days. For large-volume orders or project-based procurement, sea freight consolidation and bonded warehouse arrangements are available. Commercial invoice, packing list, and certificate of conformance are provided with every shipment as standard documentation.
