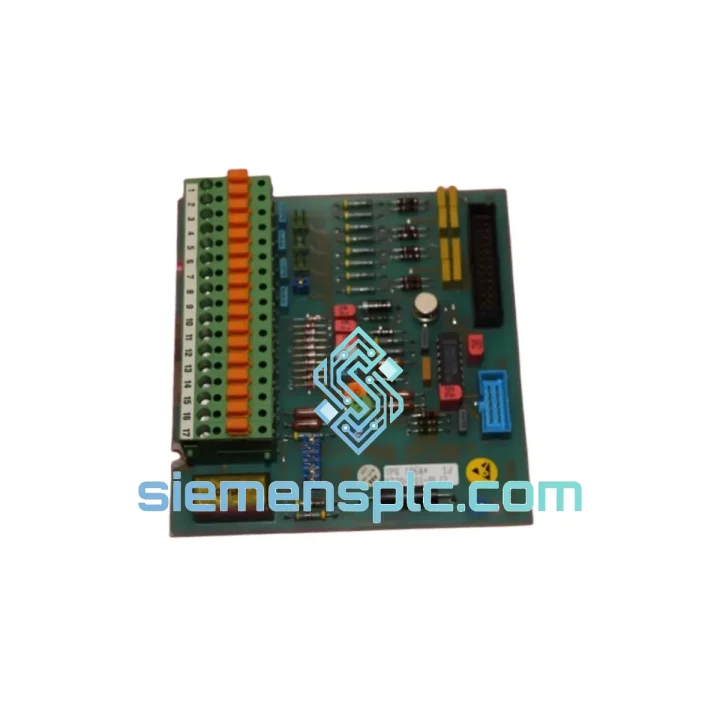

ABB YPG109E 3ASD273001B3 Encoder Interface Board

ABB YPG109E 3ASD273001B3 — Stop the Bleed: Every Minute of Encoder Feedback Loss Costs You Real Money

Your ACS800 drive just tripped on encoder fault. The line is down. Maintenance is staring at a blank screen. You know exactly what failed — the YPG109E pulse encoder interface board — and you need it now, not in three weeks. That’s why we stock it in Xiamen, ready to clear customs and land on your dock faster than your OEM distributor can even confirm availability.

The ABB YPG109E (alternate part number 3ASD273001B3) is the dedicated incremental encoder feedback option board for the ACS800 variable frequency drive platform. Without it, closed-loop vector control is impossible. Your drive reverts to open-loop scalar mode — speed accuracy collapses, torque response degrades, and in tension-critical applications like winding or rolling, product quality goes with it. This is not a board you can run without. It is the board that makes precision motion control possible on one of ABB’s most widely deployed industrial drive families.

We have seen this failure pattern across steel mills in Southeast Asia, paper lines in Europe, and mining conveyors in South America. The failure mode is almost always the same: differential line receiver IC degradation from sustained electrical noise, or physical connector damage from repeated maintenance cycles. The result is always the same too — unplanned downtime that costs ten to a hundred times the price of the board itself. Get the replacement moving today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point to YPG109E failure on ACS800:

• ENCODER ERROR (Fault 35) — Loss of encoder signal. First check cable continuity and shield grounding. If cable checks out, the YPG109E receiver circuit is the next suspect.
• SPEED MEAS FAULT (Fault 34) — Speed measurement deviation exceeds limit. Often caused by intermittent A/B channel signal from a degraded differential receiver on the board.
• MOTOR STALL (Fault 71) — In closed-loop mode, a missing encoder signal causes the drive to lose torque reference. The drive interprets this as a stall condition.

Replacement procedure — field-tested steps:

1. Power down the ACS800 drive completely. Wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify with a multimeter before touching any internal components — the DC bus on ACS800 units can hold lethal voltage well after power-off.
2. Document the DIP switch positions on the existing YPG109E before removal. The encoder supply voltage selection (5 V / 15 V / 24 V) is set via DIP switches SW1 on the board. Photograph it. Replicate exactly on the new board.
3. Note the option slot position. On ACS800 single drives, the YPG109E typically occupies option slot 1 or 2. Confirm against your drive’s wiring diagram — slot assignment affects parameter group 50 (Encoder Module) settings in the drive software.
4. Seat the replacement board firmly into the option slot connector. The board should click into place without excessive force. Misalignment is a common cause of intermittent faults post-replacement.
5. Reconnect the encoder cable. Verify pin assignment against the YPG109E terminal block: A+, A−, B+, B−, Z+, Z−, +V, 0V. Incorrect wiring of differential pairs is the single most common commissioning error.
6. Power up and navigate to parameter group 50 in the ACS800 parameter list. Confirm that parameter 50.01 (Encoder 1 Pulse Number) matches your encoder’s PPR rating. Typical values: 1024, 2048, 4096 PPR. A mismatch here will cause speed scaling errors that look like a hardware fault.
7. Run a short jog command and monitor the encoder feedback signal in the drive’s signal monitoring menu. Confirm A/B channels are active and Z pulse is detected on each revolution.
8. If the drive was previously running in open-loop mode during the fault period, re-enable closed-loop vector control in parameter 99.04 (Motor Control Mode). The drive will not automatically revert.

Configuration note on firmware: If you are replacing a YPG109E on an ACS800 with firmware below version 7.x, verify that the option board firmware is compatible. ABB released updated FPGA firmware for the YPG109E that addresses a known issue with high-frequency encoder signals above 150 kHz. If your application runs a high-resolution encoder at high speed, confirm firmware revision with us before ordering.

Reliability in Harsh Conditions

The YPG109E is not a fragile office-grade PCB. ABB designed this board for the same environments where the ACS800 drive itself operates — and those environments are not kind. Ambient temperatures up to 50°C continuous, humidity up to 95% non-condensing, and vibration levels that would destroy consumer electronics are standard operating conditions in the steel, mining, and pulp industries where this board earns its keep.

The differential signal architecture on the A/B/Z encoder inputs is specifically chosen for noise immunity. In a steel mill, the electromagnetic interference from large motor drives, arc furnaces, and bus bars running at thousands of amps creates a noise floor that would corrupt single-ended encoder signals entirely. The differential pair design of the YPG109E rejects this common-mode noise at the hardware level, before it ever reaches the signal processing logic.

The board’s conformal coating — standard on ABB industrial option boards — provides a physical barrier against condensation, dust, and corrosive atmospheres. In coastal or chemical processing environments where humidity and airborne contaminants accelerate PCB corrosion, this coating is the difference between a board that lasts a decade and one that fails in eighteen months.

Mechanical vibration is addressed through the option slot connector design itself. The board-to-drive interface uses a high-retention connector that maintains electrical contact under the continuous vibration loads typical of compressor rooms, pump stations, and rolling mill drives. Boards that have been in service for years in these environments routinely show no connector wear when inspected during planned maintenance.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It puts us within reach of DHL, FedEx, and UPS express networks that can deliver to most industrial destinations worldwide within 3–7 business days from order confirmation.

Standard export process for urgent orders:

• Day 0 — Order confirmation: Proforma invoice issued within 2 hours of inquiry during business hours. Payment confirmation triggers immediate pick and pack.
• Day 0–1 — Dispatch: Same-day or next-morning dispatch for in-stock units confirmed before 14:00 CST. ESD-safe anti-static bag, foam-lined carton, and full export documentation prepared in parallel.
• Day 1–2 — Customs clearance: We prepare the commercial invoice, packing list, and certificate of origin to your specification. HS code 8537.10 is standard for this product category. If your country requires additional import documentation, advise us at order time.
• Day 3–7 — Delivery: DHL Express and FedEx International Priority are our primary carriers for urgent shipments. Tracking number provided within 24 hours of dispatch. For destinations in Southeast Asia, delivery is typically 2–4 business days. Europe and North America: 4–7 business days.

For extremely time-critical situations — a plant shutdown with production loss accumulating by the hour — contact us directly on WhatsApp. We have arranged same-day courier handoffs to international freight forwarders for customers who needed parts on the next available flight out of Xiamen. It is not standard procedure, but when the cost of downtime justifies it, we make it work.
