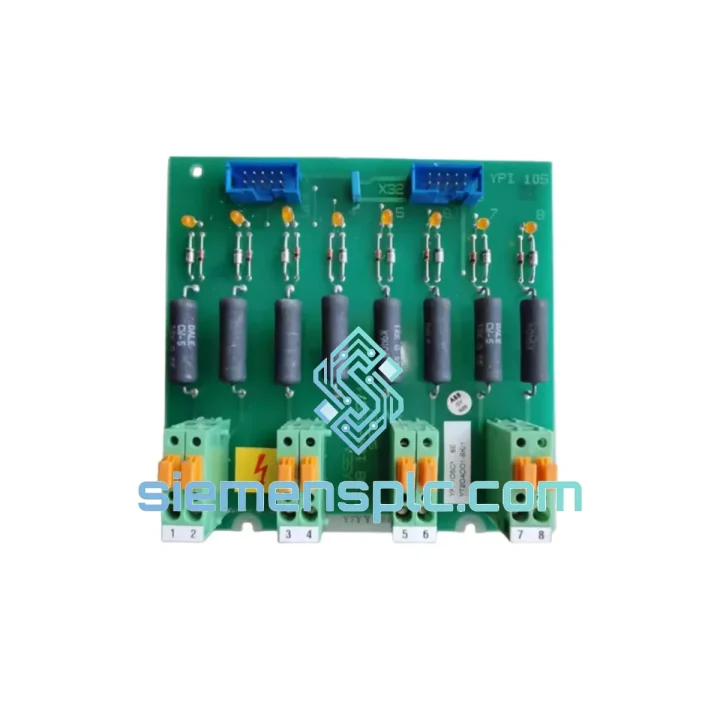

ABB YPI105C YT204001-BK Digital Input Module

ABB YPI105C YT204001-BK — Cut the Downtime. Ship Today from Xiamen.

Every hour your Symphony Plus DCS sits idle, the losses compound. A failed digital input module shouldn’t be a 3-week procurement nightmare. The ABB YPI105C (Part No. YT204001-BK) is in stock at our Xiamen warehouse right now — verified, tested, and ready to clear customs before your maintenance window closes. We’ve shipped this exact module to power plants in Southeast Asia, petrochemical facilities in the Middle East, and paper mills across Europe. Same-day dispatch is not a marketing line — it’s how we operate.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The YPI105C fails in predictable ways. After handling dozens of Symphony Plus field calls, here’s what actually goes wrong and what to check before you even pull the module:

Fault Code F0x21 / F0x22 — Channel Group Fault: This is the most common call-out. Before condemning the module, verify the field wiring termination board (TB) is seated correctly. A loose TB connector mimics a dead module 30% of the time. Reseat the TB, cycle the I/O bus power, and check diagnostics in System 800xA before pulling the card.

Module Not Recognized After Swap: The YPI105C uses automatic slot addressing via the Symphony Plus backplane — there are no physical DIP switches to set on this module. However, the controller firmware must be at a compatible revision. If the replacement module is not recognized within 60 seconds of insertion, check the HPC controller firmware version. Mismatched firmware between the HPC and a newer YPI105C hardware revision (check the label suffix) will cause a silent rejection. Update the HPC firmware first, then re-insert the module.

Intermittent Input Reads on Channels 17–32: This is a known symptom of backplane connector wear on older racks. Clean the backplane edge connector with isopropyl alcohol (99%) before inserting the new module. Do not use compressed air alone — it moves debris, it doesn’t remove it.

Replacement Procedure (Condensed):

1. Place the HPC controller in MANUAL mode and notify the control room. Do not hot-swap without confirming the process is in a safe hold state.
2. Document the current channel assignment map from the 800xA asset model before removal.
3. Remove the field termination board first — the YPI105C uses a front-access TB design. Label all wiring before disconnection.
4. Extract the module using the ejector levers. Inspect the backplane connector for bent pins or carbon tracking.
5. Insert the new YPI105C. The module self-addresses within the Symphony Plus rack — no jumper configuration required.
6. Reattach the TB. Power the rack segment. Confirm green STATUS LED within 30 seconds.
7. Verify all 32 channels in the 800xA diagnostic display before returning the loop to AUTO.

Configuration Note: If migrating from an older YPI104 to YPI105C, the channel count and wiring pinout are identical, but the firmware object type in the 800xA database must be updated. Failure to update the object type results in the module appearing online but reporting stale data — a dangerous condition in process environments.

Reliability in Harsh Conditions

Symphony Plus installations don’t live in clean server rooms. The YPI105C is built for the environments where failures actually happen — offshore platforms with salt-laden air, cement plants with pervasive dust, and tropical facilities where ambient humidity never drops below 80%. ABB designed this module to IEC 61131-2 environmental standards, which means it has been validated against continuous vibration profiles up to 10–57 Hz at 0.075 mm amplitude, shock loads of 15g over 11ms, and thermal cycling across the full 0–60°C operating range without derating.

The optical isolation on each channel group is not just a spec-sheet feature — it’s what keeps a ground fault on a field device from propagating into the backplane bus and taking down an entire I/O rack. In high-noise environments (VFD-heavy plants, arc furnace facilities), this isolation is the difference between a nuisance trip and a full DCS shutdown.

Every unit we ship has been stored in climate-controlled conditions with anti-static, moisture-barrier packaging. We do not sell modules that have been sitting in uncontrolled warehouses for years. If a unit has been on our shelf for more than 18 months, it goes through a full visual and functional pre-check before it ships. That’s not a policy document — it’s what we actually do.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient port cities in Asia, with direct DHL and FedEx gateway access. Here’s how a typical urgent order moves:

Day 0 (Order Confirmed): Payment cleared before 15:00 CST triggers same-day pick, pack, and handoff to DHL Express or FedEx International Priority. Export documentation — commercial invoice, packing list, HS code 8537.10 declaration — is prepared in parallel. No waiting for paperwork.

Day 1–2 (In Transit): DHL Express from Xiamen to major hubs: Singapore (1 day), Dubai (2 days), Rotterdam (2–3 days), Houston (3 days). FedEx International Priority follows comparable routing. You receive a tracking number within 2 hours of dispatch.

Day 2–4 (Delivery): Most Southeast Asian and Middle Eastern destinations receive the module within 2–3 business days. European and North American sites typically see delivery in 3–5 business days. We pre-fill customs declarations with accurate HS codes and declared values to prevent clearance delays — a step most suppliers skip and you pay for in lost days.

For bulk orders (5+ units) or project-based procurement requiring sea freight consolidation, we coordinate with freight forwarders out of Xiamen and Shanghai ports. Lead times and Incoterms are negotiated per project. Contact us with your full BOM for a consolidated logistics quote.
