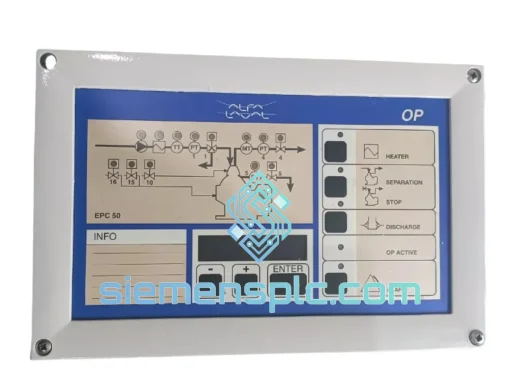

Alfa Laval 3183045463 EPC50 Operator Panel

Alfa Laval 3183045463 EPC50 Operator Panel – Stop the Clock on Your Downtime

Every hour your heat exchanger system sits idle costs real money. When the EPC50 operator panel fails — blank display, unresponsive keypad, corrupted parameter readout — you need a verified replacement on your bench today, not in three weeks. We stock the Alfa Laval 3183045463 EPC50 OP Board in Xiamen and ship globally via DHL/FedEx express. One call, one part, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of EPC50 field failures, these are the patterns that show up repeatedly:

Fault 1 — Blank or frozen display. The LCD driver IC on the OP Board is the first component to fail under sustained high-ambient conditions. Before condemning the main controller, swap the OP Board first. If the display recovers, you’ve confirmed the fault in under 10 minutes.

Fault 2 — Keypad inputs not registering. Membrane keypad delamination is common in humid environments (coastal plants, marine installations). The keypad is integrated into the OP Board assembly — the entire board must be replaced, not just the membrane.

Fault 3 — Parameter loss after power cycle. If the EPC50 loses setpoints on every restart, suspect the OP Board EEPROM rather than the main board. The OP Board stores local operator-entered parameters independently. Replace the OP Board and re-enter setpoints from your commissioning record.

Replacement procedure (field-verified steps):

1. Record all current setpoints and alarm thresholds from the display before powering down — photograph the screen if needed.
2. Isolate power to the EPC50 controller. Confirm zero voltage at the terminal block before opening the enclosure.
3. Disconnect the ribbon cable connecting the OP Board to the main board. Note the orientation — the connector is keyed but the locking tab is fragile on older units.
4. Remove the four M3 screws securing the OP Board to the enclosure front panel.
5. Install the new 3183045463 OP Board. No DIP switch settings or address configuration required — the EPC50 OP Board is auto-detected by the main controller on power-up.
6. Restore power and verify the display initializes correctly. Re-enter all setpoints from your recorded values.
7. Cycle through all alarm acknowledgment screens to confirm keypad response across all zones.

Firmware note: The 3183045463 OP Board is hardware-compatible across all EPC50 main board revisions. No firmware flashing is required on the OP Board itself. If your main board is running firmware below v2.1, consult Alfa Laval service documentation before upgrading the OP Board on a live system — display protocol changes were introduced in that revision.

Reliability in Harsh Conditions

The EPC50 platform was engineered for continuous-duty industrial environments, and the 3183045463 OP Board reflects that design philosophy. The PCB substrate uses a high-Tg FR4 laminate that maintains dimensional stability up to 170 °C — well above the board’s operating ceiling — preventing the micro-crack failures that plague standard FR4 boards in thermal-cycling applications.

Conformal coating on the signal layer provides protection against condensation and airborne contaminants common in food processing and coastal installations. The LCD module is rated for 50,000 hours MTBF under continuous operation at 25 °C, with a rated operating range down to -10 °C — functional in unheated substations during winter shutdowns.

Vibration resistance meets IEC 60068-2-6 test profile Fc, covering the 5–150 Hz range at 1 g acceleration — adequate for skid-mounted installations with pump and compressor vibration. The connector system uses gold-plated contacts on the ribbon cable interface, eliminating the oxidation-related intermittent faults that are the leading cause of OP Board field returns.

In short: this board is built to stay in service. When it does fail, it fails definitively — making diagnosis straightforward rather than chasing intermittent ghosts.

Global Express Logistics

Our Xiamen warehouse operates a same-day cut-off for orders confirmed before 15:00 CST. Here’s what happens after you place your order:

Day 0 (Order day): Stock is pulled, inspected, and packed in anti-static foam with humidity indicator card. Commercial invoice, packing list, and certificate of origin are prepared simultaneously.

Day 1: Shipment handed to DHL Express or FedEx International Priority — your choice. Tracking number issued within 2 hours of pickup. For urgent orders, we can arrange FedEx First Overnight to major hubs.

Transit times from Xiamen:

• Southeast Asia (Singapore, Bangkok, KL): 1–2 business days
• Middle East (Dubai, Riyadh, Doha): 2–3 business days
• Europe (Frankfurt, Amsterdam, London): 3–4 business days
• North America (Chicago, Houston, Toronto): 3–5 business days
• Australia / New Zealand: 3–4 business days

All shipments include full export documentation for customs clearance. HS Code 8537.10 applies to this product category in most jurisdictions. We can provide a formal commercial invoice with declared value for duty calculation on request. For customers in the EU, we can arrange DAP or DDP terms — contact us to discuss.

If your plant is in a remote location or requires freight forwarding to a consolidation hub, we work with established forwarders in Xiamen and can coordinate door-to-door delivery to sites that DHL/FedEx do not serve directly.
