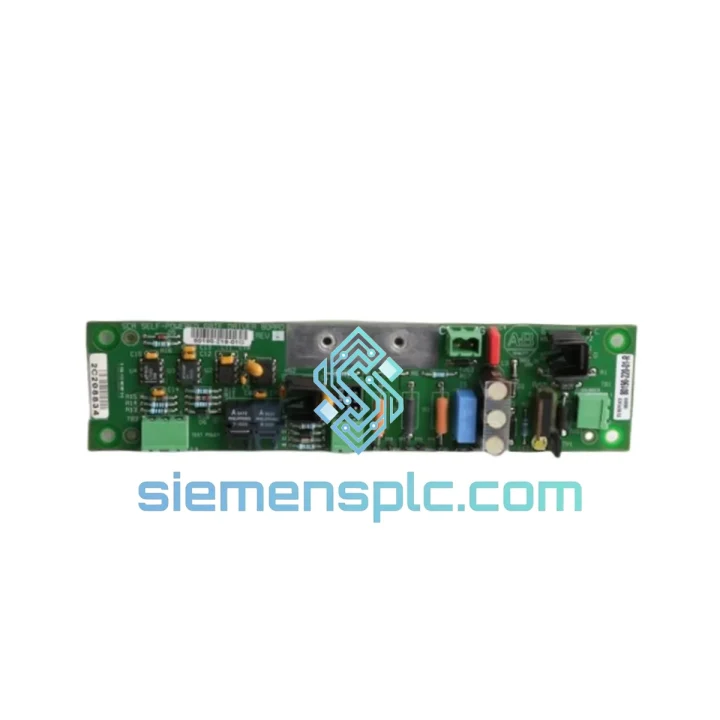

Allen-Bradley 0190-22543 MKS-CIT AS00224-03 Packaged Customer-Specific Screened PCB Assembly — Role in Precision Process Control Loops

The Allen-Bradley 0190-22543, cross-referenced as MKS-CIT AS00224-03, is a customer-specific packaged screened (SCRGD) printed circuit board assembly co-developed under Allen-Bradley and MKS Instruments CIT division engineering standards. Within a closed-loop process control architecture — particularly in semiconductor gas delivery, pressure regulation, and mass flow control subsystems — this board functions as the signal conditioning and interface layer between the field-level sensor/actuator network and the supervisory control platform.

In semiconductor fabrication environments, the control loop integrity depends on the fidelity of analog signal paths and the suppression of conducted and radiated electromagnetic interference. The 0190-22543 occupies the critical node where raw transducer signals are conditioned, scaled, and transmitted to the process controller. Any degradation in this board — whether from ESD damage, thermal fatigue on solder joints, or component drift — directly manifests as process deviation: flow setpoint error, pressure instability, or false fault conditions. Replacing this board with a non-OEM substitute introduces unquantified parametric uncertainty into the control loop, which is unacceptable in ISO-certified or SEMI-compliant production environments.

This assembly is packaged to customer-specific configuration, meaning it ships pre-configured for the target application without requiring field-level jumper setting or firmware initialization. The screened construction — EMI/RFI shielding integrated at the PCB assembly level — ensures the board meets the electromagnetic compatibility requirements of the host tool’s CE or FCC certification envelope without requiring additional shielding enclosures.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The screened designation (SCRGD) in the 0190-22543 part description is not a cosmetic classification — it reflects a specific hardware design decision at the PCB stack-up and shielding layer level. In high-density semiconductor process tools, the board operates in proximity to RF-driven plasma generators, high-current solenoid valve drivers, and switching power supplies. Each of these generates broadband electromagnetic noise across the 150 kHz–30 MHz range that can couple into analog signal traces carrying millivolt-level transducer outputs.

The screened construction addresses this through a combination of techniques: a dedicated ground plane layer within the PCB stack-up that provides a low-impedance return path for high-frequency currents; selective use of ferrite bead filters on power supply rails entering the analog signal conditioning section; and physical shielding of sensitive analog front-end circuitry using conductive enclosures bonded to the PCB ground plane. This architecture achieves common-mode rejection ratios (CMRR) sufficient to maintain signal integrity in environments where conducted emissions from adjacent equipment exceed EN 55011 Class A limits.

The customer-specific packaging (SP designation) indicates that the board’s analog scaling, reference voltage calibration, and I/O connector configuration are fixed at the factory to match the target MKS Instruments process module. This eliminates the field calibration step that would otherwise be required with a generic replacement board, reducing mean time to repair (MTTR) in production environments where calibration equipment may not be available at the tool location.

From a thermal management perspective, the board’s component placement follows a thermal gradient strategy: power-dissipating components are positioned at the board periphery near the chassis mounting points, which serve as heat sinking surfaces. Signal-critical components — precision resistor networks, reference voltage ICs, and differential amplifier stages — are located in the thermally stable center zone, minimizing temperature-induced resistance drift that would otherwise introduce DC offset errors into the control signal chain.

System Integration Benefits

• Zero-Calibration Replacement: The customer-specific pre-configuration eliminates post-installation calibration, allowing the host tool to resume production immediately after board swap without requiring metrology equipment or calibration technician involvement.
• Deterministic Signal Latency: Fixed analog signal conditioning architecture with no firmware-dependent processing ensures consistent signal propagation delay, preserving the phase margin of the host system’s PID control loop.
• Dual-Traceability Procurement: The board is traceable under both Allen-Bradley (0190-22543) and MKS-CIT (AS00224-03) part numbering systems, simplifying MRO documentation, ERP purchase order generation, and audit trail maintenance in ISO 9001 environments.
• EMC Envelope Preservation: The integrated screened construction ensures the replacement board does not alter the host tool’s CE or FCC certification status, avoiding the need for re-certification after maintenance.
• Reduced Diagnostic Ambiguity: OEM-matched parametric performance eliminates the diagnostic uncertainty introduced by non-OEM substitutes, allowing maintenance engineers to isolate faults to other system components with confidence when the board is confirmed functional.
• ESD Protection Architecture: Transient voltage suppression (TVS) diodes on all external I/O interfaces protect the board from electrostatic discharge events during handling and installation, reducing infant mortality failure rates in field replacement scenarios.
• Backward Compatibility: The AS00224-03 revision designation confirms compatibility with the established MKS Instruments connector and signal interface standard, ensuring mechanical and electrical interchangeability with the original installed assembly without wiring harness modification.
• Inventory Consolidation: A single part number (0190-22543) covers the complete packaged assembly including all sub-components, eliminating the need to maintain separate inventory for individual board-level components and reducing spare parts holding costs.

Quality Assurance & Global Logistics

Every Allen-Bradley 0190-22543 MKS-CIT AS00224-03 unit supplied by siemensplc.com is sourced exclusively from authorized distribution channels, OEM factory excess inventory, and certified MRO suppliers with documented chain-of-custody records. Authenticity verification follows a structured inspection protocol: date code consistency check against Allen-Bradley manufacturing records, physical inspection of PCB silkscreen markings and component placement against OEM reference photographs, and functional bench testing where test fixtures are available.

Units are shipped from our Xiamen, China logistics hub with full export documentation: commercial invoice, packing list, certificate of conformance (CoC), and country-of-origin certificate. Xiamen’s port infrastructure supports direct air freight connections to major industrial hubs in North America, Europe, Southeast Asia, and the Middle East, with typical DHL Express transit times of 3–5 business days to most destinations. For time-critical production recovery scenarios, same-day dispatch is available for in-stock units confirmed before 14:00 CST.

All PCB assemblies are packaged in IEC 61340-5-1 compliant ESD-safe packaging: conductive anti-static bag, moisture barrier bag with desiccant, and foam-lined outer carton rated for air freight handling. The 12-month warranty covers manufacturing defects and parametric failures under normal operating conditions, with advance replacement available for qualified accounts to minimize production downtime during warranty claim processing.
