Allen-Bradley 1336-BDB-SP34D IGBT Gate Driver Board

Allen-Bradley 1336-BDB-SP34D IGBT Gate Driver Board — Stop the Clock on Your Downtime

Every minute your line is down, money walks out the door. If your 1336 PLUS drive has thrown a gate driver fault — Fault 12 (Transistor Desaturation), Fault 13 (Ground Fault), or a hard overcurrent trip that won’t clear — the 1336-BDB-SP34D SDRIVER board is almost certainly the culprit. We stock it. We ship it today. That’s the only thing that matters right now.

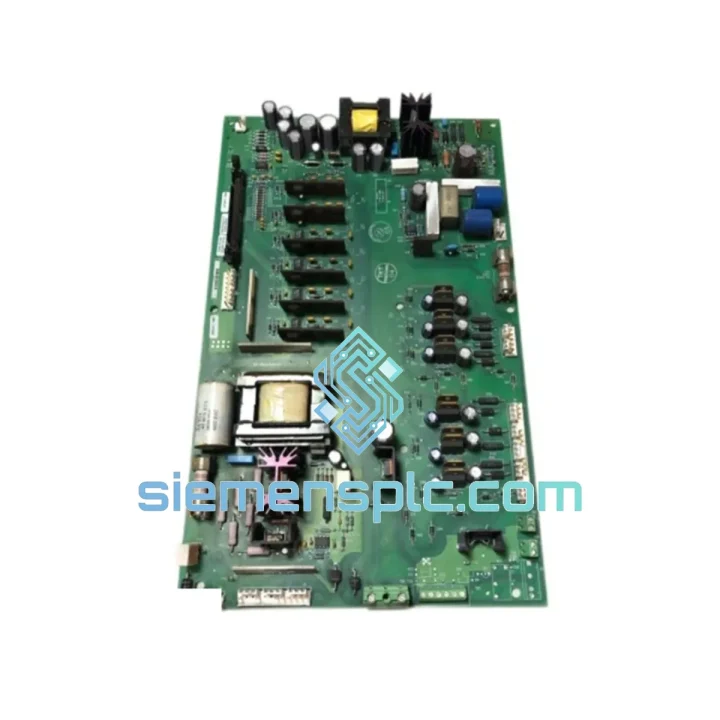

This is the OEM IGBT gate driver board (PCB reference 77101-169-64) that sits between the main control board and the IGBT power bridge in the Allen-Bradley 1336 PLUS and 1336 PLUS II AC variable-frequency drive family. It translates PWM switching commands into precisely timed, isolated gate pulses. When it fails — from a voltage transient, thermal fatigue, or a downstream IGBT shoot-through — the drive shuts down hard and stays down until this board is replaced. There is no workaround. There is no parameter fix. You need the board.

We have pulled this part from verified surplus stock, inspected it under magnification, and confirmed the OEM part number against Rockwell documentation. It ships in ESD-safe packaging with foam cushioning inside a double-wall carton. From our warehouse in Xiamen, China, DHL Express or FedEx International Priority puts it on your bench in 24–72 hours to most destinations worldwide.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault isolation before you order: Before pulling the trigger on a new SDRIVER board, spend 10 minutes on fault isolation — it saves you from replacing the wrong part. With the drive de-energized and DC bus fully discharged (verify with a meter — wait at least 5 minutes after power-off on larger frames), use a DMM in diode-check mode to test each IGBT gate-emitter junction. A shorted IGBT (reading near 0 V) means the power module failed first and likely took the gate driver with it. In that case, you need both the IGBT module and this board. A healthy IGBT with a drive that still faults on power-up points squarely at the 1336-BDB-SP34D.

Common fault codes linked to this board:

• Fault 12 — Transistor Desaturation: The gate driver detected an IGBT failing to saturate properly. Root cause is either a degraded gate driver output stage on this board or a marginal IGBT. Replace this board first if IGBTs test good.
• Fault 13 — Ground Fault: Can be a wiring issue, but if it persists after checking motor cables, the gate driver’s isolation barrier may have broken down. This board contains the isolation circuitry.
• Fault 2 — Overcurrent (instantaneous): If this trips within milliseconds of enable with no load connected, the gate driver is likely firing IGBTs asymmetrically. Classic sign of a failing SDRIVER board.
• Drive powers up, fans run, but no output voltage on any phase: Gate driver not firing. Check the ribbon cable connector first — reseat it. If the problem persists, the board is dead.

Replacement procedure (field-verified steps):

1. Isolate and lock out the drive. Verify DC bus voltage is below 50 V before opening the enclosure.
2. Photograph the existing board and all cable routing before disconnecting anything.
3. Disconnect the ribbon cable from J1 (main control board interface) and the gate signal connectors to the IGBT modules — note orientation; these are keyed but double-check.
4. Remove the four M4 mounting screws. Lift the board straight out — do not flex it against the chassis.
5. Install the replacement 1336-BDB-SP34D. Torque mounting screws to 0.8 N·m. Reconnect all cables in reverse order.
6. Before powering up, verify no tools or hardware are left inside the drive enclosure.
7. Power up with no load connected. Clear faults. Run a static output voltage test across U, V, W terminals at low speed command. Confirm balanced three-phase output before reconnecting the motor.
8. No parameter re-entry is required — this is a hardware board with no stored configuration. The drive’s existing parameters in the main control board remain intact.

Revision matching: The 1336 PLUS platform spans multiple series letters (A through F and beyond). In most cases the 1336-BDB-SP34D is cross-compatible across series, but if your drive is a late-series 1336 PLUS II with a revised power structure, confirm the board revision marking on the PCB silkscreen before installation. Contact us with your full drive catalog number if unsure — we verify compatibility before shipping.

Reliability in Harsh Conditions

The 1336 PLUS platform was designed for industrial environments, and the SDRIVER board reflects that. The PCB uses conformal coating on production runs intended for high-humidity or chemically aggressive atmospheres — a standard requirement for drives deployed in water treatment, pulp and paper, and coastal installations. The board’s isolation transformers and optocouplers are rated for the thermal cycling that comes with daily load variation in pump and fan applications.

That said, no gate driver board is indestructible. The failure modes we see most often in the field are: (1) optocoupler degradation from prolonged operation above 50°C ambient — if your drive enclosure runs hot, check your cooling fan and filter mat before installing the replacement; (2) gate resistor drift from repetitive high-current switching transients — common in applications with frequent starts or aggressive deceleration ramps; (3) isolation breakdown from sustained overvoltage on the DC bus, typically caused by undersized braking resistors or a failed dynamic braking chopper.

Address the root cause before installing the replacement board. A new board dropped into an environment that killed the last one will fail again — sometimes within hours. We can advise on protective measures if you describe your application.

Our inspection process covers: visual check under 10× magnification for burnt components, cracked solder joints, and PCB delamination; connector integrity check on all headers; and cross-reference of the board’s OEM part number and revision against Rockwell’s published documentation. Every board that ships from our facility has passed this process. We do not list boards that fail inspection — they go to component recovery.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. Orders confirmed before 15:00 CST (UTC+8) ship the same business day. Orders placed after cutoff ship the following morning.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 1–2 business days via DHL Express
• Australia & New Zealand: 2–3 business days via FedEx International Priority
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via DHL Express
• Europe (Germany, UK, France, Netherlands): 2–4 business days via DHL Express or FedEx IP
• North America (USA, Canada, Mexico): 2–4 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 3–5 business days via DHL Express
• Africa (South Africa, Nigeria, Kenya): 3–5 business days via DHL Express

All shipments include a tracking number issued within 2 hours of dispatch. We handle export documentation — commercial invoice, packing list, and HS code declaration (HS 8537.10 for control boards) — so your customs clearance is straightforward. For destinations with import duty sensitivities, contact us before ordering and we will advise on the most efficient routing.

Emergency same-day courier arrangements are available for critical shutdowns. If your plant is down right now, call or WhatsApp us directly — we will prioritize your shipment and provide a tracking number before end of business.
