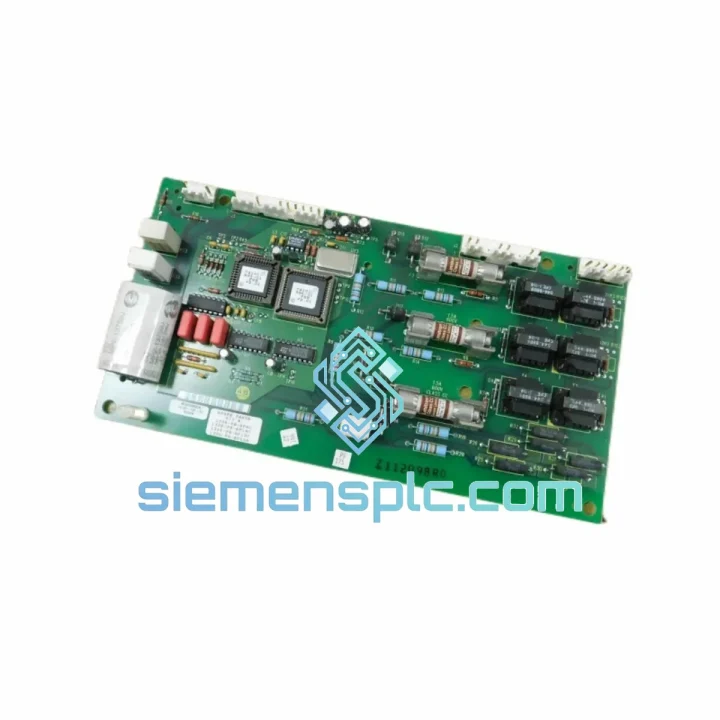

Allen-Bradley 1336-PB-SP8C Power Control Board

1336-PB-SP8C / SP14C / SP19C / SP23A — Every Hour of Downtime Costs You. We Ship Today.

Your 1336 PLUS drive is down. The line is stopped. Maintenance is waiting. You already know the board is the problem — gate drive faults, F-005 overcurrent trips on startup, or a dead DC bus feedback signal that won’t clear no matter how many times you cycle power. You need the Allen-Bradley 1336-PB-SP8C / SP14C / SP19C / SP23A power control board, and you need it before the next shift.

We stock it. We ship same day from Xiamen via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive within 3–5 business days. No 8-week OEM lead time. No “check back later.” Stock confirmed, invoice issued, box moving — that’s the process.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on 1336 PLUS drives teaches you a few things. Here’s what actually matters when you’re standing in front of a faulted drive at 2 AM:

Common Fault Codes Pointing to This Board:

• F-005 (Overcurrent): If it trips immediately on enable with no load connected, suspect gate drive signal loss from this board. Isolate the motor, re-enable — if the fault clears, the board’s gate output stage is degraded.
• F-012 (DC Bus Overvoltage) / F-013 (DC Bus Undervoltage): The 1336-PB board handles DC bus voltage sensing. A failed sensing circuit reports phantom bus faults even when bus voltage is within spec. Verify bus voltage with a meter before condemning the board — if the meter reads normal and the drive still faults, the sensing path on this board is the culprit.
• F-002 (Transistor Desaturation): This fault originates from the gate drive protection circuit on the power control board. A single failed optocoupler in the desaturation detection path will lock out the drive permanently. The board is not field-repairable at component level — replace the assembly.
• No Display / No Power-Up: If the control board (1336-BRF-SP1x) is confirmed good but the drive won’t initialize, check the auxiliary power supply outputs from the power control board. A failed isolated DC-DC converter on this board starves the control board of its operating voltage.

Replacement Procedure — Key Steps:

• De-energize the drive and verify DC bus discharge below 50 V DC before touching any internal assembly. The 1336 PLUS bus capacitor bank holds lethal charge for several minutes after power removal.
• Document all ribbon cable and connector positions with photos before disconnection. The J1–J6 connector layout on the 74101-181-51 PCB is not labeled on the chassis side.
• The SP8C, SP14C, SP19C, and SP23A suffixes denote frame-size kitting, not different PCB revisions. The 74101-181-51 board is mechanically and electrically identical across all four variants — confirm your frame size matches the mounting bracket configuration.
• After installation, perform a drive self-test (parameter P036 = 1 on 1336 PLUS) before reconnecting the motor. This validates gate drive continuity without spinning the load.
• If the drive was previously running with a degraded board, check the IGBT power module for secondary damage. A failed gate drive signal can cause IGBT shoot-through — inspect the power module before declaring the repair complete.
• Firmware version is stored on the control board (1336-BRF-SP1x), not on this power board. No firmware matching is required for the power control board replacement.
• No DIP switch or address configuration is required on this board. It is a passive interface assembly — install and power up.
