Your compressor train just tripped. The XM120 module is flagged. Maintenance is standing by. Every hour offline is burning through your production budget — and the OEM lead time is 8 to 12 weeks. That’s the scenario this page exists to solve. We stock the Allen-Bradley 1440-VST02-01RA Dynamic Measurement Module in Xiamen and ship globally via DHL Express and FedEx International Priority. From the moment you confirm your order, our logistics team moves. No waiting on distributor queues. No back-order limbo. Just a verified, original module on its way to your facility.

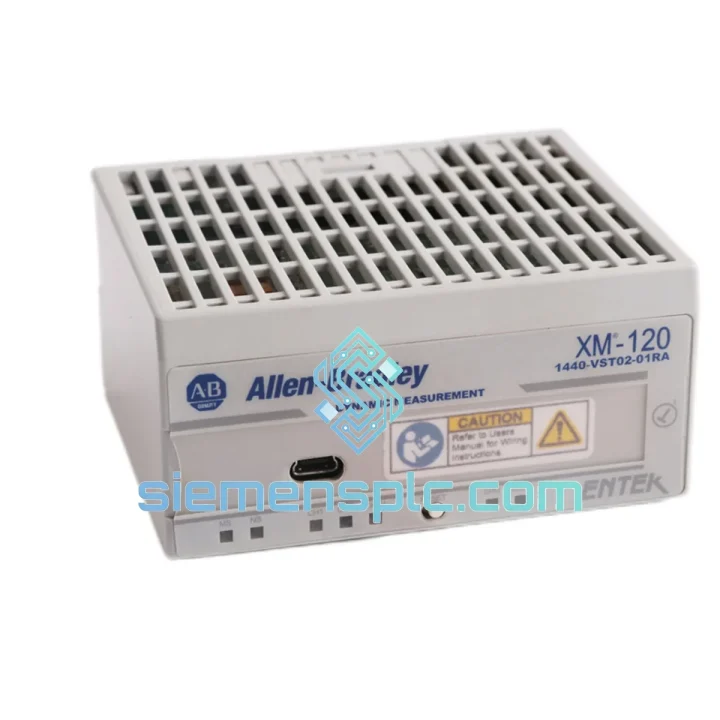

The 1440-VST02-01RA is a dual-channel dynamic measurement module within Rockwell Automation’s XM120 condition monitoring platform. It acquires high-resolution vibration waveform data from accelerometers and velocity transducers, processes it on-board, and communicates alarm states and raw data over DeviceNet to your ControlLogix or CompactLogix system. It is the nerve center of any XM Series predictive maintenance installation — and when it fails, the entire monitoring loop goes blind. Getting it replaced fast is not optional; it’s the difference between a controlled restart and a cascading equipment failure.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on XM Series installations, these are the failure patterns and swap pitfalls that actually matter:

Common Fault Indicators Before Module Failure:

• Fault Code 16#0001 (Configuration Mismatch): Appears when the replacement module’s firmware revision does not match the EDS file registered in RSNetWorx for DeviceNet. Before swapping, export the existing node configuration. After installing the new module, re-apply the configuration file — do not rely on auto-configure.
• Fault Code 16#0080 (Transducer Power Fault): The 1440-VST02-01RA supplies 24 VDC IEPE power to connected accelerometers. If the transducer cable has a short or the accelerometer is drawing excess current, the module will fault on power-up. Disconnect transducers, power the module alone, confirm green LED, then reconnect one channel at a time.
• Fault Code 16#0040 (DeviceNet Communication Loss): Almost always a node address conflict. The XM120 module stores its DeviceNet node address in non-volatile memory. A replacement module ships at factory default (node 63). You must set the correct node address via RSNetWorx before connecting to the live network — connecting at node 63 on a populated network will cause bus errors across all nodes.
• No LED Activity After Installation: Check terminal base seating. The 1440-VST02-01RA requires firm engagement with the 1440-TB-A terminal base. A partially seated module will not power up. Apply firm downward pressure until the locking tab clicks.

Step-by-Step Replacement Procedure:

1. Place the XM system in inhibit mode via RSNetWorx to suppress nuisance alarms during the swap.
2. Document the current node address, configuration parameters, and alarm setpoints from the existing module before removal.
3. De-energize the terminal base (remove DeviceNet power at the tap). The XM120 terminal base is hot-swap capable in some configurations, but confirm your installation’s power architecture before attempting live removal.
4. Disengage the module from the terminal base by pressing the release tab and lifting vertically.
5. Seat the replacement 1440-VST02-01RA onto the terminal base. Confirm the locking tab engages.
6. Before restoring DeviceNet power, set the node address to match the removed module using RSNetWorx offline configuration or the module’s rotary switches if equipped.
7. Restore power. Confirm solid green Module Status LED and solid green Network Status LED within 30 seconds.
8. Re-apply the saved configuration file. Verify all alarm setpoints, measurement ranges, and relay assignments match the original.
9. Perform a transducer check: confirm expected mV/g sensitivity readings on both channels before returning the machine to service.
10. Remove inhibit mode and confirm the XM system is reporting live data to the host PLC.

Firmware Matching Note: If your existing XM120 installation runs a specific firmware revision required by your Studio 5000 AOP version, confirm the replacement module’s firmware before dispatch. Contact us with your current AOP version and we will verify compatibility before shipping.

Reliability in Harsh Conditions

The 1440-VST02-01RA was not designed for a climate-controlled server room. It was built for the reality of industrial plant environments — and it shows in the design choices Rockwell Automation made at the component level.

The module’s conformal-coated PCB resists moisture ingress in high-humidity environments such as coastal facilities, paper mills, and chemical processing plants where ambient humidity regularly exceeds 80%. The coating prevents condensation-induced corrosion on signal traces, which is the primary failure mechanism for uncoated electronics in these environments.

Vibration immunity is addressed through the DIN rail mounting architecture combined with the terminal base locking mechanism. The module remains mechanically secured even in high-vibration environments such as compressor skids and turbine pedestals where structure-borne vibration can exceed 2g RMS. The connector design uses positive-locking contacts rather than friction-fit pins, eliminating the intermittent connection failures that plague lesser modules in vibrating structures.

Thermal performance is rated to +60 °C ambient, which covers the majority of enclosed panel installations even in tropical climates without forced air cooling. In applications approaching this limit — such as panels mounted adjacent to heat-generating equipment — ensure adequate panel ventilation and consider the module’s position within the DIN rail assembly, as heat rises and upper-rail positions run warmer.

The module’s internal power supply filtering is designed to reject the common-mode noise present on industrial 24 VDC power rails shared with variable frequency drives and solenoid valve banks. Installations that experience unexplained module resets should first audit the 24 VDC supply quality with an oscilloscope before attributing the fault to the module itself.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes serving Asia-Pacific, Europe, the Middle East, and the Americas. This geography is not incidental; it is a deliberate operational choice that minimizes transit time for emergency industrial parts shipments.

Standard Express Routing:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): DHL Express — 1 to 2 business days from dispatch.
• Europe (Germany, Netherlands, UK, France, Italy): FedEx International Priority — 3 to 4 business days from dispatch.
• North America (USA, Canada, Mexico): DHL Express or FedEx IP — 3 to 5 business days from dispatch.
• Middle East (UAE, Saudi Arabia, Qatar): DHL Express — 2 to 3 business days from dispatch.
• Australia & New Zealand: FedEx International Priority — 3 to 4 business days from dispatch.

Our Dispatch Process: Orders confirmed before 14:00 CST are processed for same-day dispatch. Each shipment includes anti-static packaging, moisture barrier protection, and a foam-lined outer carton rated for air freight handling. A commercial invoice, packing list, and certificate of conformance are included in every shipment. Tracking numbers are provided within 2 hours of carrier pickup.

Customs & Import Documentation: We prepare accurate HS code declarations (HS 8537.10 for programmable control modules) and commercial invoices that reflect true transaction value, ensuring smooth customs clearance without delays at destination. For customers in countries with specific import licensing requirements for industrial electronics, contact us in advance and we will advise on documentation requirements.

Emergency Same-Day Dispatch: For critical shutdowns where every hour counts, contact us directly via WhatsApp at +86 18359268345. If stock is confirmed available and payment is received before 12:00 CST, we can arrange same-day dispatch with carrier pickup by 16:00 CST.
