Allen-Bradley 1492-ACABLE010TB Analog Cable Assembly

1492-ACABLE010TB: When Your Analog Loop Goes Dead, Every Second on the Clock Is Revenue Walking Out the Door

You’ve been there. The DCS alarm fires at 02:30. Your field engineer traces the fault back to a severed or mis-terminated analog cable — the 1492-ACABLE010TB that was supposed to be in the spare parts cabinet isn’t there. The process is down. The shift supervisor is on the phone. You need the part, not a lead time.

That’s exactly why we stock the Allen-Bradley 1492-ACABLE010TB as a live, shelf-ready item in Xiamen. No backorder. No broker markup. No waiting on a distributor to locate stock from another warehouse. We pull it, pack it, and hand it to DHL or FedEx the same day you order — provided you reach us before 14:00 CST. The cable ships factory-sealed, 100% original Rockwell Automation, with full traceability documentation available on request.

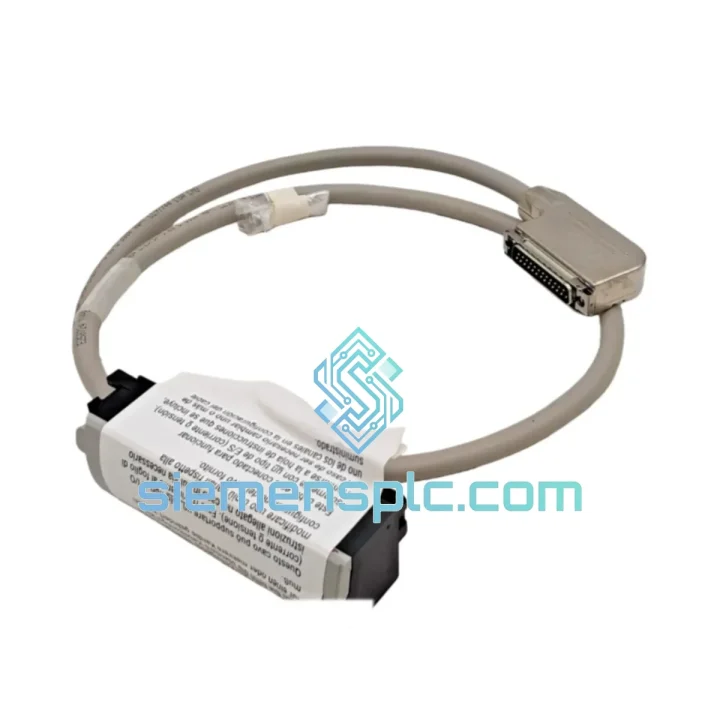

The 1492-ACABLE010TB is a 1.0-meter pre-wired cable assembly designed to connect Allen-Bradley analog I/O modules directly to field instruments via a screw-clamp terminal block (TB) interface. It eliminates field-wiring errors at the module face, reduces commissioning time, and provides a shielded, factory-terminated signal path that generic field cables simply cannot replicate. When you replace it with an OEM unit, you restore the exact signal integrity the system was designed around — no guesswork, no re-calibration surprises.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Pattern 1 — Channel reads 0 mA or pegged at 20 mA with no field change: Before pulling the I/O module, disconnect the 1492-ACABLE010TB at both ends and run a point-to-point continuity check on every conductor. A single open conductor inside the cable jacket — caused by repeated flex fatigue at the connector boot — produces exactly this symptom. The module is almost certainly fine. The cable is the first suspect, not the last.

Fault Pattern 2 — Noisy analog signal, unstable PV reading: Induced noise on a 4–20 mA loop almost always traces back to one of two cable-level issues: (a) the shield drain wire is grounded at both ends, creating a ground loop that acts as an antenna, or (b) the cable has been bundled with AC power conductors or VFD output cables in the same conduit. Correct the grounding to single-end only at the panel earth bar. If re-routing is not immediately possible, replace the cable and verify the new unit’s drain wire termination before closing the panel.

Fault Pattern 3 — Module faults immediately after cable replacement: This is a configuration mismatch, not a hardware failure. In Studio 5000 / RSLogix 5000, navigate to the module properties → General → Input Configuration. Verify that each channel’s signal type (voltage vs. current) matches the connected field instrument. A 4–20 mA transmitter wired to a channel configured for 0–10 V will fault the channel on every scan. Correct the configuration, download, and go online before condemning the new cable.

Field-Verified Replacement Procedure:

• Place the chassis in Program mode or de-energize the I/O rack before disconnecting the cable. Hot-swapping analog cables introduces transient spikes that can latch-fault the module and require a cold restart to clear.
• Photograph or sketch the TB terminal assignments before removal. The 1492-ACABLE010TB uses a numbered screw-clamp block; cross-reference each terminal against your loop drawing before pulling any wire.
• Seat the module-side connector until the retention latch audibly clicks. A partially seated connector is the leading cause of “replaced the cable but still faulting” field callbacks — it looks connected but isn’t making full contact on all pins.
• After installation, inject a known reference signal (4 mA and 20 mA) at the TB terminals using a loop calibrator. Confirm the PLC tag reads the correct engineering-unit values at both endpoints before returning the loop to automatic control.
• If the module was in a latched hardware fault state prior to cable replacement, cycle chassis power after the new cable is seated. Some 1492-series analog modules require a cold restart to exit the fault state — a warm restart or program download alone will not clear it.

Length variant note: The “010” suffix indicates 1.0 m. If your panel geometry requires a longer run, the 1492-ACABLE025TB (2.5 m) and 1492-ACABLE050TB (5.0 m) are available — contact us for current stock. Do not field-extend the 010TB with spliced conductors; this breaks factory shield continuity and introduces a resistance discontinuity that will degrade signal accuracy on low-level analog inputs.

Reliability in Harsh Conditions

The 1492-ACABLE010TB is not a commodity cable. It is an engineered assembly built to maintain signal integrity in the environments where industrial automation actually operates — not in a climate-controlled lab.

The screw-clamp TB termination is the correct choice for vibration-prone installations. Push-in spring-clamp connectors back out under sustained mechanical shock from compressors, punch presses, and conveyor drives bolted to the same steel structure. Screw-clamp terminals maintain clamping force across thermal cycles and vibration spectra that would loosen a spring-clamp connection within months. When you torque the TB screws to specification and apply thread-locking compound on critical installations, the connection stays put for the life of the cable.

In high-humidity environments — coastal processing facilities, food and beverage washdown areas, pulp and paper mills — the cable jacket resists moisture ingress that causes insulation resistance degradation in generic cables. IR failure on an analog cable manifests as a slowly drifting PV reading that gets worse over weeks, not a hard fault that triggers an alarm. By the time the operator notices, the process data has been unreliable for months. OEM cable construction prevents this failure mode from developing.

EMI performance in drive-heavy environments is non-negotiable. The full-length foil shield, when grounded at a single panel earth point, provides measurable common-mode noise attenuation from adjacent VFDs, contactors, and high-current bus bars. This is verifiable with a clamp-on current probe on the drain wire — if you are seeing noise on your analog loops and the shield is floating or double-grounded, fix the grounding before replacing any hardware. The cable is doing its job; the installation is not.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — a tier-1 logistics hub on China’s southeast coast with direct gateway access to DHL Express, FedEx International Priority, and UPS Worldwide. Stock is physically on our shelves, inspected, and ready to pack. This is not a drop-ship or broker arrangement.

Estimated transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Vietnam, Indonesia): 2–3 business days — DHL Express
• Australia / New Zealand: 3–4 business days — FedEx International Priority
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days — DHL Express
• Europe (Germany, Netherlands, UK, France, Italy): 4–5 business days — FedEx International Priority
• North America (USA, Canada, Mexico): 4–5 business days — DHL Express Worldwide
• South America (Brazil, Chile, Colombia, Peru): 5–7 business days, subject to local customs clearance

Every shipment includes a commercial invoice, packing list, and AWB tracking number issued within 2 hours of dispatch. For orders requiring a certificate of conformance, country-of-origin declaration, or specific customs documentation formats, notify us at order placement and we include the paperwork in the shipment. We have processed export documentation for buyers in 40+ countries — if your import broker has specific requirements, we have handled them before.

For same-day dispatch, place your order and contact us via WhatsApp before 14:00 CST. We confirm stock, generate the AWB, and send you the tracking number the same evening. Your part is in the air before your next shift starts.
