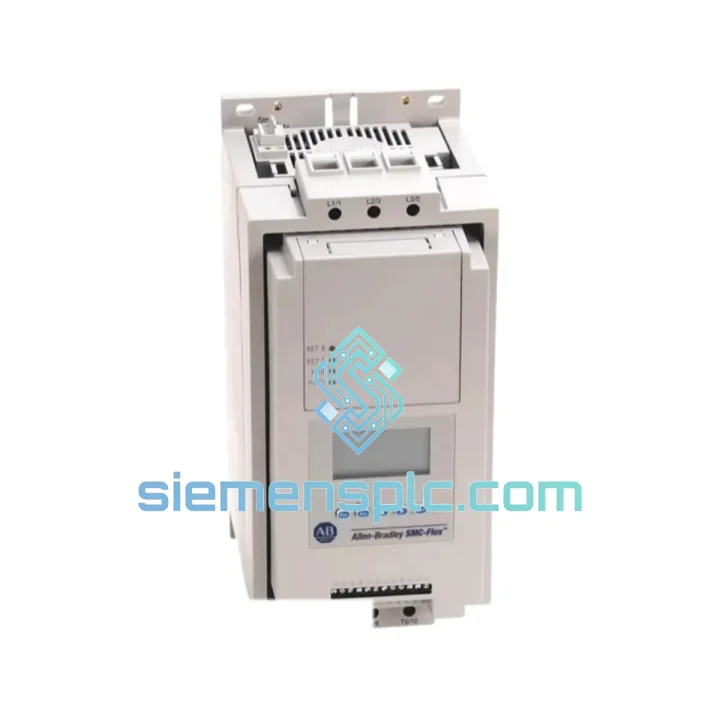

Allen-Bradley 150-F201NBDD Smart Motor Controller – SMC Flex Series

Allen-Bradley 150-F201NBDD — 201A SMC Flex Smart Motor Controller with Internal Bypass and DeviceNet Interface

The 150-F201NBDD occupies a well-defined position in the motor control architecture of medium-voltage industrial systems. As a solid-state reduced-voltage starter rated at 201 A continuous current, it governs the acceleration and deceleration envelope of three-phase AC induction motors operating on 200–480 V, 50/60 Hz supply networks. Unlike a conventional star-delta or autotransformer starter, the SMC Flex platform modulates motor terminal voltage through a pair of anti-parallel silicon-controlled rectifiers (SCRs) per phase, providing stepless voltage ramp control rather than discrete switching transitions. This architecture eliminates the current transient spikes associated with contactor-based switching, which are a primary cause of mechanical fatigue in couplings, gearboxes, and driven equipment.

The suffix breakdown of the 150-F201NBDD is directly traceable to Rockwell Automation’s catalog structure: 150 = SMC product family; F = F-frame (high-current chassis); 201 = 201 A rated current; N = standard control voltage (100–240 V AC); B = internal bypass contactor; D = DeviceNet communication port; D = second DeviceNet option confirming dual-port or extended network capability per the specific catalog revision. Each suffix character encodes a hardware feature that directly affects panel design, BOM, and commissioning scope.

In a typical pump station or HVAC chiller plant, this controller is installed between the motor branch circuit protection (Class J or Class L fuses per NEC 430.52) and the motor terminals. The upstream isolation contactor remains closed during normal operation; the SMC Flex handles all start/stop sequencing. At full speed, the internal bypass contactor (B suffix) closes, routing load current around the SCR stack and eliminating thyristor conduction losses during steady-state run mode — a critical thermal management feature at 201 A continuous duty.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SCR-based power stage of the 150-F201NBDD operates on phase-angle firing control. The gate drive circuit fires each SCR pair at a calculated delay angle (α) relative to the supply voltage zero-crossing, progressively reducing α from near 180° (minimum voltage) to 0° (full voltage) over the configured ramp interval. At 201 A, the SCR junction thermal mass is substantial; the internal thermal model continuously tracks I²t accumulation and adjusts firing angle to prevent junction overtemperature without requiring external thermal sensors on the SCR heatsink.

EMC Design: The F-frame chassis incorporates a common-mode choke on the control wiring harness and a metal oxide varistor (MOV) network across each SCR pair to suppress dV/dt transients generated during commutation. This passive suppression network limits peak dV/dt to values within IEC 60947-4-2 Class A limits, ensuring compatibility with adjacent variable-frequency drives and sensitive instrumentation in the same panel. The DeviceNet port uses optical isolation between the network physical layer and the internal microprocessor bus, maintaining ≥2.5 kV isolation voltage to prevent ground loop interference from propagating into the control network.

Bypass Contactor Logic: The internal bypass contactor (B suffix) is controlled by the SMC Flex firmware through a dedicated relay output. The bypass closes only after the motor current has stabilized within ±5% of steady-state FLA for a configurable hold time (default: 0.5 s). This sequencing prevents bypass closure during transient current peaks, which would otherwise cause contactor contact welding at 201 A. Once bypassed, the SCR stack is electrically isolated from the load circuit, and all protection functions (overload, phase loss, jam) continue to operate through the current transformer inputs, which remain active regardless of bypass state.

Ground Fault Detection: The 150-F201NBDD implements a zero-sequence current transformer (ZSCT) method for ground fault detection. The three-phase conductors pass through a single toroidal CT; under balanced conditions, the vector sum of phase currents is zero and the CT output is null. A ground fault as low as 20% of motor FLA produces a measurable residual current, triggering a fault response within one line cycle (16.7 ms at 60 Hz). This response speed is significantly faster than thermal-magnetic circuit breakers, which require sustained overcurrent to operate.

System Integration Benefits

• Deterministic Network Response via DeviceNet: The DeviceNet port supports explicit messaging for parameter read/write and I/O polling at configurable rates (10–500 ms). In a ControlLogix system, the SMC Flex appears as a standard DeviceNet node; the controller’s I/O tree provides real-time current, voltage, power factor, and fault status without additional programming overhead.
• Reduced Panel Footprint: Integration of bypass contactor, electronic overload, phase loss relay, jam protection, and DeviceNet interface into a single chassis eliminates five to seven discrete devices from the panel BOM, reducing enclosure volume by an estimated 30–40% compared to equivalent discrete component assemblies.
• Configurable Protection Thresholds: All protection setpoints (overload class, jam threshold, underload trip level, phase imbalance %) are software-configurable via DeviceNet or the optional HIM (Human Interface Module), eliminating the need to physically replace overload heater elements when motor FLA changes.
• Energy Savings Mode: Under partial-load conditions (<50% of rated torque), the firmware reduces firing angle to lower motor terminal voltage, reducing core losses and improving power factor. Field measurements on centrifugal pump applications have documented 3–8% energy reduction during low-demand periods.
• Predictive Maintenance Data: The controller logs cumulative starts, operating hours, last fault code, and thermal utilization percentage. This data is accessible via DeviceNet polling and can be integrated into SCADA or CMMS platforms to schedule maintenance before failure occurs.
• Backward Compatibility with SMC-3 Footprint: The F-frame mounting pattern is dimensionally compatible with legacy SMC-3 (150-A/B series) installations in many configurations, reducing retrofit engineering time and panel modification costs.
• Configurable Slow Speed Operation: The preset slow speed mode allows the motor to run at approximately 1/6 of rated speed for positioning or inching operations, eliminating the need for a separate variable-frequency drive in applications requiring only occasional low-speed operation.
• Fault Diagnostics Transparency: The SMC Flex stores the last five fault events with timestamp and operating conditions at time of fault. This fault history is retrievable via DeviceNet without interrupting production, enabling root-cause analysis without on-site instrumentation.
