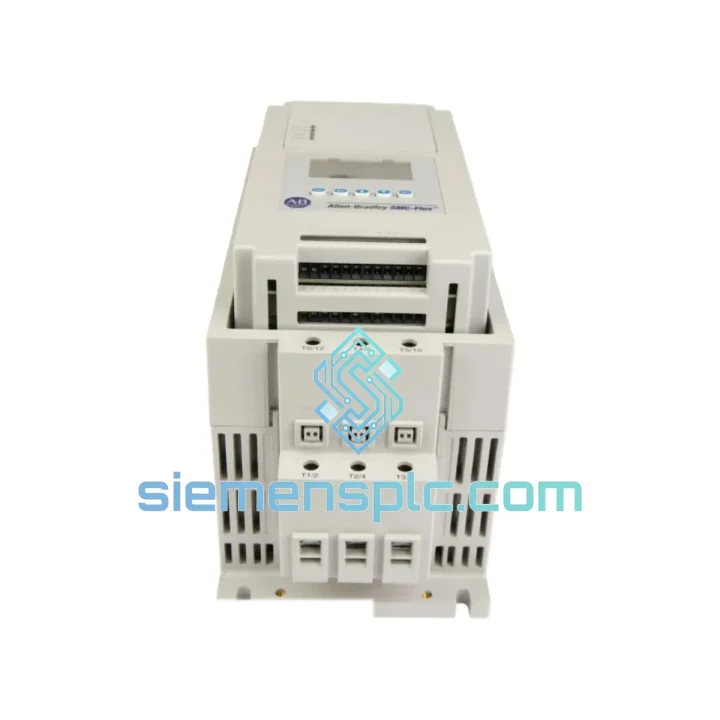

Allen-Bradley 150-F43NBD Soft Starter

Allen-Bradley 150-F43NBD — Stop the Clock on Your Downtime. Ship Today.

Every minute a motor line sits dead costs money. If you’re here, you already know that. The Allen-Bradley 150-F43NBD SMC Flex Smart Motor Controller — 43A, 200–480V AC, with native DeviceNet — is on the shelf in Xiamen right now. We’ve shipped this exact part number to plants in Southeast Asia, the Middle East, and Europe within 24 hours of order confirmation. No broker delays. No counterfeit risk. One call, one unit, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on SMC Flex units teach you the same lessons over and over. Here’s what actually matters when you’re swapping a 150-F43NBD under pressure:

1. DeviceNet Node Address — Do This First. The replacement unit ships at Node 63 by default. Before you power up, set the rotary switches on the front face to match the failed unit’s node address. If you don’t know the original address, pull it from RSNetWorx or check the panel drawing. Powering up with a duplicate node address will fault the entire DeviceNet segment — every drive on that network goes offline. That’s a bad day.

2. Parameter Module (150-SM1) — Your Best Friend. If the original unit had a 150-SM1 parameter module installed, transfer it to the replacement before commissioning. It carries all tuning data: current limit setpoints, ramp times, overload class, and soft-stop configuration. Plug it in, power up, and the unit self-loads. No re-entry, no guesswork. If there’s no SM1, you’ll need to re-enter parameters manually via the HIM or RSLogix.

3. Common Fault Codes on the 150-F43NBD:

• F01 — Overload Trip: Motor running above FLA for too long. Check motor load, verify overload class setting matches motor nameplate. Reset via HIM or DeviceNet command after clearing the mechanical cause.
• F04 — Phase Loss: One of the three supply phases is missing or severely unbalanced (>10%). Check upstream fusing, contactor contacts, and cable terminations before replacing the SMC — this fault is almost never the controller’s fault.
• F07 — Stall: Motor failed to reach speed within the programmed ramp time. Increase ramp time parameter or check for mechanical jam. Common on conveyors after a weekend shutdown with product still loaded.
• F09 — Jam: Motor reached speed then suddenly drew excessive current. Immediate mechanical inspection required — do not reset and restart without clearing the jam. Repeated resets will burn the SCRs.
• F14 — DeviceNet Communication Loss: Controller lost heartbeat with the scanner. Check cable termination resistors (121Ω at both ends of the trunk), verify node address, and check scanner module status in the PLC chassis. If the fault clears on power cycle but returns, suspect a loose connector on the drop cable.

4. SCR Thermal Check Before Energizing. On a used or refurbished unit, use a multimeter in diode mode to verify SCR integrity across each phase pair (T1-T2, T2-T3, T1-T3) before connecting to the motor. A shorted SCR reads near-zero in both directions. A failed open reads OL in both directions. Either condition means the unit is dead — don’t waste time commissioning it.

5. Bypass Contactor Timing. The 150-F43NBD relies on an external bypass contactor (100-C43 or equivalent) to carry full-load current after the soft-start ramp completes. Verify the contactor closes within the SMC’s programmed bypass delay window. If the contactor is slow or worn, the SCRs carry full load longer than designed and will overheat. Replace the contactor if its pull-in time exceeds 50ms.

Reliability in Harsh Conditions

Industrial environments don’t care about your equipment. Foundry floors hit 55°C ambient. Offshore platforms run 95% humidity with salt spray. Cement plants coat everything in fine particulate within weeks. The SMC Flex platform was engineered for exactly these conditions, and the 150-F43NBD carries that pedigree.

The unit’s SCR-based power stage operates without mechanical wear points — no brushes, no contacts in the power path during ramp. Thermal management is handled by an aluminum heatsink rated for continuous operation at 50°C ambient without derating. Above 50°C, derate output current by 2% per degree Celsius up to 60°C maximum.

Vibration tolerance meets IEC 60068-2-6: 5–150 Hz, 1g continuous. This matters on compressor skids and pump stations where the controller mounts directly to the driven equipment frame. We’ve seen units run 8+ years in these conditions without SCR failure when properly sized and ventilated.

The conformal-coated control board (standard on NBD suffix units) resists moisture ingress and corrosive atmospheres. In high-humidity environments, ensure the enclosure maintains positive pressure or install a filtered ventilation kit — the IP00 rating means the unit itself relies entirely on the enclosure for environmental protection.

All units we ship are inspected for physical damage, corrosion on terminal blocks, and SCR integrity before dispatch. We do not ship units with cracked housings, burned terminal markings, or evidence of prior overload events.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship operation. Stock is physically on our shelves.

Standard Express Timeline (DHL/FedEx Priority):

• Southeast Asia (SG, MY, TH, ID, VN): 2–3 business days door-to-door
• Middle East (AE, SA, QA, KW): 3–4 business days
• Europe (DE, NL, FR, PL, IT): 3–5 business days
• North America (US, CA, MX): 4–6 business days
• Australia / New Zealand: 3–5 business days
• South America (BR, CL, CO): 5–8 business days

Orders confirmed and paid before 14:00 CST ship same day. We prepare commercial invoices, packing lists, and HS code documentation (HS 8537.10) for customs clearance. For orders requiring formal export licenses or end-user certificates, contact us in advance — we handle this regularly for controlled-destination shipments.

Tracking numbers are issued within 2 hours of dispatch. We monitor shipments proactively and flag any customs holds to you immediately so you can provide additional documentation without delay. When your line is down, every hour counts — we treat your shipment the same way.
