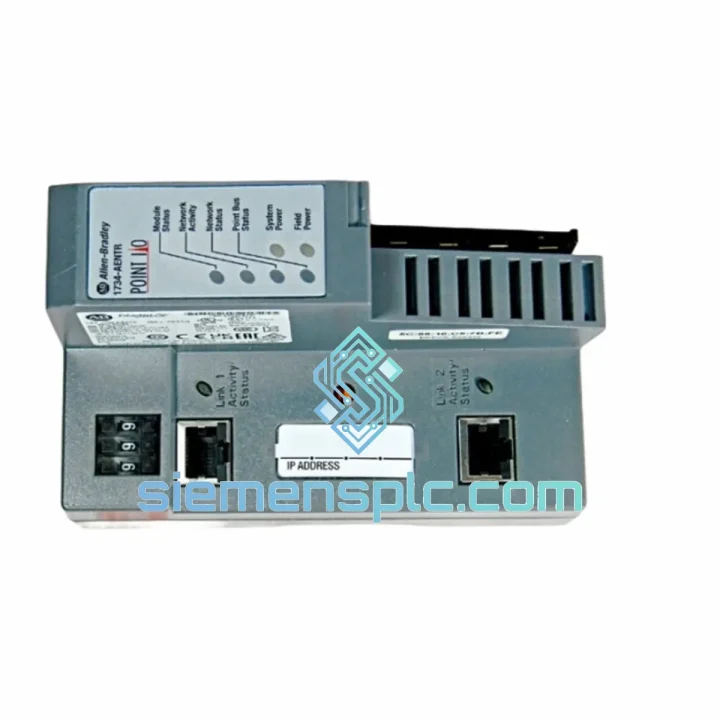

Allen-Bradley 1734-AENTR EtherNet/IP Adapter Module – POINT I/O Series

Allen-Bradley 1734-AENTR: Dual-Port EtherNet/IP Adapter for Deterministic Distributed I/O Control

The 1734-AENTR is the network gateway module of the Allen-Bradley POINT I/O 1734 platform, responsible for bridging up to 63 downstream I/O modules to an EtherNet/IP control network. Unlike a passive backplane connector, this adapter actively manages the CIP (Common Industrial Protocol) connection table, arbitrates I/O data assembly objects, and maintains the requested packet interval (RPI) schedule independently of the host controller’s scan cycle. Its dual RJ-45 ports integrate a hardware-level Device Level Ring (DLR) supervisor, enabling ring topology fault recovery without any external managed switch infrastructure.

In distributed I/O architectures, the adapter module defines the determinism ceiling of the entire node. The 1734-AENTR supports a minimum RPI of 500 μs per connection, which translates to a worst-case I/O update latency of one RPI period under normal network load. This performance envelope is sufficient for high-speed discrete control, servo axis interlocking, and safety-rated I/O polling when paired with GuardLogix controllers and 1734-IB8S/OBV2S safety modules.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1734-AENTR’s internal architecture separates the EtherNet/IP MAC layer from the POINT I/O backplane bus controller using a dual-processor design. The network-facing processor handles TCP/IP stack management, CIP object library, and DLR beacon transmission at a fixed 400 μs interval. The backplane-facing processor manages the PointBus — a proprietary serial bus operating at 500 kbps — which polls each downstream I/O module sequentially and assembles the I/O data image for the network processor to encapsulate into CIP I/O messages.

The DLR supervisor logic is implemented in dedicated hardware rather than firmware, which is the primary reason the ring recovery time is bounded below 3 ms regardless of CPU load. When a ring break is detected via beacon timeout (two consecutive missed 400 μs beacons = 800 μs detection window), the supervisor immediately reconfigures the internal switch fabric to open the ring at the fault point and restore linear topology — all without issuing a CIP connection timeout to the host controller.

EMC performance is achieved through a combination of transformer-isolated Ethernet PHY interfaces, common-mode chokes on both RJ-45 ports, and a ground plane architecture that separates the digital logic ground from the chassis ground reference. The module meets IEC 61000-4-2 (ESD, ±8 kV contact), IEC 61000-4-4 (EFT, 2 kV), and IEC 61000-4-5 (surge, 1 kV line-to-line) without external filtering. This is particularly relevant in panel environments where variable-frequency drives (VFDs) and contactors generate high-frequency conducted emissions on the 24V DC rail.

The ATEX Zone 2 certification (II 3 G Ex nA IIC T4 Gc) permits installation in enclosures located in hazardous areas where flammable gas concentrations may be present under abnormal conditions. The certification applies to the module itself; the enclosure must independently meet the required IP rating and temperature class for the specific Zone 2 application.

System Integration Benefits

• Zero-Switch Ring Redundancy: The integrated DLR supervisor eliminates the need for a managed Ethernet switch in ring topologies, reducing panel BOM cost by one component and removing a potential single point of failure from the network infrastructure.
• Sub-Millisecond I/O Determinism: With 500 μs minimum RPI, the adapter supports time-critical control loops — including servo axis interlocking and high-speed discrete sequencing — without requiring a dedicated motion network.
• Transparent Diagnostics via CIP: The adapter exposes module health, port link status, ring topology state, and per-module I/O fault data as standard CIP attributes, readable by any Logix controller without custom ladder logic or HMI scripting.
• Add-On Profile (AOP) Support: Full AOP integration in Studio 5000 Logix Designer allows the adapter and all downstream I/O modules to be configured graphically, with automatic tag generation and I/O tree population — eliminating manual address mapping.
• Hot-Swap I/O Module Replacement: Individual POINT I/O modules can be removed and replaced under power without disrupting the adapter’s CIP connection to the controller, enabling maintenance without production shutdown.
• Scalable Node Expansion: Up to 63 I/O modules per adapter node allows a single 1734-AENTR to serve large I/O clusters, reducing the number of network nodes and simplifying the controller’s connection table management.
• Embedded Web Diagnostics: The built-in HTTP server provides a real-time view of module status, IP configuration, and network statistics accessible from any browser on the same subnet — useful for field commissioning without a laptop running RSLinx.
• GuardLogix Safety Integration: When paired with 1734 safety I/O modules (1734-IB8S, 1734-OBV2S), the adapter supports CIP Safety connections over the same EtherNet/IP network, enabling SIL 2 / PLd safety architectures without a separate safety fieldbus.
• Firmware Revision Management: ControlFLASH-compatible firmware updates allow field upgrades to address protocol enhancements or security patches without hardware replacement.
• Multi-Controller Ownership: The adapter supports listen-only CIP connections in addition to exclusive owner connections, allowing secondary controllers or SCADA systems to read I/O data concurrently without interfering with the primary control connection.

Quality Assurance & Global Logistics

Every 1734-AENTR unit supplied by siemensplc.com is sourced as genuine Allen-Bradley / Rockwell Automation product. Units are procured through verified supply channels with full lot traceability. Prior to shipment, each module undergoes visual inspection for label authenticity, connector integrity, and housing condition. Functional verification includes power-on self-test confirmation and firmware version documentation.

Packaging follows anti-static and moisture-barrier standards: each module is sealed in an ESD-protective bag with desiccant, placed in foam-lined inner packaging, and shipped in double-wall export cartons. All shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to air freight services via Xiamen Gaoqi International Airport and sea freight via Xiamen Port.

Standard international delivery timelines: 3–5 business days via DHL Express or FedEx International Priority to most destinations in Europe, North America, Southeast Asia, and the Middle East. Expedited same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments include a commercial invoice, packing list, and certificate of conformance. Export documentation for customs clearance — including HS code declaration (8537.10) and ECCN classification — is prepared as standard. Third-party pre-shipment inspection reports are available upon request for large-volume orders.

Warranty coverage: 12 months from the date of shipment. Warranty claims are processed with replacement unit dispatch or full credit, subject to inspection confirmation of the defect. Our technical team provides pre-sales compatibility verification and post-sales commissioning support at no additional charge.
