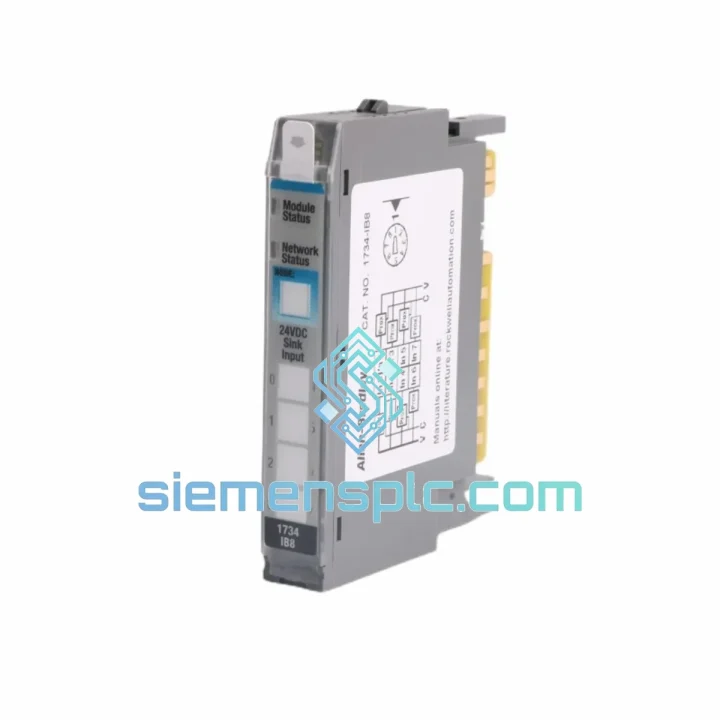

Allen-Bradley 1734-IB8 Digital Input Module – POINT I/O

Allen-Bradley 1734-IB8 — 8-Point 24V DC Sourcing Digital Input Module in Distributed I/O Control Architecture

The 1734-IB8 is an 8-channel, 24V DC sourcing (PNP) discrete input module within Rockwell Automation’s POINT I/O platform. Its role in a control loop is unambiguous: it serves as the primary field-signal acquisition layer between physical process devices — proximity sensors, limit switches, pressure switches, door interlocks — and the deterministic scan cycle of a ControlLogix, CompactLogix, or GuardLogix controller. Each of the eight input channels samples its field voltage state, compares it against configurable ON/OFF thresholds, and transmits a packed 8-bit input image word across the POINT I/O backplane to the network adapter at every RPI (Requested Packet Interval). The adapter then encapsulates this data into an EtherNet/IP or DeviceNet implicit messaging frame for delivery to the controller’s input data table, completing the closed-loop feedback path with deterministic latency.

In high-density panel designs, the 1734-IB8’s 12 mm single-slot footprint allows engineers to achieve 8 discrete input points per slot — a channel density that directly reduces cabinet width, DIN-rail consumption, and wiring infrastructure cost. The module draws only 75 mA from the 5V backplane bus and is entirely field-powered at 24V DC, meaning it imposes no additional load on the adapter’s internal power budget beyond its backplane logic supply.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1734-IB8 implements optical isolation between each field input channel and the backplane logic circuitry. Each channel’s input line feeds a current-limiting resistor network before driving the anode of an opto-coupler LED. The phototransistor output on the logic side is referenced to the module’s internal 3.3V or 5V logic rail, which is galvanically isolated from the 24V DC field supply. This architecture provides a minimum isolation barrier of 500V DC between field wiring and backplane logic, suppressing common-mode transients generated by inductive load switching, motor drive PWM interference, and ground potential differences across distributed panel segments.

The configurable input filter (0.2 ms — 2.0 ms) is implemented as a digital debounce counter in the module’s ASIC logic. When the raw input state changes, the counter begins incrementing at the module’s internal clock rate. Only when the new state persists for the full filter duration does the module latch the transition and update the input image register. This mechanism eliminates false triggering from mechanical contact bounce (typically 1 — 20 ms for relay contacts) while preserving sub-millisecond response for solid-state proximity sensors when the filter is set to its minimum value.

The removable terminal block (RTB) design separates field wiring from the module body at the connector interface. The RTB latches onto the module’s mating connector with a positive-retention clip, and the field wires are terminated to the RTB’s screw or spring-clamp terminals independently of the module. During module replacement, the RTB is unlatched and retained in the panel — field wiring remains undisturbed. This mechanical architecture reduces MTTR (Mean Time To Repair) by eliminating re-termination steps and the associated risk of wiring errors during maintenance.

EMC performance is reinforced by the module’s internal PCB layout, which routes high-frequency backplane signals on inner copper layers shielded by ground planes, while field-side traces are confined to the outer layers with guard rings around the opto-coupler pads. The module’s plastic housing incorporates conductive shielding inserts at the backplane connector interface to prevent radiated emissions from the backplane clock signals coupling into field wiring harnesses.

System Integration Benefits

• Deterministic RPI-based data delivery: The 1734-IB8 transmits its 8-bit input image to the EtherNet/IP adapter at every configured RPI cycle (minimum 1 ms with 1734-AENT), ensuring the controller’s input data table is refreshed at a fixed, predictable interval independent of network load fluctuations.
• Per-channel software-configurable filtering: Studio 5000 Logix Designer allows engineers to assign individual filter times to each of the 8 channels within the same module, accommodating mixed sensor types — mechanical switches requiring 2 ms debounce alongside inductive proximity sensors requiring 0.2 ms response — without external signal conditioning hardware.
• Hot-swap module replacement: POINT I/O’s live-insertion architecture allows the 1734-IB8 to be removed and replaced under power. The adapter detects module removal, sets the corresponding input bits to their configured fault state, and re-establishes communication automatically upon module reinsertion — enabling maintenance without system shutdown in 24/7 production environments.
• Integrated per-point LED diagnostics: Eight individual green LEDs provide real-time visual indication of each channel’s ON/OFF state directly on the module face. During commissioning, this eliminates the need for a laptop connection to verify field wiring continuity; during fault-finding, it localises the fault to a specific channel within seconds.
• Compact 12 mm slot width for high-density panel design: At 12 mm per module, a 192 mm DIN-rail segment accommodates 16 × 1734-IB8 modules, delivering 128 discrete input points. Equivalent functionality in traditional 35 mm I/O modules would require approximately 560 mm of rail space — a 65% reduction in panel footprint.
• Seamless EDS-based configuration in Studio 5000: The module’s Electronic Data Sheet (EDS) file is pre-loaded in Studio 5000 Logix Designer. Adding the 1734-IB8 to a project requires only drag-and-drop placement in the I/O tree; all parameter defaults are populated automatically, and only application-specific filter times require manual adjustment.
• Backplane current transparency for system power budgeting: The module’s published 75 mA backplane draw allows system designers to calculate total adapter node current consumption with precision, preventing power supply undersizing in multi-module configurations and ensuring compliance with the adapter’s rated backplane current limit.
• IEC 61131-2 Type 1 and Type 3 dual compliance: The 1734-IB8 meets both IEC Type 1 (lower input current, suitable for legacy relay-output devices) and Type 3 (higher input current, suitable for solid-state sensor outputs) specifications simultaneously, eliminating the need to specify different input modules for mixed field device populations on the same node.

Quality Assurance & Global Logistics

Every 1734-IB8 unit supplied by siemensplc.com is sourced as genuine Allen-Bradley / Rockwell Automation product. Prior to dispatch from our Xiamen, China facility, each module undergoes a structured incoming inspection protocol: hardware revision markings are verified against Rockwell Automation’s published revision history, label print quality and barcode readability are confirmed, and the backplane connector pins are inspected for mechanical integrity. Modules exhibiting any sign of re-marking, connector damage, or label inconsistency are quarantined and excluded from inventory.

Packaging follows ESD-safe handling procedures throughout: modules are placed in anti-static poly bags, cushioned with foam inserts, and packed in double-wall corrugated cartons rated for international air and sea freight. Shipments from Xiamen reach major industrial hubs across Southeast Asia within 3 — 5 business days via DHL Express or FedEx International Priority. European and North American destinations are typically served within 5 — 7 business days. For urgent project requirements, same-day dispatch is available on in-stock units for orders confirmed before 14:00 CST.

All new units carry a 12-month operational warranty covering manufacturing defects in materials and workmanship. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit at our Xiamen facility. Lot documentation, date codes, and country-of-origin certificates are retained for each batch and are available upon request for regulated industries including pharmaceutical, nuclear, and defence procurement.
