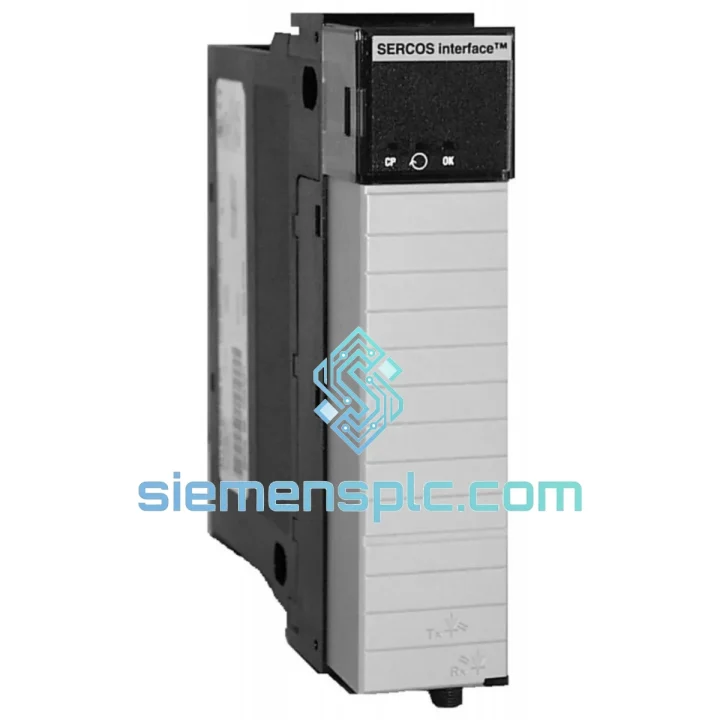

Allen-Bradley 1756-M03SE Motion Control Module – ControlLogix

Allen-Bradley 1756-M03SE: 3-Axis SERCOS Interface Motion Module in the ControlLogix Architecture

The 1756-M03SE occupies a well-defined functional position within the ControlLogix backplane: it serves as the dedicated motion coprocessor that offloads all SERCOS ring management, axis trajectory computation, and servo-loop closure from the primary CPU module. In a ControlLogix chassis, the L6x or L7x controller handles ladder/function-block logic execution and I/O scanning, while the 1756-M03SE independently manages the real-time fiber-optic SERCOS ring at cycle times as low as 1 ms. This architectural separation ensures that a spike in logic scan time on the CPU does not propagate jitter into the servo update cycle — a fundamental requirement for coordinated multi-axis motion in precision manufacturing.

The module supports three fully independent servo axes, each mapped to a SERCOS-compliant drive node on the fiber ring. Axis data — including command position, actual position, velocity feedback, and drive status words — is exchanged every SERCOS cycle via the standardized MDT (Master Data Telegram) and AT (Amplifier Telegram) frame structure defined in IEC 61491. The 1756-M03SE acts as the SERCOS master, issuing MDTs and collecting ATs from each drive node within a deterministic time window. This master-slave arbitration eliminates the variable latency inherent in Ethernet-based motion buses and is the primary reason SERCOS II remains the preferred interface for high-dynamic servo applications in automotive and semiconductor tooling.

Within Studio 5000 Logix Designer, the module is configured via the Motion Group object and individual Axis objects. Each axis supports the full PLCopen Part 1 and Part 2 motion function block set: MAJ (Jog), MAM (Move), MAS (Stop), MAPC (Cam), MATC (Time Cam), MGS (Gear), and coordinated motion instructions including MCLM (Linear Move) and MCCM (Circular Move). The coordinated motion engine within the 1756-M03SE executes linear and circular interpolation across all three axes simultaneously, computing real-time path blending and velocity profiling without CPU intervention. This is the hardware basis for CNC-class contouring performance within a standard PLC platform.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1756-M03SE is built around a dedicated motion ASIC that implements the SERCOS master state machine in hardware rather than firmware. This distinction matters: a firmware-based SERCOS master is subject to interrupt latency from the host processor, which introduces cycle-to-cycle jitter in the MDT transmission window. The hardware ASIC in the 1756-M03SE generates MDT frames with a fixed, crystal-referenced timing source, achieving ring synchronization accuracy within ±1 µs across all connected drive nodes. At 8 Mbps baud with three axes, the total SERCOS ring telegram overhead per 1 ms cycle is approximately 240 µs, leaving the remaining 760 µs for the module’s internal trajectory interpolation engine to compute next-cycle position commands for all three axes simultaneously.

The module’s EMC design follows IEC 61000-4 series test criteria. The backplane connector interface uses differential signaling with common-mode choke filtering on all data lines, suppressing conducted emissions from the chassis power supply into the motion data path. The fiber-optic SERCOS interface provides inherent galvanic isolation between the motion module and the drive cabinet — a critical design advantage in environments with high-frequency PWM switching noise from servo amplifiers. Plastic optical fiber (POF) at 660 nm wavelength is immune to ground loop currents and electromagnetic fields generated by motor cables, which is the primary failure mode for copper-based motion buses in high-power servo installations.

The axis position data path within the module uses 32-bit integer arithmetic for position accumulation, providing a position register range of ±2,147,483,648 counts — sufficient for multi-revolution absolute position tracking without rollover in typical servo applications. Velocity and acceleration feedforward terms are computed in floating-point and converted to integer position increments per SERCOS cycle, maintaining trajectory accuracy across the full dynamic range of the connected servo drives.

System Integration Benefits

• Deterministic servo update cycle: The 1 ms SERCOS cycle time is hardware-guaranteed and independent of the ControlLogix CPU scan time, ensuring servo loop closure is not affected by logic program complexity or I/O scan load.
• Unified programming environment: Motion configuration, axis tuning, and logic programming are performed within a single Studio 5000 project file, eliminating the version synchronization issues common in systems with separate motion controllers and PLC platforms.
• Coordinated motion without external interpolator: Linear and circular path interpolation across all three axes is executed internally by the module, removing the need for an external CNC interpolator card or motion controller hardware.
• Integrated axis diagnostics: Each axis object in Studio 5000 exposes a structured fault attribute table including drive fault codes, position error magnitude, velocity error, and SERCOS communication status — all readable via standard ladder or function block instructions without custom HMI scripting.
• Electronic gearing and camming: The MGS (Gear) and MAPC (Cam) instructions execute within the module’s motion engine, enabling electronic line shaft and cam profile applications without external hardware synchronization signals.
• Scalable axis count: A single ControlLogix chassis can host multiple 1756-M03SE modules, scaling from 3 to 9+ axes while sharing a common controller, I/O tree, and HMI data server — reducing system integration cost per axis compared to standalone motion controllers.
• Drive-level fault transparency: SERCOS AT frames carry drive-side fault and warning bits back to the module every cycle. These are mapped directly into the Axis.DriveStatus and Axis.DriveFault attributes, making drive faults visible in the controller tag database without polling or custom communication blocks.
• Redundancy-compatible chassis: The 1756-M03SE is compatible with ControlLogix redundancy chassis configurations (1756-SRM), enabling hot-standby controller switchover without loss of axis configuration data — a requirement in continuous-process applications where motion restart from a cold state is not acceptable.

Quality Assurance & Global Logistics

Every 1756-M03SE unit supplied through siemensplc.com is sourced from verified industrial distribution channels and passes a documented pre-shipment inspection protocol. Visual authentication checks confirm genuine Rockwell Automation label markings, correct catalog number engraving, and PCB revision consistency with known production batches. Functional verification is performed in a live ControlLogix chassis: the module must achieve backplane recognition, correct module identity response, and SERCOS ring initialization without fault codes before it is cleared for shipment.

Each order is accompanied by a Certificate of Conformance (COC) referencing the unit’s physical markings, a commercial invoice with HS Code 8537.10 declaration, and a packing list. Pre-shipment photographs of the physical unit and label are available upon request at no additional charge. For orders requiring third-party inspection (SGS, Bureau Veritas, or equivalent), pre-shipment inspection can be arranged with advance notice.

Dispatch is from Xiamen, China. In-stock units ship within 1–2 business days of order confirmation. Packaging uses anti-static ESD bags, foam-lined inner cartons, and moisture-barrier outer packaging with desiccant packs. Shipping options include DHL Express (3–5 business days to most destinations), FedEx International Priority, and sea freight consolidation for bulk orders. All export documentation required for customs clearance is prepared as standard.
