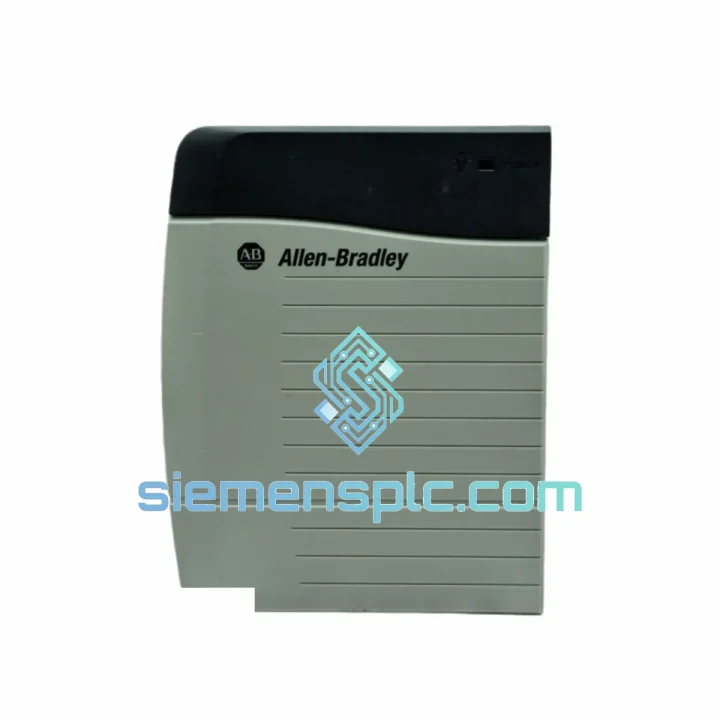

Allen-Bradley 1756-PA72 PLC Power Supply

1756-PA72 Down? Every Minute of Downtime Costs You — Ship Today from Xiamen

Your ControlLogix chassis just lost power. The line is stopped. Maintenance is on the phone. You already know the 1756-PA72 is the culprit — the FAULT LED is solid red, the backplane is dead, and the processor won’t come online. You don’t need a lecture on specs. You need a replacement module on a truck today.

We stock the Allen-Bradley 1756-PA72 AC power supply in Xiamen and ship globally via DHL Express and FedEx Priority. Most orders clear customs and land on your dock within 3–5 business days. For critical shutdowns, contact us directly — we’ll pull the unit, prep the paperwork, and hand it to the courier the same afternoon.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, these are the failure patterns I see most often with the 1756-PA72 — and what to watch for when you swap it out.

Fault Code Patterns:

• Solid red FAULT LED on power supply, no backplane activity: Classic internal regulation failure. The 5.1V rail collapses first. Processor won’t boot. Replace the PSU — do not attempt to reset or cycle power repeatedly, as this stresses the remaining capacitors.
• Intermittent module faults across multiple I/O cards: Usually a 1.2V backplane rail sagging under load. Check total backplane current draw against the 10A limit. If you’re within budget, the PSU’s internal switching circuit is degrading. Replace before it takes out a processor.
• 24V DC user output drops below 22V: Auxiliary output regulation failure. If your field devices (sensors, solenoids) are on this rail, they’ll start behaving erratically before the main backplane fails. This is an early warning — don’t ignore it.
• OK LED flickers during high-load transitions: Capacitor aging. Common in units over 7 years old or in high-ambient-temperature enclosures. The module is near end-of-life.

Replacement Procedure — Field Notes:

• Step 1 — Power budget check before you order: Open Studio 5000 or RSLogix 5000, navigate to the chassis properties, and verify total backplane current draw. The 1756-PA72 is rated 10A @ 1.2V and 4A @ 5.1V. If you’re within 85% of either limit, consider stepping up to the 1756-PA75/B — same footprint, 3W more headroom, no config changes needed.
• Step 2 — No DIP switches, no addressing: Unlike older SLC or MicroLogix platforms, the 1756-PA72 has zero user-configurable switches. It’s a hot-swap-capable module when paired with the 1756-PSCA2 redundancy adapter. Without the adapter, you will drop the chassis — plan your maintenance window accordingly.
• Step 3 — Series revision matters: Series A and Series B are electrically identical, but Series B has improved thermal management and is the current production revision. If you’re replacing a Series A in a newer L8x processor chassis, Series B is the correct choice. The Series is printed on the module label — check before you install.
• Step 4 — Firmware is not stored in the PSU: Unlike processor modules, the 1756-PA72 carries no firmware. No firmware download required post-replacement. The processor will re-establish backplane communication automatically once the new PSU is seated and powered.
• Step 5 — Torque the captive screws: The module uses captive screws for backplane connector engagement. Finger-tight is not enough — use a flathead screwdriver and snug them down. Loose connections cause intermittent backplane faults that are extremely difficult to diagnose remotely.
• Step 6 — Verify 24V user output under load: After replacement, measure the 24V DC user output terminal with your field devices connected. It should read 24V ±5%. A reading below 22.8V under load indicates a wiring issue or excessive current draw on that rail.

Reliability in Harsh Conditions

The 1756-PA72 was engineered for environments that would kill consumer-grade electronics in a week. The universal AC input (85–265V AC) handles the voltage sags and surges common in heavy industrial facilities without external conditioning. The internal switching topology maintains output regulation across the full input range — your backplane stays stable even when the facility power is not.

Vibration tolerance meets IEC 68-2-6 standards, which means it survives the continuous mechanical stress of compressor rooms, press lines, and conveyor systems without connector fatigue. The conformal-coated PCB resists moisture ingress in humid environments — foundries, food processing, coastal installations — where condensation cycles would corrode unprotected boards within months.

Operating temperature ceiling of 60°C means it runs reliably in enclosures that see summer ambient temperatures in excess of 40°C, which is the reality in most Asian and Middle Eastern industrial sites. The thermal design uses conduction cooling through the chassis backplane rather than active fans, eliminating the single most common failure point in industrial electronics: fan bearing failure.

Units we supply are inspected for label integrity, date code verification, and packaging condition. We do not supply modules with broken seals, missing labels, or evidence of prior installation. Every unit ships with original Rockwell Automation packaging where available.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. The unit is pulled, inspected, packed, and handed to the courier that afternoon.
• DHL Express Worldwide: Transit time 2–4 business days to most of Europe, Southeast Asia, and the Middle East. 3–5 days to North America and Australia.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage. Same transit window.
• Commercial invoice and packing list: Prepared to your specifications. HS code 8537.10 is standard for this module class. We can adjust declared values and descriptions within legal limits to facilitate customs clearance.
• Tracking provided immediately: AWB number sent via email and WhatsApp as soon as the courier scans the shipment. You can share it directly with your site team.
• Bulk orders: For orders of 3+ units or mixed BOM requirements, contact us for consolidated shipping options. Sea freight via Xiamen port is available for non-urgent large-volume orders.

We’ve shipped to plant sites in Germany, Malaysia, Saudi Arabia, Brazil, and Australia — often under urgent conditions where the customer needed the module before the end of their maintenance window. If your situation is critical, tell us. We’ll do what it takes.
