Allen-Bradley 1764-MM1 PLC Memory Module – MicroLogix 1500

Allen-Bradley 1764-MM1: 8 KB User Program Memory Module for MicroLogix 1500 Control Architecture

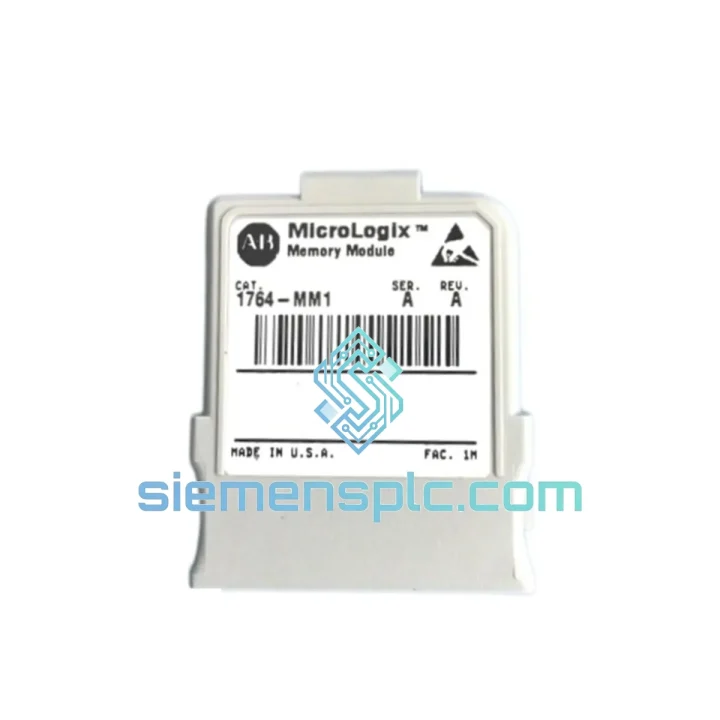

The Allen-Bradley 1764-MM1 is an 8,192-byte (8 KB) plug-in memory module engineered exclusively for the MicroLogix 1500 (1764-series) programmable controller platform. Within a closed-loop control architecture, this module functions as the primary repository for user program instructions and data table files, directly determining the complexity ceiling of any ladder logic, function block diagram, or structured text application running on the host processor. Without adequate memory capacity, scan-cycle determinism degrades as the processor is forced to manage program fragmentation across internal cache boundaries — the 1764-MM1 eliminates this constraint by providing a dedicated, electrically isolated memory space that the processor accesses via the internal module bus at full rated speed.

In process control environments where MicroLogix 1500 units govern PID loops, sequential batch operations, or multi-zone temperature regulation, the 8 KB address space of the 1764-MM1 accommodates programs of moderate complexity: typically up to 500–700 ladder rungs with associated integer, float, timer, counter, and control data files. For installations where program growth is anticipated, the 1764-MM2 (16 KB) and 1764-MM3 (32 KB) variants occupy the same physical slot and are backward-compatible with all 1764-series base units, providing a clear upgrade path without hardware redesign.

The module interfaces with the MicroLogix 1500 base unit through a proprietary edge-connector bus that carries both power and bidirectional data signals. Memory read/write operations are synchronized to the processor’s scan cycle clock, ensuring that program fetch latency does not introduce jitter into time-critical output updates. This architecture is particularly relevant in motion-adjacent applications — such as conveyor indexing or valve sequencing — where output response time must remain within a defined window relative to input event detection.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1764-MM1 employs static RAM (SRAM) rather than flash or EEPROM as its primary storage medium. This design choice is deliberate: SRAM delivers read access times in the sub-100 ns range, which aligns with the MicroLogix 1500 processor’s instruction fetch cycle without introducing wait states. In contrast, flash-based memory architectures require page-erase cycles that can introduce microsecond-scale latency spikes — unacceptable in a scan-cycle-sensitive controller where deterministic output timing is a hard requirement.

Data retention during power loss is managed by the host base unit’s lithium battery, which maintains SRAM cell charge across the module’s edge-connector power rails. This means the 1764-MM1 itself carries no independent power source, reducing component count and eliminating a potential failure mode. The battery-backed architecture ensures that program and data table contents survive unplanned power interruptions without requiring a cold-start reload from an external programming terminal.

From an EMC standpoint, the module’s physical enclosure and edge-connector design provide inherent shielding continuity with the MicroLogix 1500 chassis ground plane. The short signal path between the module’s memory array and the processor’s address/data bus minimizes radiated emission from high-frequency switching transients. This is particularly relevant in panel environments where variable-frequency drives (VFDs) or high-current contactors generate conducted and radiated interference in the 150 kHz–30 MHz band. The module’s compliance with EN 61131-2 EMC requirements confirms it has been validated under these conditions.

The module slot is mechanically keyed to prevent insertion of incompatible modules, and the edge connector uses gold-plated contacts rated for a minimum of 200 insertion cycles — a specification that accommodates field replacement and maintenance without contact degradation affecting signal integrity.

System Integration Benefits

• Deterministic Scan-Cycle Execution: SRAM access latency below 100 ns ensures the processor completes each instruction fetch within a single bus clock cycle, maintaining consistent scan times and predictable output response windows across all operating conditions.
• Zero-Configuration Plug-In Installation: RSLogix 500 automatically detects the 1764-MM1 upon connection and allocates the full 8 KB address space without requiring manual memory map configuration, reducing commissioning time and eliminating configuration errors.
• Transparent Diagnostic Visibility: The MicroLogix 1500 processor continuously monitors the memory module’s presence and integrity via the internal bus. A missing or faulted module generates a recoverable major fault (fault code 0071h) with a descriptive fault message in RSLogix 500, enabling rapid field diagnosis without oscilloscope-level troubleshooting.
• Battery-Backed Program Retention: Program and data table contents are preserved through power cycling via the base unit’s lithium battery, eliminating the need for a dedicated UPS or external memory backup device in most applications.
• Scalable Memory Architecture: The 1764-MM1 occupies the same physical slot as the 1764-MM2 (16 KB) and 1764-MM3 (32 KB), allowing memory capacity to be doubled or quadrupled by module substitution alone — no wiring changes, no chassis modifications, no firmware updates required.
• Regulatory Compliance Assurance: UL 508, CE, and CSA certification means the module can be incorporated into control panels destined for North American and European markets without additional component-level approval processes, reducing time-to-market for OEM machine builders.
• Reduced Spare Parts Inventory Complexity: A single 1764-MM1 spare covers all MicroLogix 1500 base unit variants (1764-LSP, 1764-LRP, 1764-LSP Series B, etc.), simplifying storeroom management for maintenance teams operating mixed-variant installations.
• Validated Firmware Interoperability: Rockwell Automation maintains a published compatibility matrix between memory module hardware revisions and MicroLogix 1500 firmware versions, providing a documented baseline for change management in regulated industries (FDA 21 CFR Part 11, ATEX zone compliance documentation).

Quality Assurance & Global Logistics

Every 1764-MM1 unit supplied through our inventory is sourced from Allen-Bradley’s authorized distribution network or verified factory-surplus channels. Prior to dispatch, each module undergoes a three-stage inspection protocol: visual examination of housing integrity and label authenticity (including date code and country-of-origin markings consistent with Rockwell Automation’s production records), electrical continuity verification of edge-connector contacts, and firmware revision confirmation against the published Rockwell Automation compatibility matrix.

Packaging follows ESD-safe handling standards throughout the supply chain. Modules are shipped in anti-static bags within foam-lined cartons, with desiccant packs included for sea-freight consignments. Traceability documentation — including batch records, inspection reports, and country-of-origin certificates — is available upon request for customers operating under ISO 9001, FDA, or ATEX compliance frameworks.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling same-day dispatch on in-stock orders placed before 15:00 CST. Standard international delivery timelines: DHL Express 2–4 business days (Europe, North America, Australia); FedEx International Priority 3–5 business days; sea freight LCL/FCL available for bulk orders exceeding 50 units. All shipments include full commercial invoice, packing list, and certificate of origin documentation to support customs clearance in destination countries.

A 12-month warranty from the date of shipment covers manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued accordingly.
