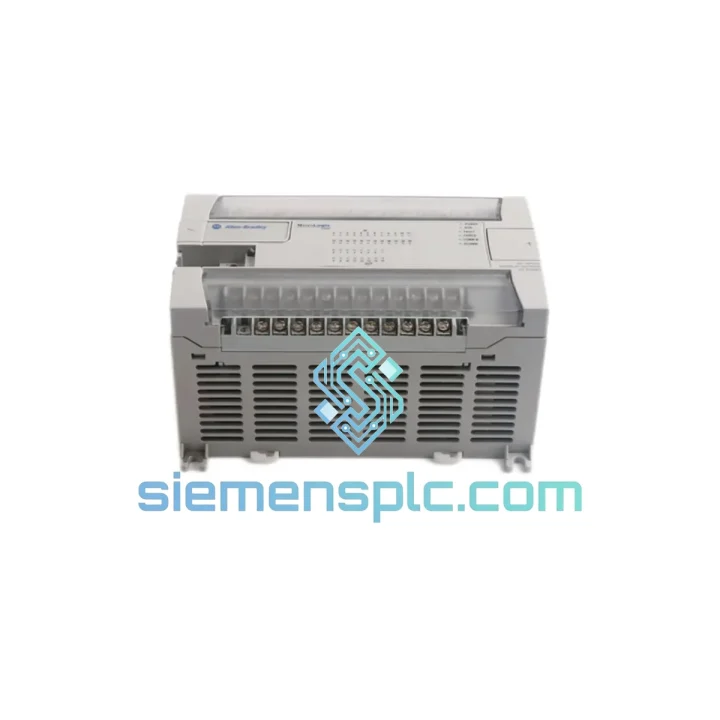

Allen-Bradley 1766-L32AWA PLC Controller

1766-L32AWA: Line Down, Clock Running — Get the Replacement on a Plane Today

You’re not reading a product brochure. You’re standing in front of a dead panel, a production line at zero, and a maintenance window that closed an hour ago. The Allen-Bradley 1766-L32AWA is a 32-point AC relay MicroLogix 1400 controller — compact, deeply embedded in global manufacturing infrastructure, and notoriously difficult to source fast through standard distribution channels when you need it right now.

We keep verified, 100% original 1766-L32AWA units in stock at our Xiamen warehouse. Same-day dispatch via DHL Express or FedEx International Priority. Your dock in 2–5 business days. No distributor queues. No factory lead times. No excuses.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on MicroLogix platforms. Here is what actually kills the 1766-L32AWA and what you need to nail during the swap.

Fault Code 0x0001 / 0x0002 — Major Hardware Fault, Solid Red FAULT LED
This is the number-one reason this unit gets pulled. Before you condemn the CPU, put a meter on your 24VDC auxiliary supply under load. A rail that sags below 21.6V during output switching will trigger a watchdog fault on an otherwise healthy processor. If the rail is clean and the fault survives a cold restart with no program loaded, the CPU is done. Pull it and stop wasting time.

Relay Output Failure — Intermittent or Dead DO Points
The relay contacts on this unit are rated 2A resistive. Inductive loads — motor starters, solenoids, valve actuators — without snubber circuits will arc the contacts dead inside 50,000 cycles. Check contact resistance with a milliohm meter: anything above 100 mΩ on a closed contact is a failed relay. Critical point: the output board is integrated into the CPU card on this model. There is no field-replaceable output module. Full unit swap is the only fix.

EtherNet/IP Dropout — Unit Online but Unreachable
If the FAULT LED is off but the unit has vanished from the network, the IP configuration is the first suspect. Battery failure can corrupt the BOOTP/DHCP flag stored in non-volatile memory. Recover via RS-232 on Channel 0 (19200 baud, 8-N-1, DF1 Full Duplex) using RSLinx Classic. Re-enter the IP settings manually in Channel Configuration and write to non-volatile memory before cycling power.

Replacement Checklist — Do Not Skip These Steps

• Upload the program from the failed unit via RSLogix 500 before cutting power — even a partially responsive CPU may allow an upload. If not, restore from your last verified backup. If you have no backup, that is a separate problem to solve after the line is running.
• Check the firmware revision (FRN) on the replacement unit. The 1766-L32AWA has shipped with FRN 1.x through 21.x. If your application uses features tied to a specific FRN — high-speed counter modes, PID enhancements, EtherNet/IP explicit messaging — confirm the replacement unit meets or exceeds that revision. Update via ControlFlash if needed.
• No DIP switches, no rotary address dials. All node addressing on the 1766-L32AWA is software-configured via Channel Configuration in RSLogix 500. Nothing to set physically.
• If a 1766-MM1 memory module is installed, transfer it to the new unit before first power-up. The unit will auto-restore the program on boot.
• After swap, clear any latched major faults via the LCD keypad: ESC → Major Faults → Clear. Do not attempt to run without clearing.
• Synchronize the real-time clock post-replacement via RSLogix 500 → Controller Properties → Date/Time. A fresh unit ships with the clock at factory default.
• If 1762-series expansion modules are connected and you see I/O bus faults after the swap, power down the full rack, disconnect all expansion modules, power up the base unit alone, confirm it runs clean, then reconnect expansion modules one at a time. A failing expansion module can mask itself behind a CPU fault.

Reliability in Harsh Conditions

The 1766-L32AWA was not designed for a climate-controlled server room. It was designed for the floor — press rooms, compressor stations, food processing lines, chemical dosing panels, and mobile equipment enclosures where temperature swings, vibration, and humidity are daily operating conditions, not edge cases.

PCB assemblies carry a conformal coating that resists condensation, airborne particulates, and mild corrosive atmospheres. Vibration resistance is qualified to IEC 60068-2-6 at 2g across 10–500 Hz — the kind of sustained mechanical excitation you get from large rotating machinery mounted in the same structural bay as the control panel. Relay output contacts are rated 10A at 240V AC on resistive loads, providing real headroom above the 2A per-point continuous rating for applications with brief inrush events.

The DIN-rail mounting clip uses a positive-locking mechanism that does not back off under vibration. In mobile installations — marine, mining, rail — this is not a minor detail. Units that walk off their DIN rail during operation cause faults that look like CPU failures and waste hours of diagnostic time.

Every unit dispatched from our Xiamen facility is physically inspected before packaging: housing integrity, connector pin condition, label authenticity, and firmware revision verification. We do not ship units with bent I/O terminal pins, cracked housings, or missing revision labels. If it does not pass inspection, it does not ship.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport, which operates direct cargo connections to Frankfurt, Amsterdam, Chicago O’Hare, Singapore Changi, and Dubai. This is not a coincidence — it is the operational backbone that makes same-day dispatch a real commitment rather than a marketing claim.

In-stock orders confirmed before 14:00 CST ship the same business day. Tracking numbers are issued within 4 hours of dispatch. Export documentation — commercial invoice, packing list, certificate of origin, HS code 8537.10 declaration — is prepared in parallel with packing and transmitted electronically before the shipment departs the warehouse.

• Europe (DE, NL, FR, UK, PL, SE): DHL Express — 3–5 business days door-to-door. Full customs clearance documentation included.
• North America (US, CA, MX): FedEx International Priority — 2–4 business days. CBP entry documentation provided on request.
• Southeast Asia (SG, MY, TH, VN, ID, PH): DHL Express — 2–4 business days. ASEAN trade documentation available.
• Middle East (AE, SA, QA, KW, OM): FedEx or DHL — 3–5 business days. Arabic commercial invoice on request.
• Australia / New Zealand: DHL Express — 4–6 business days. RCM compliance documentation included.
• South America (BR, CL, CO, PE): FedEx International Priority — 5–8 business days. Import duty guidance available on request.

For plant-down emergencies, contact us directly via WhatsApp before placing your order. We will confirm stock, provide a real shipping timeline, and coordinate documentation in real time. Bulk orders of 5 or more units qualify for dedicated freight coordination and volume pricing — contact us before checkout.
