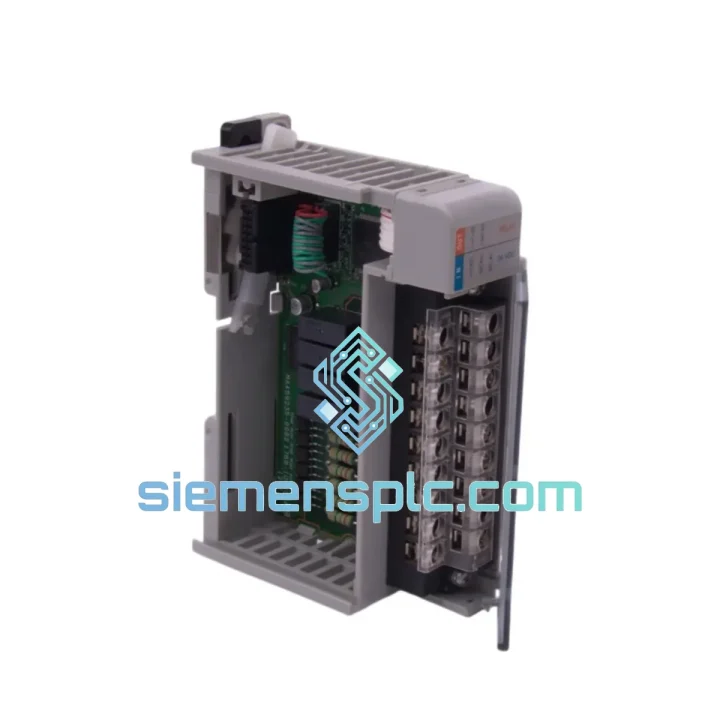

Allen-Bradley 1769-IQ6XOW4 Digital I/O Module – Compact I/O Series A

Allen-Bradley 1769-IQ6XOW4 — Combination DC Input / Relay Output Module for Compact I/O Architecture

The 1769-IQ6XOW4 occupies a single slot on the 1769 Compact I/O backplane and delivers six 24V DC sink/source inputs alongside four relay Form-A outputs within a 35 mm wide housing. This physical consolidation is not a compromise — it is a deliberate architectural choice that reduces inter-module wiring, lowers backplane current consumption, and shrinks panel footprint without sacrificing electrical isolation between the input and output sections. In discrete machine control, where panel real estate directly translates to enclosure cost and thermal management complexity, a combination module of this density carries measurable engineering value.

The module interfaces natively with MicroLogix 1500 and the full CompactLogix 5370 family (L1, L2, L3) via the 1769 serial backplane bus. No adapter or bridge module is required. The controller maps the six input bits and four output bits into contiguous I/O image table addresses, making ladder logic development in Studio 5000 Logix Designer or RSLogix 500 straightforward. The removable terminal block (RTB) design allows field wiring to be pre-terminated and tested before the module is seated, reducing commissioning time on multi-axis or multi-zone machines.

Relay outputs on this module switch both AC and DC loads across a wide voltage envelope — 5 to 265V AC and 5 to 125V DC — without requiring interposing relays. This makes the 1769-IQ6XOW4 directly compatible with 24V DC solenoid valves, 120V AC motor starters, and 230V AC pilot devices within the same output bank, provided each common group stays within the 4.0 A aggregate current limit. The Form-A (normally open) contact topology ensures fail-safe de-energized behavior, which aligns with IEC 62061 and ISO 13849 safety design principles for machine control circuits.

On the input side, the sink/source (bidirectional) configuration accepts both NPN (current-sinking) and PNP (current-sourcing) field devices without hardware modification. This is operationally significant in multi-vendor sensor environments — photoelectric sensors from one manufacturer, inductive proximity switches from another, and mechanical limit switches can all share the same input commons without rewiring or adding external signal conditioners. The input threshold is nominally 10V DC minimum for an ON state, placing 12V DC and 24V DC sensor outputs well within the valid logic-high window.

The 1769-IQ6XOW4 draws 75 mA from the 5V DC backplane rail and zero milliamps from the 24V DC backplane rail. In a fully populated 1769 bank, this is among the lowest backplane power consumers in the Compact I/O catalog, which directly extends the number of modules that can be powered from a single 1769-PA2 or 1769-PB2 power supply without exceeding the supply’s current budget. Thermal dissipation within the module is correspondingly low, contributing to extended MTBF in high-ambient-temperature installations such as foundry floors or outdoor enclosures in tropical climates.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1769-IQ6XOW4 implements optical isolation between the field-side input circuits and the backplane logic circuitry. Each of the six input channels passes field current through an LED element of an optocoupler; the phototransistor on the logic side drives the input image register bit without any galvanic path between field wiring and the controller bus. This isolation barrier — rated to withstand transient voltages typical of inductive load switching on shared field power rails — prevents ground loops and common-mode noise from corrupting input state data. In environments where variable-frequency drives, servo amplifiers, or large contactors share the same panel, this isolation is not optional engineering; it is the primary mechanism that maintains signal integrity.

The relay output section uses electromechanical contacts rather than solid-state switching elements. This is a deliberate design choice for applications where load types are heterogeneous or unknown at design time. Solid-state outputs impose constraints on minimum load current and are sensitive to capacitive loads; relay contacts impose neither restriction. The trade-off is mechanical wear — relay contacts have a finite cycle life, typically 100,000 to 1,000,000 operations depending on load characteristics. For applications with high-frequency switching requirements (cycle times under 1 second), solid-state output modules such as the 1769-OW8 or 1769-OA16 are more appropriate. The 1769-IQ6XOW4 is optimized for moderate-frequency discrete control: conveyor interlocks, valve actuators, motor starter coils, and alarm annunciators.

The module’s EMC design conforms to IEC 61000-4 series immunity standards, including ESD (IEC 61000-4-2), radiated immunity (IEC 61000-4-3), electrical fast transient/burst (IEC 61000-4-4), surge (IEC 61000-4-5), and conducted immunity (IEC 61000-4-6). The PCB layout routes high-frequency backplane signals away from field-side traces, and the housing geometry provides a degree of shielding against radiated emissions from adjacent drives or transformers. These design measures allow the module to operate within specification in Pollution Degree 2 environments without additional shielding enclosures.

The removable terminal block (RTB) architecture separates field wiring from the module electronics. Wiring can be completed, labeled, and continuity-tested before the module is inserted, and the module can be replaced in the field without disturbing field wiring. This reduces mean time to repair (MTTR) in production environments where unplanned downtime carries direct financial cost.

System Integration Benefits

• Single-slot mixed I/O density — Six inputs and four outputs in 35 mm eliminates one module slot compared to separate 1769-IQ6 and 1769-OW4 installations, freeing backplane capacity for analog or specialty modules.
• Bidirectional input compatibility — Sink/source inputs accept NPN and PNP field devices on the same commons, eliminating sensor-type constraints during system design and simplifying spare-parts inventory.
• Voltage-agnostic relay outputs — AC and DC loads at different voltages can coexist in the same output bank, reducing the need for separate relay modules or external interposing relay panels.
• Minimal backplane power budget impact — 75 mA at 5V DC allows more modules per power supply, deferring the cost of additional 1769-PA2/PB2 units in large I/O banks.
• Deterministic I/O scan integration — The module participates in the controller’s synchronous I/O scan, ensuring input data is refreshed and output commands are applied within each program scan cycle with no asynchronous latency.
• Studio 5000 and RSLogix 500 native support — The module’s electronic data sheet (EDS) is pre-loaded in both programming environments; no manual configuration of I/O image addresses is required.
• RTB field-wiring isolation — The removable terminal block allows module swap without rewiring, reducing MTTR and eliminating wiring errors during maintenance.
• Compact I/O bus diagnostic transparency — The controller continuously monitors backplane communication status; a module fault is reported in the I/O fault table with a specific fault code, enabling rapid fault isolation without physical inspection of the panel.

Quality Assurance & Global Logistics

Every 1769-IQ6XOW4 unit dispatched from our Xiamen, China facility is sourced through verified industrial distribution channels with full lot traceability back to the original manufacturer. Pre-shipment inspection covers label authenticity (holographic markings, date codes, series letter), housing integrity, RTB connector condition, and catalog number verification against Rockwell Automation’s published documentation. Units with missing labels, damaged terminal blocks, or unverifiable provenance are rejected and not listed.

Packaging uses anti-static foam inserts with humidity indicator cards. For international shipments, we provide a commercial invoice, packing list, and ECCN classification (EAR99) to support customs clearance in regulated import markets. Carrier options include DHL Express (1–3 business days to most destinations), FedEx International Priority, SF International, and sea freight consolidation for large-volume orders. Export documentation for EU, US, and Southeast Asian customs regimes is prepared as standard. All units carry a 12-month warranty from the date of shipment covering manufacturing defects and confirmed functional failures under normal operating conditions.
