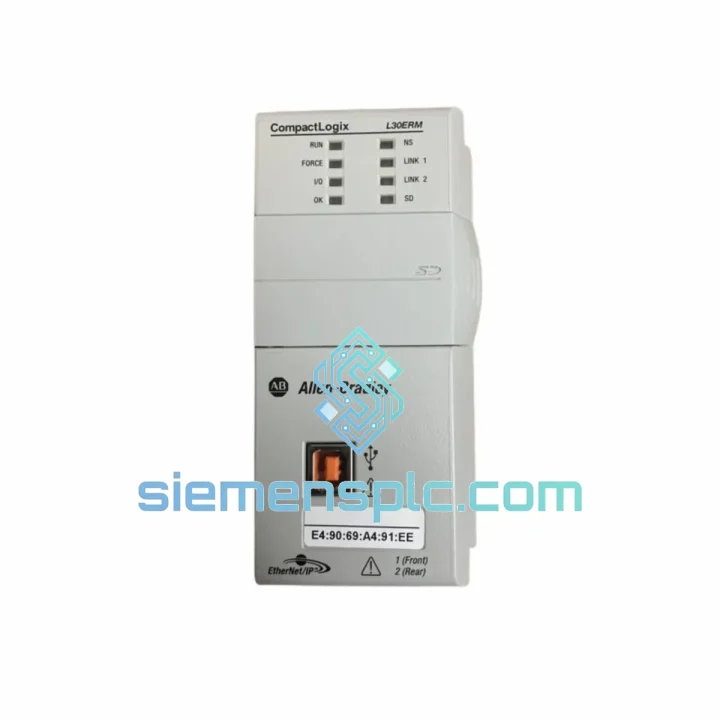

Allen-Bradley 1769-L30ERM PLC Motion Controller – CompactLogix 5370

Allen-Bradley 1769-L30ERM: 1MB CompactLogix 5370 EtherNet/IP Motion Controller for Multi-Axis Industrial Automation

The Allen-Bradley 1769-L30ERM is a mid-range programmable automation controller within Rockwell Automation’s CompactLogix 5370 family. It occupies a well-defined position in the control hierarchy: sufficient memory and axis capacity for the majority of OEM machine-builder applications, while maintaining a compact DIN-rail footprint that avoids the overhead of a full ControlLogix chassis. The controller executes Logix-based ladder, function block, structured text, and sequential function chart programs from a unified 1 MB user memory space, coordinating up to 16 servo axes over a native CIP Motion EtherNet/IP network without requiring a dedicated motion bus or separate motion coprocessor.

In a typical control loop, the 1769-L30ERM acts as the sole arbitration node: it closes the position loop in software via the Logix motion instruction set (MAM, MAS, MAJ, MAPC, etc.), exchanges cyclic I/O data with Kinetix drives at configurable RPI rates as low as 1 ms, and simultaneously manages discrete and analog I/O through the 1769 Compact I/O backplane. This architecture eliminates the latency penalty of a separate motion controller communicating over a fieldbus to a PLC, resulting in tighter synchronization between motion and process logic.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1769-L30ERM is built on Rockwell’s Logix5000 execution engine, a preemptive multitasking kernel that schedules tasks by priority and period. The continuous task runs at background priority and handles non-time-critical logic, while periodic tasks execute at fixed intervals with preemption rights over the continuous task. Event tasks fire on I/O consumed tag transitions or motion events, enabling sub-millisecond response to hardware signals without polling overhead.

CIP Motion Architecture: Unlike legacy pulse-train or analog ±10 V motion interfaces, the 1769-L30ERM implements CIP Motion — an application layer protocol carried over standard EtherNet/IP. The controller acts as a Motion Originator; each Kinetix drive acts as a Motion Target. The controller generates position, velocity, or torque references within each servo update period and transmits them as Class 1 (I/O) implicit messaging connections. The drive closes the inner current and velocity loops locally, while the controller closes the outer position loop. This distributed loop closure reduces backplane traffic and allows the controller’s CPU to focus on trajectory generation and inter-axis coordination (electronic gearing, camming via MAPC).

Dual-Port EtherNet/IP and DLR: The two embedded Ethernet ports share a single MAC address but implement an internal switch with Device Level Ring (DLR) supervisor capability. In a DLR ring topology, the 1769-L30ERM continuously monitors ring integrity via beacon frames at configurable intervals (default 400 µs). Upon detecting a link fault, the supervisor opens the ring at the fault point within one beacon interval, restoring full communication to all nodes. This hardware-level redundancy mechanism requires no external managed switch and adds no measurable latency to normal operation.

EMC Design: The controller’s PCB layout follows IEC 61131-2 immunity requirements: signal traces are routed away from power planes, the backplane connector uses differential signaling for high-speed data, and the chassis ground is bonded directly to the DIN rail via a low-impedance copper strap. Conducted and radiated emissions are suppressed to CISPR 11 Class A limits. In high-EMI environments (variable frequency drives, welding equipment), the dual-port Ethernet architecture allows physical separation of the motion network from the supervisory SCADA network, further reducing common-mode noise coupling.

Non-Volatile Memory and Battery: User program and data are stored in internal flash memory; no battery is required to retain the program across power cycles. A supercapacitor maintains the real-time clock for approximately 14 days without power. This eliminates battery-replacement maintenance intervals common in older PLC platforms.

System Integration Benefits

• Unified tag database: Motion axis tags, I/O tags, and UDTs (User-Defined Types) reside in a single Logix tag database, eliminating the data-mapping layer required when a separate motion controller communicates with a PLC via fieldbus. Cross-referencing axis position data in HMI or historian applications requires no additional configuration.
• Deterministic servo update period: The CIP Motion servo loop executes at a fixed period (configurable: 1, 2, 4, 8 ms) synchronized across all axes via the EtherNet/IP time synchronization protocol (IEEE 1588 PTP). Jitter is bounded to ±1 µs under normal network load, providing the timing consistency required for multi-axis coordinated motion.
• Integrated motion diagnostics: Studio 5000 Logix Designer exposes axis fault codes, drive status bits, and position error data as standard Logix tags. No separate motion diagnostic tool is required; fault conditions can be latched, alarmed, and logged directly within the controller program using standard ladder or FBD instructions.
• Scalable I/O expansion: Up to 16 local 1769 Compact I/O modules can be added to the right of the controller without additional communication hardware. Module types include digital (24 VDC, 120/240 VAC), analog (±10 V, 4–20 mA, thermocouple, RTD), and specialty (encoder, SSI, HART). Each module is hot-swappable with automatic configuration download.
• FactoryTalk ecosystem integration: The controller natively publishes data to FactoryTalk Historian via the RSLinx Classic or FactoryTalk Linx gateway, and to FactoryTalk View SE/ME HMI without requiring OPC-UA or third-party middleware. Tag browsing is automatic; no manual address mapping is needed.
• Firmware revision management: Firmware updates are applied via USB or EtherNet/IP using ControlFLASH or ControlFLASH Plus. The controller supports in-field firmware upgrade without hardware removal, and the Rockwell Product Compatibility and Download Center (PCDC) maintains a full revision history with release notes and compatibility matrices.
• Safety-ready migration path: The 1769-L30ERMS variant shares the same mechanical footprint and backplane connector, allowing a direct hardware swap to add SIL 2 / PLd integrated safety without redesigning the panel or rewiring the I/O. Safety tags are added to the existing Logix project using the same Studio 5000 environment.
• EDS-based device integration: Third-party EtherNet/IP devices (sensors, drives, vision systems) are integrated using Electronic Data Sheet (EDS) files, which Studio 5000 imports to auto-populate I/O connection parameters. This reduces commissioning time for mixed-vendor architectures and eliminates manual register mapping errors.

Quality Assurance & Global Logistics

Every Allen-Bradley 1769-L30ERM unit supplied by siemensplc.com is sourced through verified industrial distribution channels and undergoes a structured pre-shipment inspection protocol before dispatch from our Xiamen, China warehouse.

Inspection procedure: Each unit is visually inspected for label integrity, holographic authenticity marks, and housing condition. Functional verification includes power-on self-test confirmation and firmware revision check against the Rockwell PCDC database. Serial numbers are cross-referenced against known counterfeit databases maintained by our quality team.

Packaging: Units are shipped in original or equivalent anti-static packaging with desiccant inserts. Outer cartons are double-walled corrugated with foam corner protection rated for 1.2 m drop per ISTA 2A.

Logistics: Standard shipment from Xiamen departs within 1–3 business days of order confirmation. Express air freight (DHL, FedEx, UPS) delivers to most destinations in 3–7 business days. Sea freight consolidation is available for bulk orders. DDP (Delivered Duty Paid) and DAP (Delivered At Place) Incoterms are both supported; our logistics team handles export customs documentation, commercial invoice, and packing list preparation.

Warranty: All units carry a 12-month replacement warranty from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit. No-fault replacement is provided for units confirmed defective on arrival (DOA) within 30 days.
