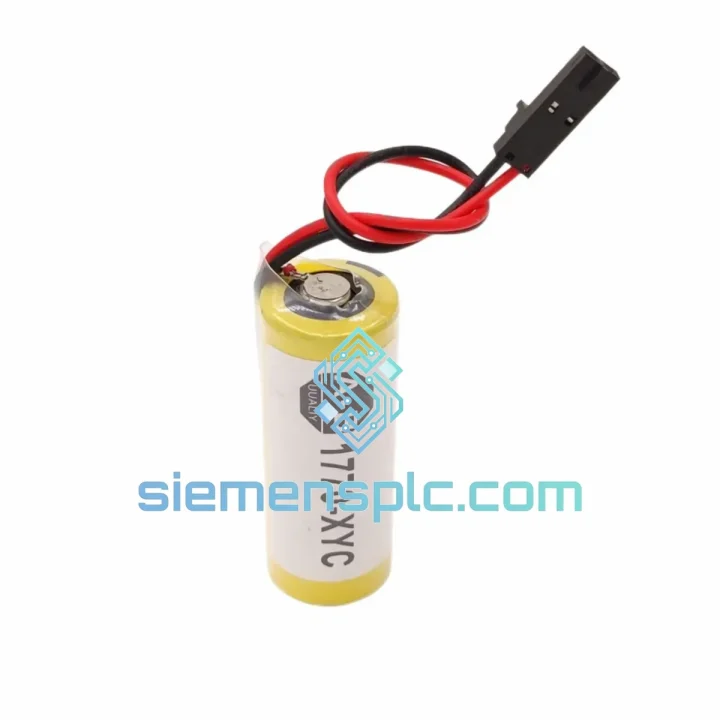

Allen-Bradley 1770-XYC PLC Battery

Allen-Bradley 1770-XYC PLC-5 Battery: Ship Today, Restore Control Tomorrow

Your PLC-5 processor just threw a BAT fault. The line is down. Every minute costs money — rework, idle labor, missed shipments. The 1770-XYC lithium battery module is the single component standing between you and full production recovery. We stock it in Xiamen, we ship it globally via DHL/FedEx Express, and we answer the phone when you call at 2 AM. This is not a catalog listing. This is your fastest path back to green.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Identification

When S:11/14 (BAT bit) goes HIGH in RSLogix 5, you have a closing window — typically 30 days before voltage drops below the CMOS retention threshold. Do not wait for a second warning. A dead battery means a blank processor on the next power cycle: no program, no I/O map, no production.

Common field scenarios that accelerate battery drain:

• Enclosure ambient above 45 °C — lithium self-discharge rate doubles roughly every 10 °C above rated baseline.
• Frequent power cycling (e.g., weekend shutdowns) — each cold-start draws a brief surge from the battery before the backplane PSU stabilizes.
• Battery installed beyond 5 years — even with no fault indication, capacity may be insufficient to survive an extended outage.

Step-by-Step Replacement Procedure

1. Back up first. Connect via 1784-U2DHP or 1784-PCMK and upload the full program to RSLogix 5. Save to a dated file. Non-negotiable.
2. Verify power state. The PLC-5 supports a live battery swap — the backplane PSU holds RAM for approximately 30 seconds with the battery disconnected. If the processor is powered, work fast. If it is powered down, you have already lost RAM; restore from backup after installing the new battery.
3. Locate the battery module. The 1770-XYC sits in a dedicated slot on the PLC-5 processor board, secured by a friction-fit connector. No tools required for extraction — a flat-blade screwdriver for the retaining tab only.
4. Swap and seat. Remove the old module, insert the new 1770-XYC until the connector clicks. Confirm the BAT bit clears within 60 seconds of reinsertion.
5. No address switches, no DIP settings, no firmware interaction. The 1770-XYC is purely passive — it carries no configuration. There is nothing to set.
6. Log the replacement. Record the date, lot number, and technician ID in your asset maintenance register. Set a calendar reminder for 3 years.

Common Fault Codes Related to Battery Failure

• Major Fault Type 1, Code 20 — Memory checksum error on power-up. Caused by RAM corruption from a depleted battery. Requires full program restore.
• Minor Fault Type 1, Code 10 — Low battery warning. Processor continues to run; replace battery at next opportunity.
• I/O Configuration Mismatch on Startup — If the I/O table was lost, the processor will fault on first scan. Re-download configuration from RSLogix 5 after battery replacement.

PLC-5/250 and VME Variants: The standard 1770-XYC does not apply to PLC-5/250 or VME-format processors. Contact us to confirm the correct catalog number before ordering for those platforms.

Reliability in Harsh Conditions

Industrial environments do not forgive weak components. The 1770-XYC is engineered to the same environmental envelope as the PLC-5 processor it protects:

• Vibration resistance — The plug-in module design eliminates solder joint fatigue. The friction-fit connector maintains electrical contact under continuous vibration loads typical of press lines, compressor rooms, and conveyor drive panels.
• Thermal cycling tolerance — Lithium-manganese dioxide chemistry maintains stable open-circuit voltage across the full 0–60 °C operating range. Unlike alkaline cells, capacity degradation is gradual and predictable, not sudden.
• Humidity and condensation — The sealed cell construction prevents electrolyte migration in high-humidity environments (water treatment, food processing, coastal installations). No corrosion risk to the processor board from battery leakage — a known failure mode with older nickel-cadmium backup cells.
• Long shelf life — Lithium chemistry retains greater than 90% of rated capacity after 5 years of storage at 20 °C. Units shipped from our warehouse are lot-traced and voltage-verified at dispatch (minimum 2.9 V DC open-circuit).
• EMI immunity — Passive component with no active circuitry. Zero susceptibility to conducted or radiated electromagnetic interference — relevant in VFD-dense panels and high-current switchgear rooms.

Global Express Logistics

Our fulfillment hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx Express gateway access. Here is what happens after you place your order:

• Same-day cut-off: 15:00 CST. Orders confirmed before 3 PM China Standard Time ship the same business day. Orders after cut-off ship the following morning.
• DHL Express Worldwide — Transit time: 2–4 business days to Europe, Middle East, and Southeast Asia; 3–5 business days to North America and South America. Door-to-door with customs clearance included.
• FedEx International Priority — Available for US, Canada, and Mexico destinations. Typical transit: 2–3 business days from Xiamen to major US hubs.
• Lithium battery compliance pre-handled. The 1770-XYC ships under IATA PI 968 Section II. Our logistics team prepares the required dangerous goods declaration, UN3090 labeling, and carrier-specific documentation. You receive a compliant shipment — no customs delays from improper DG paperwork.
• Tracking provided immediately. AWB number sent via email within 2 hours of dispatch. Real-time tracking link included.
• Emergency AOG / production-down orders. Contact us via WhatsApp at +86 18359268345 for priority queue placement and expedited customs pre-clearance coordination.
