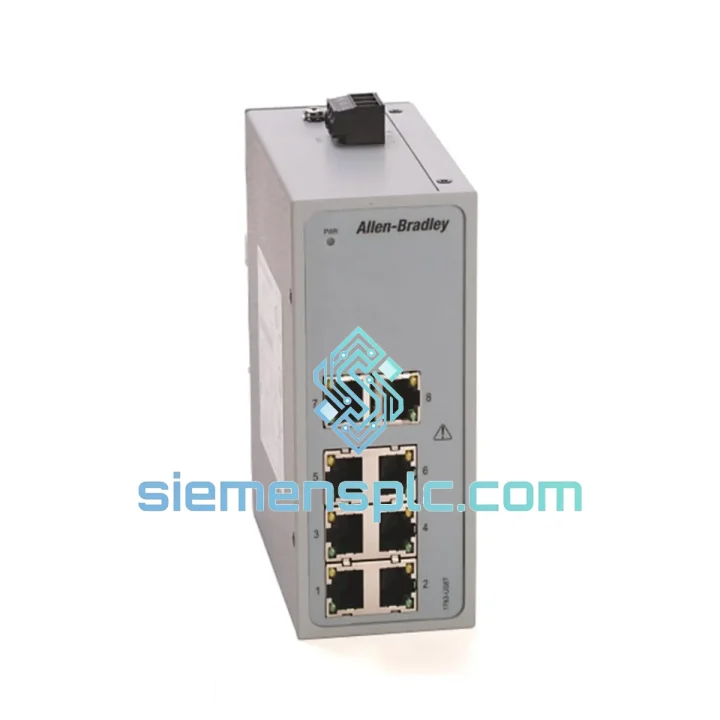

Allen-Bradley 1783-US08T Industrial Ethernet Switch – Stratix 2000

Allen-Bradley 1783-US08T: 8-Port Unmanaged EtherNet/IP Switch for Device-Level Industrial Networks

The Allen-Bradley 1783-US08T is a fixed-configuration, unmanaged Fast Ethernet switch engineered for deterministic device-level networking within Rockwell Automation control architectures. Positioned at the edge of the EtherNet/IP topology, this switch provides eight 10/100BASE-TX copper ports that interconnect PLCs, servo drives, distributed I/O adapters, and HMI terminals without requiring any configuration overhead. Its role in the control loop is straightforward but operationally critical: it extends the EtherNet/IP segment to field devices while maintaining the low-latency, collision-free forwarding behavior that cyclic I/O traffic demands. Because the switch operates at Layer 2 with store-and-forward switching, each frame is fully received and error-checked before forwarding, eliminating corrupted frames from propagating to connected controllers and causing nuisance faults.

Unlike managed counterparts in the Stratix 5700 or 5400 families, the 1783-US08T deliberately omits SNMP, IGMP snooping, and VLAN segmentation. This design choice is intentional: in machine-level cells where all nodes belong to a single EtherNet/IP subnet and multicast traffic volume is low, the absence of management overhead reduces switch latency jitter and eliminates misconfiguration risk during commissioning. The result is a switch that is operationally transparent to the ControlLogix or CompactLogix controller scanning the network.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1783-US08T is built around a single-chip Fast Ethernet switch ASIC that implements a shared-memory, store-and-forward forwarding plane. Each ingress port deposits the complete Ethernet frame into a centralized packet buffer before the forwarding engine performs a MAC lookup against the 1,024-entry CAM table. This architecture guarantees that frames with CRC errors are discarded at the ingress port rather than forwarded, which is a non-trivial advantage in industrial environments where cable runs near variable-frequency drives or servo amplifiers can introduce transient noise onto copper pairs.

EMC Design: The switch housing is a grounded metal enclosure bonded to the DIN rail ground bus, providing a continuous Faraday shield around the switching circuitry. The RJ45 port magnetics include integrated common-mode chokes rated to suppress differential noise up to 1,500 V transient per IEEE 802.3 clause 14. This is particularly relevant in panel environments where 24 VDC power rails and EtherNet/IP cabling share the same cable duct — a common layout in compact machine cells.

Power Architecture: The 1783-US08T accepts a wide-range 18–30 VDC input, which accommodates the natural voltage droop on long 24 VDC panel wiring runs without requiring a dedicated regulated supply. Internal power conditioning uses a low-dropout linear regulator topology rather than a switching converter, which eliminates the possibility of the switch itself injecting conducted EMI back onto the 24 VDC bus — a failure mode occasionally observed with cheaper switching-supply-based alternatives.

Thermal Management: The fanless, convection-cooled design relies on the metal enclosure as a passive heat spreader. At maximum port utilization and 60 °C ambient, the ASIC junction temperature remains within its rated envelope, confirmed by Rockwell Automation’s thermal qualification testing. The absence of a fan eliminates the single highest-failure-rate mechanical component in network hardware, directly extending mean time between failures (MTBF) in dusty or vibration-prone panel environments.

Port Isolation and Backpressure: In half-duplex mode, the switch implements IEEE 802.3x-compliant backpressure to signal congestion to legacy 10BASE-T devices. In full-duplex mode, standard PAUSE frames are used. Because EtherNet/IP cyclic I/O frames are typically 100–200 bytes and arrive at fixed RPI intervals, the 512 KB shared buffer is more than sufficient to absorb burst traffic from simultaneous I/O updates across all eight ports without frame loss.

System Integration Benefits

• Zero-configuration commissioning: The switch requires no IP address, no BOOTP/DHCP interaction, and no RSLinx or Studio 5000 configuration. Plug in power and Ethernet cables — the switch is operational within 5 seconds of power-up, reducing panel commissioning time measurably on multi-node machine cells.
• Deterministic forwarding latency: Store-and-forward latency for a 64-byte frame at 100 Mbps is approximately 5.76 µs per hop. For EtherNet/IP implicit messaging with RPI values of 10 ms or greater, this latency is negligible and does not affect controller scan-time budgets.
• EtherNet/IP topology compatibility: The 1783-US08T supports both star and daisy-chain topologies. When used as a star concentrator feeding a ControlLogix EN2T or EN3TR module, it provides the physical layer foundation for Device Level Ring (DLR) fault detection — the managed ring nodes handle DLR protocol while the 1783-US08T handles the star segment transparently.
• Seamless coexistence with managed Stratix switches: Because the 1783-US08T is ODVA EtherNet/IP Conformance Tested, it interoperates without issue in hybrid topologies where Stratix 5700 or 5400 managed switches handle the backbone and the 1783-US08T handles device-level star segments. No VLAN tagging or QoS configuration is required on the managed switch uplink port.
• Reduced panel footprint: At 45 mm wide on DIN rail, the 1783-US08T occupies less horizontal rail space than a typical 24 VDC terminal block group. This allows system integrators to add network connectivity to compact panels without redesigning the enclosure layout.
• Diagnostic transparency via LED indicators: Per-port link/activity LEDs provide immediate visual confirmation of physical connectivity during commissioning and troubleshooting. A solid green link LED on a port eliminates the physical layer as a fault source without requiring a laptop or network analyzer.
• Broad device compatibility: Auto-MDI/MDIX on all ports eliminates the need for crossover cables when connecting PLCs, drives, or I/O adapters directly. Auto-negotiation ensures compatibility with legacy 10BASE-T devices that may be present in retrofit applications alongside modern 100BASE-TX equipment.
• Low power draw reduces panel thermal load: At ≤ 3.5 W typical consumption, the 1783-US08T contributes minimally to panel heat dissipation calculations. In thermally constrained enclosures, this is a meaningful advantage over managed switches that may draw 15–25 W under full load.
• Consistent availability across Rockwell Automation lifecycle phases: The Stratix 2000 family is positioned by Rockwell Automation as a long-lifecycle product for machine-level networking, reducing the risk of mid-project obsolescence that can affect procurement timelines on multi-year capital projects.
