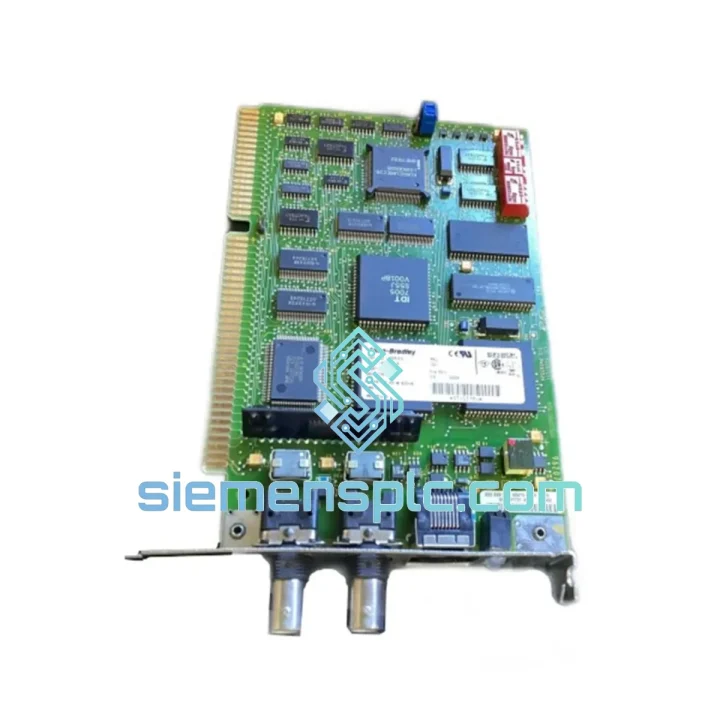

Allen-Bradley 1784-KTCX15 ControlNet Interface Card – 1784 Series

Allen-Bradley 1784-KTCX15: ISA-Bus ControlNet Node Interface for Deterministic Industrial Networks

The Allen-Bradley 1784-KTCX15 is a half-length ISA-bus ControlNet communication interface card engineered by Rockwell Automation for direct node participation on ControlNet (IEC 61158 / ODVA) networks. Within a control loop architecture, this card occupies the role of a deterministic network gateway between the engineering workstation or HMI PC and the ControlNet backbone — eliminating the latency and non-determinism inherent in software-only or USB-bridged solutions. It enables the host PC to function as a full ControlNet node, capable of both scheduled (implicit) and unscheduled (explicit) messaging, which is the architectural prerequisite for real-time I/O ownership and peer-to-peer data exchange in PLC-5, SLC 500, and early ControlLogix topologies.

In production environments where ControlNet serves as the primary I/O bus — automotive body-in-white lines, continuous chemical processes, water treatment SCADA, and food-grade batch systems — the 1784-KTCX15 provides the workstation-level access point for RSLogix programming, RSLinx OPC data bridging, and live network diagnostics. Its onboard ASIC handles all MAC-layer scheduling autonomously, offloading the CTDMA (Concurrent Time Domain Multiple Access) time-slot management from the host CPU and ensuring that network participation does not degrade workstation responsiveness during high-load programming sessions.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1784-KTCX15 is built around a dedicated ControlNet ASIC that implements the full CTDMA MAC layer in silicon, independent of the host processor. This architectural decision has two measurable consequences: first, the card can maintain scheduled connection timing with sub-millisecond jitter regardless of host CPU load; second, the ISA bus DMA channel is used only for data transfer bursts, not for real-time protocol execution, which keeps ISA bus occupancy low and avoids the bus contention that plagued earlier software-stack implementations.

Redundant Media Arbitration: Both BNC ports are active simultaneously. The card’s media arbitration logic continuously monitors signal quality on each cable using Manchester encoding error counters. When the primary cable’s bit error rate exceeds the ODVA-specified threshold, the arbitration circuit switches receive operations to the secondary cable within a single NUT interval — typically 2–10 ms — without issuing a connection timeout to the host application. This is a hardware-level failover, not a software retry loop, which is why ControlNet redundant media is classified as transparent to the application layer.

EMC Design: The card’s BNC signal traces are impedance-controlled at 75 Ω to match RG-6 coaxial cable, preventing reflections that would corrupt the Manchester-encoded ControlNet signal at 5 Mbps. The ISA edge connector region uses a ground plane pour to suppress common-mode noise coupling from adjacent ISA cards. Ferrite beads are placed on the +5 VDC supply lines to attenuate high-frequency switching noise from the PC power supply — a known interference source in industrial PC enclosures operating near variable-frequency drives.

Scheduled vs. Unscheduled Channel Separation: The ASIC maintains two independent message queues: a scheduled queue serviced at every NUT interval for implicit I/O data, and an unscheduled queue serviced in the remaining bandwidth for explicit messaging (RSWho, upload/download, diagnostics). This separation ensures that a burst of unscheduled traffic — such as a full program upload — cannot starve the scheduled I/O channel, preserving determinism for safety interlocks and motion control loops running concurrently.

System Integration Benefits

• Full ControlNet Node Participation: The host PC becomes a first-class ControlNet node with a configurable node address (1–99), enabling it to own scheduled I/O connections directly — not merely observe traffic as a passive monitor.
• RSLinx Classic Native Driver: The 1784-KTCX15 driver is natively integrated into RSLinx Classic, providing zero-configuration access to RSLogix 5, RSLogix 500, and RSLogix 5000 programming environments without additional middleware.
• OPC Server Compatibility: RSLinx Classic exposes ControlNet data tags as OPC DA items, allowing SCADA platforms (iFIX, Wonderware, Ignition) to subscribe to real-time I/O data from ControlNet devices through the card without a separate gateway appliance.
• Deterministic Real-Time Response: CTDMA scheduling guarantees that each scheduled connection receives its allocated bandwidth every NUT cycle, providing bounded latency for time-critical control loops — a requirement that polling-based Ethernet solutions cannot match without additional QoS infrastructure.
• Diagnostic Transparency: RSLinx Classic’s ControlNet diagnostics module, accessed through the 1784-KTCX15, reports per-node connection status, missed packet counts, and media error statistics in real time, enabling engineers to identify cable degradation before it causes a connection timeout.
• Redundant Media Failover: Hardware-level dual-cable arbitration provides network resilience without any application-layer modification, reducing unplanned downtime risk in facilities where cable damage from mobile equipment or thermal cycling is a documented failure mode.
• Legacy System Longevity: For facilities operating PLC-5 or SLC 500 systems on ControlNet, the 1784-KTCX15 is the only ISA-bus interface that provides full scheduled connection support — making it an irreplaceable component for maintaining programming and diagnostic access without a full control system migration.
• Low Host CPU Overhead: Because the onboard ASIC handles all MAC-layer processing, the host CPU overhead for ControlNet communication is limited to DMA buffer management, typically less than 2% CPU utilization at maximum connection load — leaving host resources available for HMI rendering and historian logging.
• Peer-to-Peer Messaging: The card supports producer/consumer messaging between ControlNet nodes, enabling workstation-based soft logic or data logging applications to exchange data directly with PLCs and remote I/O adapters without routing through a controller.
• Field-Upgradeable Firmware: Firmware updates are applied through RSLinx Classic without card removal, allowing compatibility patches and protocol updates to be deployed during scheduled maintenance windows.

Quality Assurance & Global Logistics

Every 1784-KTCX15 unit supplied by siemensplc.com is sourced as genuine Allen-Bradley / Rockwell Automation hardware — procured through authorized distribution channels, verified OEM decommissions, and certified industrial surplus with documented chain-of-custody records. No counterfeit or remanufactured units are accepted into inventory.

Incoming Inspection Protocol: Each unit undergoes a structured inspection sequence: visual examination of PCB surface for corrosion, cracked solder joints, and component damage; BNC port mechanical integrity check; ISA edge connector cleaning and continuity verification; and firmware version documentation.

Functional Bench Test: Cards are powered in a live ISA-bus test chassis running RSLinx Classic. Node registration on a ControlNet segment is confirmed, scheduled connections are established to a reference PLC-5 node, and data throughput is verified at 5 Mbps across both BNC ports including redundant media switchover. Test results are logged and available upon request.

ESD-Safe Packaging: Units are shipped in anti-static bags with humidity indicator cards, enclosed in foam-lined corrugated cartons rated for international air freight handling. Each shipment includes a commercial invoice, packing list, and certificate of origin for customs clearance.

Global Logistics from Xiamen, China: Our warehouse is located in Xiamen, Fujian Province — a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard air freight transit times: 3–5 business days to Europe, 2–4 business days to Southeast Asia, 4–6 business days to North America. Sea freight consolidation is available for bulk orders. Export documentation including HS code classification assistance is provided for all cross-border shipments.

12-Month Warranty: All units carry a 12-month warranty from the date of shipment covering functional defects. Warranty claims are processed with a replacement unit dispatched within 5 business days of confirmed fault diagnosis.
