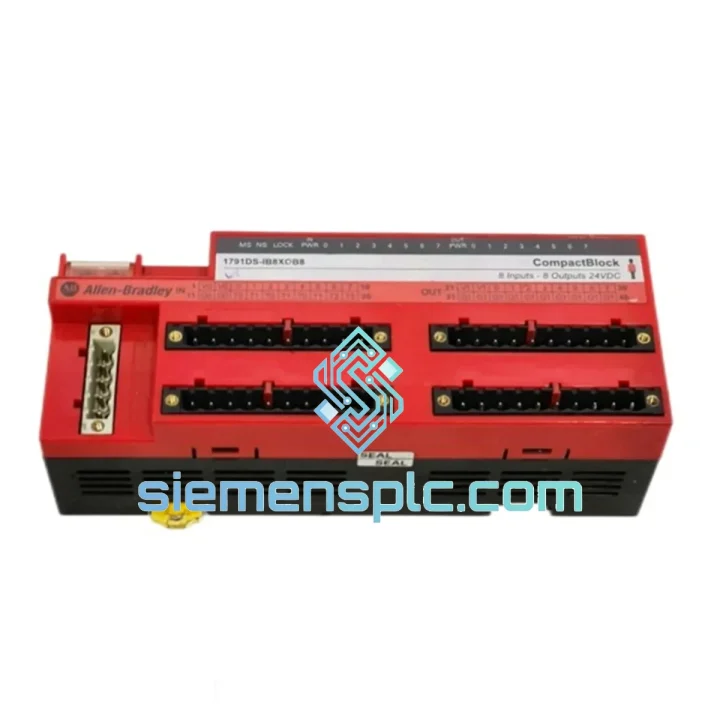

Allen-Bradley 1791-DSIB8XOB8 PLC I/O Module

1791-DSIB8XOB8 Down? Every Minute Costs You — We Ship Today

You already know the math. A halted conveyor, a frozen welding cell, a packaging line that won’t restart — the clock starts the moment that I/O block goes dark. The Allen-Bradley 1791-DSIB8XOB8 is a mid-density discrete block I/O module: 8 × 24V DC sink inputs, 8 × 24V DC source outputs, DeviceNet/RIO communication, IP67-sealed housing. It sits at the edge of your machine, and when it fails, nothing downstream moves. We stock it. We ship same day from Xiamen. That’s the only thing that matters right now.

This module is end-of-life from Rockwell Automation, which means your distributor’s lead time is measured in weeks — not hours. Ours isn’t. We maintain verified new-surplus and factory-refurbished stock specifically for emergency replacement scenarios. Every unit is inspected, tested, and packed for international express transit before it leaves our warehouse.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The three failure modes I see most on the 1791-DSIB8XOB8 in the field:

1. Node goes offline — no heartbeat on DeviceNet scanner. Before you pull the module, check the MAC ID rotary switches on the side of the block. Vibration over time can shift them by one position. If your scanner was configured for node 5 and the switch crept to 6, the scanner will fault with a “device not found” error and the module looks dead. Verify MAC ID first. Takes 30 seconds and saves you a module swap.

2. Outputs stuck ON or OFF — no fault LED, module appears healthy. This is almost always a 24V DC supply issue at the output power connector, not the module itself. The 1791-DSIB8XOB8 uses a separate output power feed. Measure voltage at the M12 output power connector under load. If it drops below 21.6V, your supply is sagging and the output driver protection is kicking in. Replace the supply before condemning the module.

3. Module faults immediately after replacement — scanner reports “identity mismatch.” The 1791 series uses electronic keying in RSLogix/Studio 5000. If the replacement unit is a different revision letter (e.g., Series A vs. Series B), the controller will reject it with a keying fault. Go to the I/O tree in Studio 5000, right-click the module, select Properties → General, and change Electronic Keying from “Exact Match” to “Compatible Module.” Save and download. The module will come online.

Replacement procedure — field checklist:

1. Inhibit the module in the I/O tree before physical removal to prevent nuisance faults on the scanner.
2. Document the MAC ID switch position on the failed unit before disconnecting cables.
3. Set the replacement unit’s MAC ID rotary switches to match — do this before connecting to the network.
4. Reconnect DeviceNet trunk and drop cables, then the 24V DC supply and output power connectors.
5. Un-inhibit the module in Studio 5000 / RSLogix. If keying faults occur, adjust Electronic Keying as described above.
6. Verify all 8 input LEDs respond to field device actuation and all 8 output LEDs energize under PLC command before releasing the line.

Firmware note: The 1791-DSIB8XOB8 does not have user-upgradeable firmware. If you receive a “firmware incompatible” fault, it is a keying configuration issue in the controller, not a firmware mismatch on the module itself.

Reliability in Harsh Conditions

The 1791-DSIB8XOB8 was engineered for machine-mount deployment — meaning it lives outside the control cabinet, directly on the machine frame, exposed to everything the production floor throws at it. The IP67 rating is not a marketing claim; it means the housing has been tested to withstand continuous dust ingress and temporary water immersion to 1 meter for 30 minutes. In automotive body shops, that translates to daily coolant mist, metal swarf, and high-pressure washdown cycles without seal failure.

The M12 circular connectors used for DeviceNet and power are rated for vibration environments per IEC 60068-2-6 — the same standard used for rail and heavy equipment applications. In stamping press environments where the module sits within 2 meters of a 400-ton press, the connector retention and PCB mounting have been validated to handle continuous mechanical shock without intermittent contact faults.

Operating range of 0°C to +55°C covers the majority of industrial environments, including unheated warehouses in northern climates and non-air-conditioned production cells in Southeast Asia. The sealed housing also prevents condensation ingress during temperature cycling — a common failure mode for unsealed terminal-block I/O in environments with large day/night temperature swings.

Units in our stock are stored in climate-controlled conditions with anti-static packaging and moisture barrier bags. Long-term storage does not degrade the solid-state output drivers or the DeviceNet ASIC — there are no electrolytic capacitors in the signal path that would age out during storage.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. For emergency replacement orders, this geography matters: Xiamen has daily outbound flights to major hubs in Europe, North America, Southeast Asia, and the Middle East, which means your module is not sitting in an inland consolidation center waiting for a truck.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days via DHL Express
• Europe (Germany, Netherlands, UK): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia): 3–4 business days via FedEx International Priority
• Australia / New Zealand: 3–5 business days via DHL Express

Every shipment includes: commercial invoice with accurate HS code classification, packing list, and certificate of origin where required. For customers in countries with import duty exemptions on industrial automation components, we can provide the documentation your customs broker needs to process clearance without delay. We have shipped to over 40 countries and understand the documentation requirements for each major market.

Tracking numbers are provided within 2 hours of shipment. For critical downtime situations, we can arrange Saturday pickup with DHL to avoid losing a weekend day on a Monday delivery.
