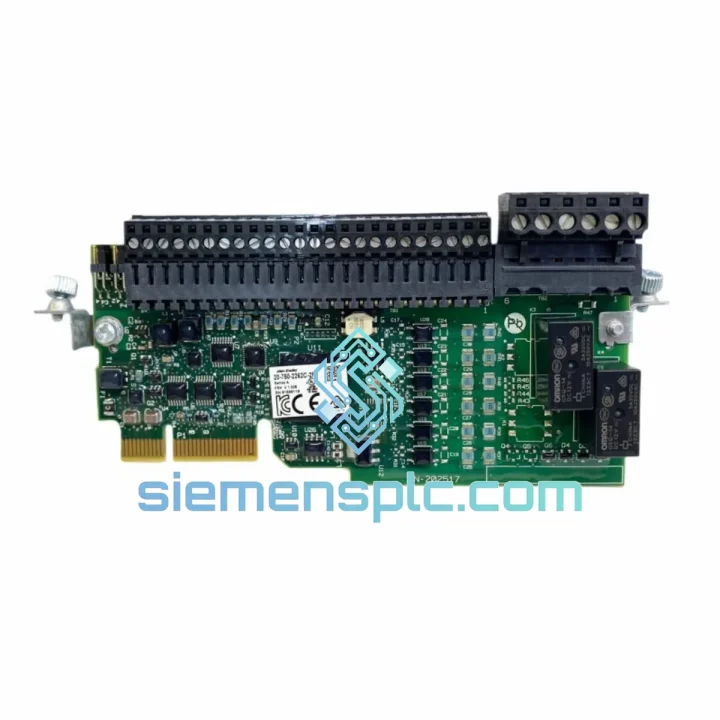

Allen-Bradley 20-750-2262C-2R PLC I/O Option Module

20-750-2262C-2R Down? Every Minute Costs You — We Ship Within 24 Hours

Your PowerFlex 755 just faulted. The line is cold. Maintenance is standing by. You’ve already pulled the 20-750-2262C-2R from the option slot and confirmed it’s the culprit — now you need a replacement, not a lecture on lead times. We stock the Allen-Bradley 20-750-2262C-2R 24V DC Digital I/O Option Module and ship from Xiamen via DHL Express. Most orders clear customs and land on your dock within 3–5 business days, anywhere in the world. That’s the difference between a shift delay and a week-long shutdown.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on PowerFlex 750 drives teach you the same lesson repeatedly: the 20-750-2262C-2R fails in predictable ways. Here’s what to check before you condemn the module — and what to do when you’ve confirmed it’s dead.

Common Fault Codes Linked to This Module:

• Fault 71 – Option Module Fault: Drive detects a communication error with the option module. First, reseat the module firmly — the backplane connector is a friction-fit and vibration loosens it over time. If the fault persists after reseating, the module’s internal bus transceiver has likely failed.
• Fault 81 – Option Module Removed: Triggered when the drive loses contact mid-run. In high-vibration environments (compressors, crushers, presses), this is almost always a mechanical seating issue. Add a retention clip if your drive chassis supports it.
• Fault 122 – I/O Module Configuration Mismatch: Appears after a firmware update or drive replacement. The drive’s stored option module configuration no longer matches the installed hardware. Navigate to Parameter 1 (Option Module Config) and perform a module reset to re-enumerate.
• Outputs stuck ON or OFF: Solid-state outputs fail short or open under inductive load transients. If your outputs drive solenoid valves or contactors without flyback diodes, expect premature output failure. Always install a suppression diode across inductive loads.
• Inputs not reading correctly: Verify the sink/source jumper configuration matches your field wiring. The 20-750-2262C-2R supports both NPN and PNP sensors, but the jumper must be set correctly — a mismatch gives you floating or inverted input states, not a fault code.

Step-by-Step Replacement Procedure:

1. Inhibit the drive from the PLC or HMI. Do not rely on E-stop alone — the drive must be in a safe, inhibited state before you open the option slot cover.
2. Remove AC power and wait a minimum of 5 minutes for the DC bus to discharge below 50V. Verify with a meter — the bus capacitors on a 755 frame hold lethal charge longer than you expect.
3. Photograph the existing wiring on the I/O terminal block before disconnecting. The 20-750-2262C-2R uses a removable terminal block — pull it off as a unit and transfer it to the new module. This eliminates re-wiring errors.
4. Release the option module locking tab and slide the old module out of the slot. Inspect the backplane connector pins for corrosion or bent contacts — a damaged backplane connector means a drive chassis swap, not just a module swap.
5. Slide the new 20-750-2262C-2R into the same slot until the locking tab clicks. Do not force it — if it doesn’t seat smoothly, check for debris in the slot or misalignment with the guide rails.
6. Reattach the terminal block. Restore power. The drive firmware will auto-enumerate the new module within 10–15 seconds of power-up. No parameter file upload required.
7. Verify all I/O points from the PLC. Force each input and output individually before returning the line to production. A 5-minute I/O checkout prevents a second callout.

Configuration Notes: Unlike some third-party I/O modules, the 20-750-2262C-2R has no DIP switches or address jumpers. Slot position determines the parameter address block automatically. If you’re replacing a module in Port 5, the new module in Port 5 will inherit the same parameter mapping — no drive re-configuration needed, provided the drive firmware version is compatible (FW 3.001 or later recommended for full feature support).

Reliability in Harsh Conditions

Industrial environments don’t care about your warranty. Cement plants, offshore platforms, steel mills, and food processing lines all share one thing: they destroy electronics faster than the datasheet predicts. The 20-750-2262C-2R is built to survive where lesser modules fail.

Vibration: The module’s backplane connector is a high-retention friction-fit design, not a standard PCB edge connector. In applications with continuous vibration — compressor rooms, crusher drives, press lines — the module maintains electrical contact where ribbon-cable or card-edge designs would intermittently fault. The PCB itself is conformally coated on production runs, providing mechanical damping for surface-mount components under sustained vibration loads.

Thermal Cycling: Operating range of 0 °C to +50 °C covers the majority of industrial panel environments, but the real test is thermal cycling — the daily expansion and contraction of solder joints and connector contacts in outdoor or unheated enclosures. The module’s storage rating of −40 °C to +85 °C means it survives cold-start conditions in northern climates without cracking solder joints or delaminating the PCB substrate.

Humidity and Condensation: Rated to 95% RH non-condensing. In practice, the optical isolation on all input circuits provides a critical barrier — field-side moisture and ground loops cannot propagate into the drive logic board. This is the single most important reliability feature in pump stations, cooling towers, and outdoor switchgear applications where condensation is a daily reality.

Electrical Noise: The 24V DC input circuits are optically isolated and filtered, providing immunity to the high-frequency switching noise generated by the drive’s own IGBT output stage. This matters in applications where the I/O wiring runs parallel to motor cables — a common installation mistake that causes phantom input triggering on lesser modules.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct DHL Express and FedEx International Priority connections to major industrial hubs worldwide. Here’s exactly how your order moves:

• Day 0 — Order Confirmation: You send your PO or WhatsApp message. We confirm stock, issue a proforma invoice, and begin pre-shipment inspection within 2 hours during business hours (GMT+8, Mon–Sat).
• Day 1 — Pre-Shipment Inspection & Packing: The 20-750-2262C-2R is inspected for label integrity, connector condition, and housing damage. Packed in anti-static ESD bag, foam-cushioned, inside a double-wall corrugated carton. Commercial invoice and packing list prepared for customs clearance.
• Day 1–2 — DHL/FedEx Pickup & Tracking: Shipment handed to DHL Express or FedEx International Priority. Tracking number sent to you via email and WhatsApp within 30 minutes of carrier pickup.
• Day 3–5 — Delivery to Your Dock: DHL Express transit times from Xiamen: Europe 3–4 days, North America 3–5 days, Southeast Asia 2–3 days, Middle East 3–4 days, Australia 3–4 days. Customs clearance is handled by the carrier’s brokerage network — we provide all required documentation (HS code 8538.90, commercial invoice, packing list) to minimize customs delays.
• Post-Delivery Support: If you have installation questions after the module arrives, our technical team is reachable via WhatsApp. We’ve commissioned enough PowerFlex 750 systems to walk you through any edge case.

For orders requiring same-day dispatch, contact us before 14:00 GMT+8. We will confirm feasibility based on current stock and carrier pickup schedules.
