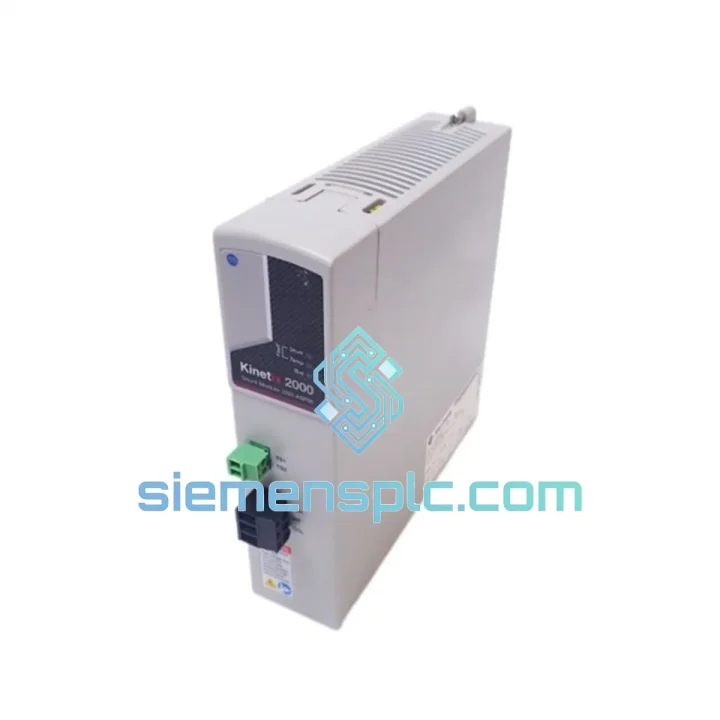

Allen-Bradley 2093-ASP06 Shunt Module

2093-ASP06 Kinetix 2000 Shunt Module: Cut Downtime Before It Cuts Your Margin

A regenerative braking fault on a Kinetix 2000 multi-axis system does not wait for a convenient moment. The DC bus spikes, the drive trips, and the line stops. If the 2093-ASP06 external shunt module is the culprit — whether it has failed outright, degraded under repeated thermal cycling, or was simply undersized for an expanded axis configuration — you need a verified replacement unit in hand, not a purchase order acknowledgment with a six-week lead time attached.

We stock the 2093-ASP06 in our Xiamen warehouse. The unit on this listing is not allocated, not inbound, and not subject to a distributor’s backorder queue. It is on the shelf, inspected, and ready to pack the moment your order is confirmed. Orders placed before 15:00 CST move the same calendar day via DHL Express or FedEx International Priority. That is the only promise that matters when your production floor is standing still.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault codes that point to this module:

• F004 — DC Bus Overvoltage (Instantaneous): Regenerative energy from a decelerating load exceeded the drive’s internal clamp capacity. Before condemning the shunt module, verify the connector is fully seated on the power rail — a partial engagement creates intermittent contact that produces exactly this fault signature. Push the module in firmly until the latch clicks audibly.
• F005 — DC Bus Overvoltage (Sustained): The shunt engaged but could not dissipate energy fast enough. Two causes: the resistor element has degraded (measure resistance across the shunt terminals — deviation beyond ±10% of nameplate value confirms failure), or the deceleration ramp is too aggressive for the module’s duty cycle rating. If sizing is correct and resistance checks out, replace the module.
• Shunt Overtemperature Warning: The PTC thermistor is signaling the drive before the resistor reaches a destructive temperature. Check panel airflow — the 2093-ASP06 requires a minimum 50 mm clearance above and below for convection cooling. A blocked vent or a neighboring heat source will trigger this warning even on a healthy module.

Field replacement procedure — step by step:

1. Command a controlled E-Stop. Allow the drive to complete its active deceleration sequence rather than cutting power abruptly — this protects the motor and the bus capacitors.
2. Open the upstream disconnect and apply LOTO per your site procedure. Do not rely on the drive’s enable signal alone.
3. Wait a minimum of five minutes after power removal. Measure DC bus voltage across the capacitor terminals with a calibrated DMM. Proceed only when the reading is below 50 VDC.
4. Press the release tab on the shunt connector and pull straight back. Do not twist or lever — the rail header is not designed for lateral force and will crack if forced.
5. Slide the module off its mounting position and note the orientation. The replacement installs in the same attitude.
6. Seat the new 2093-ASP06. The connector is polarized and keyed — it accepts insertion in one orientation only. Apply firm, even pressure until the latch engages with a positive click. A loose connection here is the leading cause of repeat F004 faults after a shunt swap.
7. Restore power. Clear the fault via Studio 5000 Logix Designer or the drive’s HIM keypad. Run a slow-speed jog cycle and monitor DC bus voltage in the drive’s diagnostic screen before returning to production speed.
8. No firmware update, no DIP switch configuration, no parameter re-entry. The 2093-ASP06 is a passive resistor module — the Kinetix 2000 power rail detects it automatically.

Configuration details engineers frequently overlook:

• If you have added axes to an existing Kinetix 2000 system since the original commissioning, re-run Rockwell’s Motion Analyzer tool. The original shunt sizing was calculated for a specific combined regenerative load — additional axes braking simultaneously may exceed that calculation.
• The 2093-ASP06 is not cross-compatible with Kinetix 6000 (2094-BSP2) or Kinetix 5500 regenerative supply modules. The power rail connectors are physically distinct — do not attempt to adapt them.
• For applications with deceleration ramps under 200 ms at high-inertia loads, consider adding a motor-shaft mechanical brake to share braking duty and extend shunt service life between replacements.

Reliability in Harsh Conditions

The 2093-ASP06 was engineered for the same panel environments where Kinetix 2000 drives operate — which means it has been validated against conditions that routinely destroy lesser components. The wirewound resistor element maintains its resistance value across thousands of thermal cycles. Film resistors crack under repeated heat stress; wirewound construction does not. The PTC thermistor used for thermal protection does not drift over time the way bimetallic switches do, so the protection threshold remains accurate across the module’s full service life.

Mechanical integrity under vibration is handled at the connector level. The power rail latch does not rely on friction — it is a positive mechanical lock. On press lines, stamping equipment, and heavy conveyor drives where panel vibration is continuous, the connector stays engaged. Vibration-induced connector loosening is a documented failure mode on shunt modules that use friction-fit connections; the Kinetix 2000 rail interface eliminates it by design.

The PCB inside the module carries a conformal coating that resists condensation in facilities where temperature swings cause moisture to form on cold surfaces — a common scenario in plants that run continuous shifts and then cool down over weekends. The IP20 rating still requires enclosure installation in wet or dusty environments, but within a properly rated panel, the module handles the full specified humidity range without derating.

Every unit that enters our inventory is inspected on receipt: physical condition, connector integrity, label authenticity, and resistance measurement. Units that do not pass do not go on the shelf. What ships to you is what we would install ourselves.

Global Express Logistics

Our facility is located in Xiamen, Fujian — a primary export hub with direct access to Xiamen Gaoqi International Airport and daily scheduled pickups by both DHL Express and FedEx International Priority. This is not a drop-ship or third-party fulfillment arrangement. The unit is physically in our warehouse.

Estimated transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days — DHL Express
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days — FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days — DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days — FedEx International Priority
• Australia & New Zealand: 3–4 business days — DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days — customs clearance times vary by country

Standard shipment documentation includes a commercial invoice, packing list, and HS code declaration. Customers in regulated industries who require a Certificate of Conformance or a country-of-origin declaration should request these documents at order time — we include them in the shipment package at no additional charge.

Same-day dispatch cut-off is 15:00 CST (UTC+8). Orders confirmed with payment before that time ship the same calendar day. Orders confirmed after cut-off ship the following business day. A tracking number is sent by email within two hours of dispatch.
