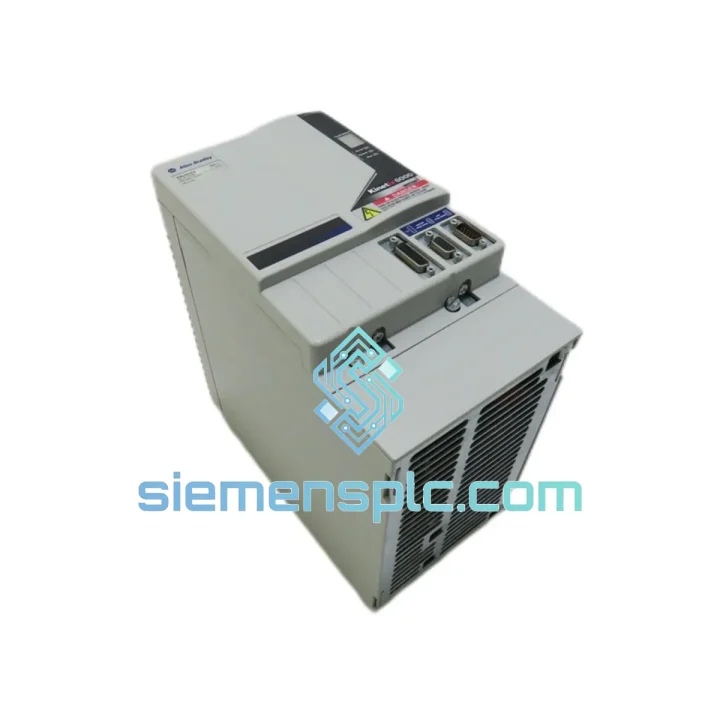

Allen-Bradley 2094-BM05 Servo Drive Axis Module – Kinetix 6000

Allen-Bradley 2094-BM05: Shared-Bus Axis Module for Kinetix 6000 Multi-Axis Servo Systems

The 2094-BM05 is a dedicated Axis Module (AM) within Rockwell Automation’s Kinetix 6000 multi-axis servo drive platform. Rated at 5 A RMS continuous output current with a 10 A RMS peak envelope, this module occupies a single slot on the 2094-series power rail and draws its DC bus energy from the upstream Integrated Axis Module (IAM), eliminating the need for an independent rectifier stage per axis. The result is a mechanically compact, thermally predictable drive node suited to coordinated motion architectures where four to eight axes share a common DC bus and a single SERCOS II fiber-optic ring.

In a closed-loop servo system, the 2094-BM05 functions as the final power-conversion and feedback-processing node between the motion controller and the servo motor. It receives velocity and torque references from the ControlLogix or CompactLogix motion controller via the SERCOS II ring at cycle times as low as 1 ms, executes the inner current-control loop at its internal PWM switching frequency, and returns actual position, velocity, and drive-status data to the controller within the same SERCOS cycle. This deterministic exchange is the architectural foundation for tight multi-axis synchronization in applications such as electronic gearing, cam profiling, and coordinated pick-and-place.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2094-BM05 is built around a three-phase IGBT inverter bridge with gate-drive circuitry that operates at either 4 kHz or 8 kHz PWM frequency. At 8 kHz, the audible switching noise is pushed above the threshold of most industrial environments, and the current ripple in the motor windings is reduced, which is measurable as lower winding temperature rise at partial load — a relevant factor in continuous-duty textile and winding applications.

EMC Architecture: The module’s DC bus connections to the power rail use low-inductance busbars rather than flying leads, which suppresses common-mode voltage transients at the point of energy transfer. The motor output terminals incorporate an internal dV/dt filter network that limits the rate of voltage rise to the motor cable, reducing insulation stress on motors connected via cables longer than 30 m. This is not a passive LC filter but a resistor-capacitor snubber network integrated into the output stage, which avoids the resonance risk associated with external sine-wave filters in variable-speed applications.

Feedback Signal Conditioning: The feedback interface accepts differential encoder signals at line voltages of 5 VDC or 12 VDC and applies hardware hysteresis to the comparator inputs, which rejects common-mode noise injected by adjacent VFD switching on shared cable trays. For absolute encoder feedback (Stegmann Hi-resolution protocol), the module decodes the serial position word in hardware, not firmware, reducing latency in the position feedback path to under 10 µs — a measurable advantage in high-speed positioning loops where feedback latency directly limits achievable bandwidth.

Thermal Management: The 2094-BM05 uses a forced-air cooling channel shared with adjacent modules on the power rail. The internal NTC thermistor monitors heatsink temperature and reports it to the controller via the SERCOS status word, enabling the application program to implement predictive thermal derating before a hardware over-temperature fault occurs. This is a diagnostic transparency feature that distinguishes the Kinetix 6000 platform from drives that only report a binary fault state.

DC Bus Sharing Logic: When multiple 2094-BM05 modules share a DC bus with a single IAM, regenerative energy from decelerating axes is absorbed by the bus capacitor bank in the IAM and redistributed to accelerating axes within the same SERCOS cycle. The bus arbitration is passive — no active switching is required between modules — which means there is no single-point arbitration failure mode. The IAM’s shunt resistor activates only when the bus voltage exceeds the regeneration threshold and no other axis can absorb the energy, making the system inherently energy-efficient in multi-axis coordinated motion profiles.

System Integration Benefits

• Deterministic SERCOS II Synchronization: All axes on the ring exchange position commands and feedback data within a fixed 1 ms cycle, with jitter below 1 µs. This is a hardware-enforced timing guarantee, not a software scheduling approximation, which is the prerequisite for electronic gearing ratios that remain accurate at motor speeds above 3,000 RPM.
• Studio 5000 Native Integration: The 2094-BM05 is fully enumerated in the Studio 5000 Logix Designer device catalog. Axis configuration, tuning parameters, and fault masks are set within the controller project file, not on the drive itself, which eliminates the risk of parameter mismatch between the drive and the controller after a module replacement.
• Axis Fault Transparency: The module reports 32 distinct fault codes to the controller via the SERCOS status word, including over-current, over-temperature, feedback loss, and bus undervoltage. Each fault code maps to a specific bit in the axis fault attribute, allowing the application program to implement fault-specific recovery logic rather than a generic drive-fault handler.
• Scalable Axis Count: A single Kinetix 6000 power rail supports up to seven 2094-BM05 modules behind one IAM, allowing the axis count to be expanded by adding modules without rewiring the AC input or replacing the IAM, provided the IAM’s continuous current rating is not exceeded.
• Mixed Feedback Topology: Within the same SERCOS ring, individual 2094-BM05 modules can be configured for different feedback types — one axis with an absolute encoder for a master reference, adjacent axes with incremental encoders for follower axes — without requiring separate drive families or communication adapters.
• Integrated Motion Planner Compatibility: The module is compatible with the Logix motion planner’s coordinated motion instructions (MCCM, MCCD, MCTP), which execute multi-axis path interpolation in the controller and distribute per-axis torque commands to each 2094-BM05 at the SERCOS cycle rate. No external motion coordinator hardware is required.
• Predictive Maintenance Data: Heatsink temperature, bus voltage, output current RMS, and operating hours are accessible as controller tags via the SERCOS cyclic data channel. These values can be logged to a historian or evaluated in the application program to schedule preventive maintenance before a thermal or electrical fault occurs.
• Reduced Panel Wiring Complexity: Because the DC bus, control power, and SERCOS fiber are distributed via the power rail and ring topology, the inter-module wiring in a Kinetix 6000 cabinet is limited to motor power cables and feedback cables per axis. There are no inter-drive DC bus jumpers or analog reference wires, which reduces wiring labor and eliminates a class of field wiring errors.

Quality Assurance & Global Logistics

Every 2094-BM05 unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels. Units are inspected against Rockwell Automation factory label standards, including firmware revision sticker, date code format, and connector pin integrity. Functional verification — where the unit is powered and the SERCOS communication handshake is confirmed — is performed on units where test infrastructure permits. Each shipment includes a traceability record with the unit’s label scan and inspection checklist.

Shipping from Xiamen, China: In-stock units ship within 1–3 business days via DHL Express or FedEx International Priority. Transit time to Europe is typically 3–5 business days; to North America, 4–6 business days; to Southeast Asia, 2–3 business days. Sea freight consolidation is available for bulk orders of five or more units. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. HS Code 8537.10 applies to this product class.

Warranty: 12 months from shipment date against manufacturing defects. Dead-on-arrival units are replaced or refunded within 30 days of confirmed receipt. Warranty claims require photographic documentation of the unit label and the fault condition.
