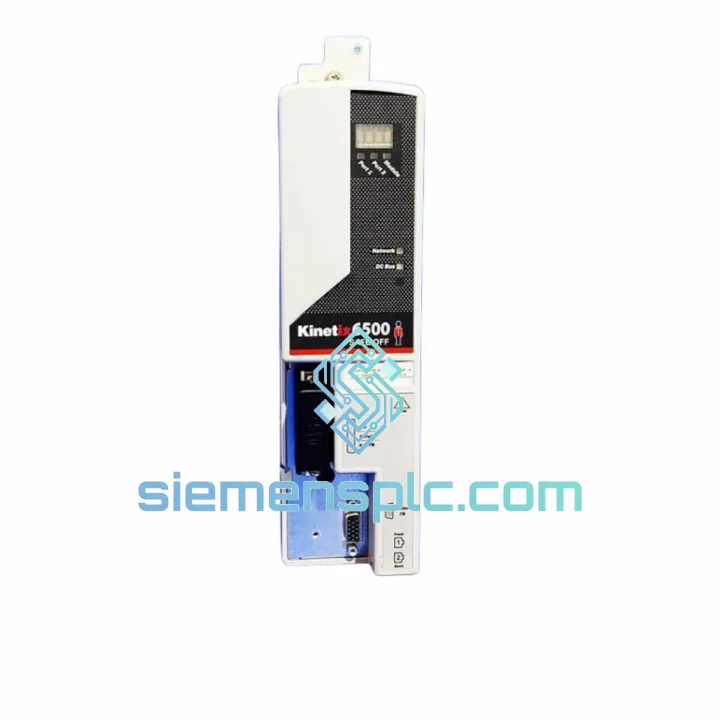

Allen-Bradley 2094-EN02D-M01-S0 Servo Drive Control Module – Kinetix 6500

2094-EN02D-M01-S0: Dual-Axis CIP Motion Control at the Core of Kinetix 6500 Architecture

The Allen-Bradley 2094-EN02D-M01-S0 is the dual-axis servo drive control module within Rockwell Automation’s Kinetix 6500 shared-bus platform. Its primary function in a motion control loop is to receive CIP Motion command frames from a ControlLogix or CompactLogix controller over standard EtherNet/IP, close the current regulation loop locally via an onboard DSP, and deliver precisely shaped torque output to two independent servo axes — all without a dedicated motion fieldbus. The module sits on the 2094-PRF shared-bus rail alongside the Integrated Axis Module (IAM), drawing rectified DC bus power from the IAM’s common rail while maintaining autonomous per-axis current control. This architecture decouples the power conversion stage from the motion intelligence layer, allowing axis count to scale by adding control modules without redesigning the power section.

In coordinated multi-axis applications — rotary indexing tables, gantry systems, electronic camming — the 2094-EN02D-M01-S0 participates in the controller’s motion group at a configurable Requested Packet Interval (RPI) of 1 ms to 4 ms. At each RPI boundary, the Logix controller transmits position, velocity, or torque references via CIP Motion I/O connections; the module’s DSP closes the inner current loop at a bandwidth well above the network update rate, returning actual position (from the feedback device), velocity estimate, drive status word, and fault codes back to the controller within the same EtherNet/IP cycle. This closed-loop transparency gives the Logix program full real-time visibility into axis state without polling secondary diagnostic registers.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus & DC Rail Architecture
The 2094-EN02D-M01-S0 does not carry its own rectifier or bulk capacitance. Instead, it connects to the IAM’s shared DC bus rail through a low-impedance blade connector on the 2094-PRF mounting rail. This topology allows regenerative energy from a decelerating axis on one control module to be absorbed directly by an accelerating axis on an adjacent module — without routing energy back through the AC mains. The practical result is measurable reduction in peak demand current from the supply transformer, particularly in applications with high-inertia loads and frequent direction reversals.

DSP-Based Current Loop Closure
The module’s onboard digital signal processor closes the torque (current) loop at a rate significantly higher than the EtherNet/IP RPI. The DSP samples the motor phase currents via shunt resistors or Hall-effect sensors, applies a field-oriented control (FOC) algorithm in the d-q reference frame, and outputs PWM gate signals to the IGBT bridge — all within a fixed interrupt period independent of network jitter. This separation of the current loop from the network layer means that EtherNet/IP packet latency variation does not propagate into torque ripple on the motor shaft.

EMC Design & Conducted Emission Suppression
The IGBT switching transitions generate high-frequency common-mode currents that, without mitigation, couple into motor cables and radiate as conducted emissions. The 2094-EN02D-M01-S0 addresses this through: (a) a common-mode choke on the motor output stage to attenuate high-frequency current paths; (b) a low-inductance ground plane on the control PCB to provide a defined return path for high-frequency currents back to the DC bus capacitance; and (c) shielded feedback cable termination at the module chassis, ensuring shield currents return to the drive ground rather than circulating through the machine frame. These measures support compliance with EN 55011 Class A conducted emission limits when installed per Rockwell’s published wiring guidelines.

Feedback Signal Conditioning
The module’s feedback interface accepts both single-ended incremental TTL signals and differential serial protocols (Hiperface, EnDat 2.1/2.2). For serial absolute encoders, the interface IC handles the synchronous serial communication at the encoder’s native clock rate, decodes the absolute position word, and presents it to the DSP as a 32-bit position value. The interpolation of sine/cosine tracks is performed in hardware, delivering sub-count resolution without burdening the DSP. This multi-protocol front-end eliminates the need for external feedback converter modules when integrating third-party servo motors with non-standard encoder types.

Hardwired Safety Circuit Independence
The STO function is implemented as a two-channel hardwired circuit (STO_A, STO_B) that directly gates the IGBT driver supply rails. When either channel is de-energised, the gate drive power is removed and the IGBTs cannot switch — motor torque collapses within the SIL 2 response time regardless of DSP or network state. This circuit is physically separate from the control PCB’s logic supply, so a firmware fault or EtherNet/IP communication loss cannot prevent STO from executing. The SS1 function adds a monitored deceleration ramp before STO activation, implemented via a hardwired timer circuit rather than software, preserving the safety integrity level.

System Integration Benefits

• Single-network commissioning: CIP Motion over standard EtherNet/IP eliminates the need for a separate motion fieldbus (SERCOS III, PROFIDRIVE), reducing switch port count, cable runs, and network configuration complexity in the control cabinet.
• Deterministic RPI scheduling: The Logix controller schedules CIP Motion I/O connections at a fixed RPI (1–4 ms), providing bounded worst-case latency for position and velocity reference delivery — a prerequisite for electronic gearing and camming applications.
• Transparent axis diagnostics: Drive fault codes, actual current, velocity, and position are returned to the controller as standard axis tags in Studio 5000, accessible in ladder logic, function block, or structured text without additional diagnostic polling routines.
• Add-On Profile (AOP) integration: The AOP pre-populates all axis parameters, motion task templates, and drive fault handlers in Studio 5000, reducing commissioning time compared to manual parameter entry in a drive keypad or separate configuration tool.
• Device Level Ring (DLR) fault tolerance: The integrated dual-port switch supports ring topology with sub-3 ms fault recovery, allowing the motion network to survive a single cable break without halting production — critical in long conveyor or multi-station transfer line installations.
• Shared DC bus energy recovery: Regenerative energy from braking axes is redistributed across the common DC rail to accelerating axes, reducing net energy drawn from the AC supply and lowering heat dissipation in the panel.
• Scalable axis count: Additional 2094-EN02D-M01-S0 modules mount on the same 2094-PRF rail without modifying the power section, provided the IAM’s DC bus current capacity is not exceeded — enabling incremental axis expansion during machine evolution.
• Integrated SIL 2 safety without external relays: Hardwired STO and SS1 on-module satisfy basic safe-stop requirements under Machinery Directive 2006/42/EC without adding a dedicated safety relay module, reducing BOM cost and panel wiring complexity.
• Multi-feedback motor compatibility: Support for Hiperface, EnDat, sine/cosine, and TTL incremental encoders allows the same control module to drive servo motors from multiple manufacturers, preserving design flexibility when motor sourcing changes.
• Logix program portability: Because axis configuration is stored in the Logix project file (not in the drive), replacing a failed module requires only hardware swap and AOP download — no re-entry of drive parameters at a keypad.

Quality Assurance & Global Logistics

Every 2094-EN02D-M01-S0 unit supplied by siemensplc.com is sourced as genuine Allen-Bradley / Rockwell Automation product. Part number suffix verification (-S0 vs. -S1) is performed against Rockwell’s published catalog data (publication 2094-UM001) prior to listing. Units undergo power-on self-test, EtherNet/IP enumeration verification, and firmware version confirmation before dispatch. Packaging follows anti-static and mechanical protection standards: anti-static bag, foam-lined carton, and a humidity indicator card for long-haul air or sea freight.

Shipments originate from our warehouse in Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide services. Standard air express transit times: 3–5 business days to Europe, 4–6 business days to North America, 2–4 business days to Southeast Asia. Sea freight consolidation is available for pallet quantities. All export documentation — commercial invoice, packing list, certificate of origin — is prepared to the destination country’s import requirements. EAR99 classification documentation is included where applicable. The 12-month warranty covers manufacturing defects and premature component failure under normal operating conditions as defined in Rockwell’s published environmental specifications.
